Product
Hardness 55 SBR black rubber sheeting roll
Polymer: Styrene Butadiene rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

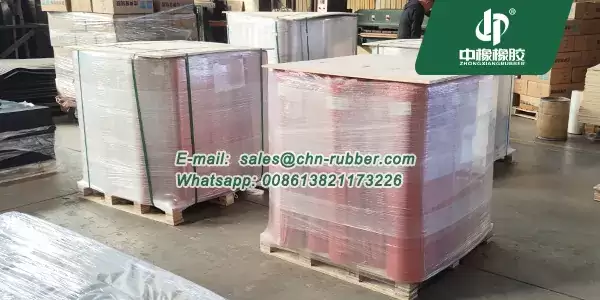

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
SBR Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101S-55 | 1.3g/cm³ | 55+/-5 Shore A | 8Mpa | 400% |
| Thickness | Width | Length | Insertion | Weigth |
| 1 | 1.2m | 10m | / | 12.48kgs/m² |
| 1.5 | 1.2m | 10m | / | 20.28kgs/m² |
| 1.7 | 1.2m | 10m | 1PLY | 23.40kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 28.08kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 43.68kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 59.28kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 74.88kgs/m² |
| 6 | 1.2m | 10m | 3PLY | 90.48kgs/m² |
| 8 | 1.2m | 10m | 4PLY | 121.68kgs/m² |
| 10 | 1.2m | 10m | 5PLY | 152.88kgs/m² |
| 12 | 1.2m | 10m | 8PLY | 187.20kgs/m² |
| 15 | 1.2m | 10m | 10PLY | 234kgs/m² |
| 30 | 1m | 2m | ≥10PLY | 78kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Black SBR rubber sheet comes with a Shore A hardness of 55 and a specific gravity of 1.30, offering enhanced softness and a lighter build for applications where flexibility and ease of handling are priorities. The lower density compared to heavier grades results in a more compliant surface, making it suitable for low-pressure sealing, cushioning layers, and protective linings that require a softer touch. Although SBR rubber does not offer resistance to oil, acids, or strong weathering, it remains a reliable option for indoor applications where mechanical wear and surface protection are more relevant than chemical exposure. The sheet delivers stable thickness, clean cutting edges, and consistent surface finish for general-purpose gasket fabrication and padding.
