Commercial 60 Durometer Neoprene Gasket Material
Inquiry about Model ZXZRS20101C: 60 Durometer Neoprene
Commercial Neoprene 60 Duro Features & Applications
Engineered for excellence, this commercial neoprene 60 duro solution provides an optimal balance of flexibility, strength, and environmental resistance.
Polymer: Neoprene rubber
Color: Black
Thickness: 1mm ~ 20mm
Hardness: neoprene durometer 60 (60±5 Shore A)
Standard Width: 1m, 1.2m, 1.4m, 1.5m, 1.6m, 1.8m, 2.0m
Standard Length: 5m, 10m, 15m, 20m (Custom dimensions available)

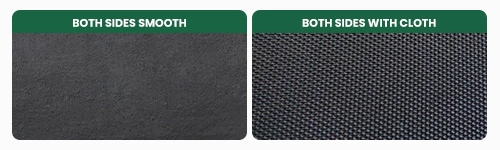

Surface: Both smooth, cloth-textured, or anti-slip options.
Customization & Features
Customizable Shapes: Roll / Sheet / Strip
Embedding Layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets. Color, logo, labels, or special markings can be customized upon request.
60 Durometer Neoprene Performance Parameters & Specification
Our high-grade 60 duro neoprene material is engineered for applications requiring reliable sealing, vibration dampening, and weather resilience.
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
|---|---|---|---|---|
| ZXZRS20101C-60 | 1.45g/cm³ | 60+/-5 Shore A | 4-5Mpa | 260% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 13.9kgs/roll |
| 1.5 | 1.2m | 10m | / | 22.62kgs/roll |
| 2 | 1.2m | 10m | 1PLY | 31.32kgs/roll |
| 3 | 1.2m | 10m | 1PLY | 48.72kgs/roll |
| 4 | 1.2m | 10m | 1PLY | 66.12kgs/roll |
| 5 | 1.2m | 10m | 2PLY | 83.52kgs/roll |
| 6 | 1.2m | 10m | 3PLY | 100.92kgs/roll |
| 8 | 1.2m | 5m | 4PLY | 67.86kgs/roll |
| 10 | 1.2m | 5m | 5PLY | 87kgs/roll |
| 12 | 1m | 10m | 8PLY | 174kgs/roll |
| 15 | 1m | 2m | 10PLY | 43.50kgs/pc |
| 20 | 1m | 2m | 10PLY | 58kgs/pc |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
 |
 |
Our versatile neoprene duro 60 rubber sheet is engineered for applications that require a balanced combination of flexibility, strength, and environmental resistance. With a Shore A hardness of 60 durometer neoprene, this material offers excellent resilience and compression recovery while maintaining sufficient firmness for sealing and load-bearing applications.
This reliable neoprene duro 60 sheet provides exceptional resistance to ozone, UV exposure, weathering, and moderate oils, making it ideal for both indoor and outdoor service in gaskets, vibration isolation pads, protective liners, and general industrial components.
