Product
Hardness 75 SBR rubber sheet roll 3mm
Polymer: Styrene Butadiene rubber

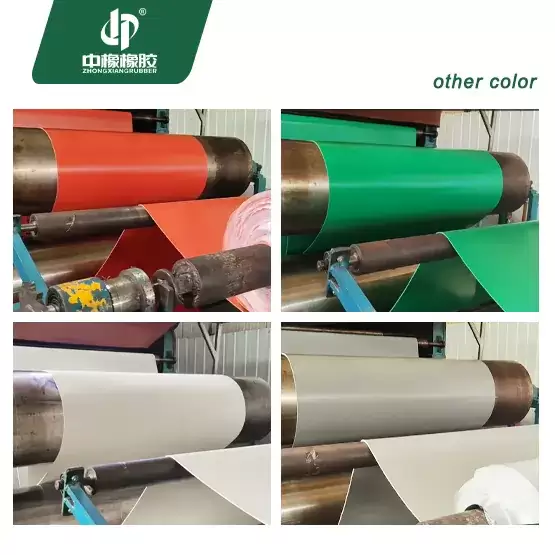

Color: Black; custom color
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
SBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101S-75 | 1.8 | 75+/-5 Shore A | 1.5 | --- |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 17.28kgs/m² |
| 1.5 | 1.2m | 10m | / | 28.08kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 38.88kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 60.48kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 82.08kgs/m² |
| 5 | 1.2m | 10m | 1PLY | 103.68kgs/m² |
| 6 | 1.2m | 10m | 1PLY | 125.28kgs/m² |
| 7 | 1.2m | 10m | 2PLY | 146.88kgs/m² |
| 8 | 1.2m | 10m | 3PLY | 168.48kgs/m² |
| 10 | 1.2m | 10m | 5PLY | 96kgs/m² |
| 12 | 1.2m | 10m | 8PLY | 259.20kgs/m² |
| 15 | 1.2m | 10m | 10PLY | 324kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
75 Shore A hardness, this rubber gasket sheet 3mm material delivers higher surface stiffness, making it a preferred choice in setups requiring shape retention under pressure. It remains stable during repeated use in workshop floors, equipment bases, or as a protective barrier between components. While not designed for contact with oil or harsh chemicals, the material performs well where dimensional accuracy, clean cuts, and controlled compression are essential. Its dense composition supports steady mechanical response without curling or edge distortion. Manufactured in compliance with ASTM standards and certified by SGS, REACH, and RoHS2.0.
Key Features
75 Shore A hardness for firm support and compression resistance
Rubber gasket sheet 3mm thickness ideal for standard gasket and padding uses
Maintains shape in low-impact, equipment-based environments
Smooth cutting behavior with minimal edge deformation
