Hardness 70 Black FKM Viton rubber sheet 2.0 gravity
High-Performance FKM Rubber Sheet & Fluoroelastomer Sheet
Polymer Compound: High-Purity Fluorocarbon Elastomer (FKM / Fluoroelastomer)
Standard Color: Industrial High-Density Black (Custom Brown, Green, or Red available on request)
Thickness Range: 1.0mm to 50mm (Continuous rolls for 1mm–15mm; heavy slab sheets for >15mm)
Standard Roll Widths: 1.0m, 1.2m, 1.4m, 1.5m, 1.6m, 1.8m, 2.0m (Continuous lengths: 5m, 10m, 15m, 20m)
Surface Finish: Dual-Sided Polished Smooth / Cloth Impression Finish
Supply Formats: Continuous Rolls, Pre-Cut Sheets, Precision Slit Strips, Custom Die-Cut Gaskets
Export Packaging: Inner protective PE film, outer woven PP bags, and heat-treated export wooden pallets.
FKM Rubber Sheet & Fluoroelastomer Sheet Technical Specifications
| Product Code | Specific Gravity | Hardness Range | Tensile Strength | Elongation at Break |
|---|---|---|---|---|
| ZXZRS20101V-70 | 2.0 g/cm³ | 70 ± 5 Shore A | 7.0 - 8.0 MPa | ≥ 250% |
| Thickness (mm) | Width (m) | Length (m) | Fabric Insertion | Theoretical Weight |
|---|---|---|---|---|
| 1.0 | 1.0m | 10m | Non-inserted | 8kgs/roll |
| 1.5 | 1.0m | 10m | Non-inserted | 19.5kgs/roll |
| 2.0 | 1.0m | 10m | Optional 1-PLY | 36kgs/roll |
| 3.0 | 1.0m | 10m | Optional 1-PLY | 84kgs/roll |
| 5.0 | 1.0m | 10m | Optional 2-PLY | 96kgs/roll |
| 10.0 | 1.0m | 10m | Optional 5-PLY | 200kgs/roll |
| 12.0 | 1.0m | 1.0m / 5m | Custom Ply | 27kgs/pc |
1. Manufacturing Tolerances: All dimensions, weights, and physical properties adhere to standard industrial production tolerances (±5%).
2. Engineering Baseline: Values shown reflect typical laboratory test metrics under controlled standard conditions for material selection reference.
3. Custom Reinforcements: High-temperature Nomex, Fiberglass, or Kevlar fabric insertions can be custom-compounded for extreme pressure environments.
4. Weight Calculation: Weights listed are theoretical values based on standard 2.0 g/cm³ specific gravity. Actual finished roll weights may vary depending on dimensional cut tolerances.
Product Gallery & Material Surface Finish

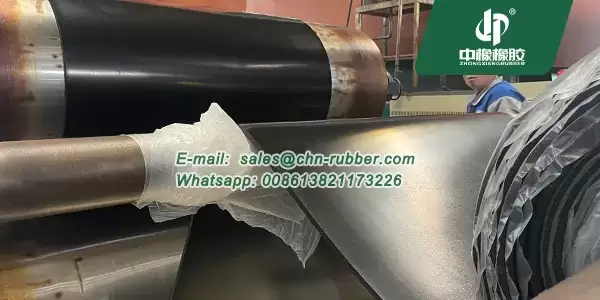

Figure 1: Smooth dual-sided surface finish on 100% virgin FKM rubber sheet roll.

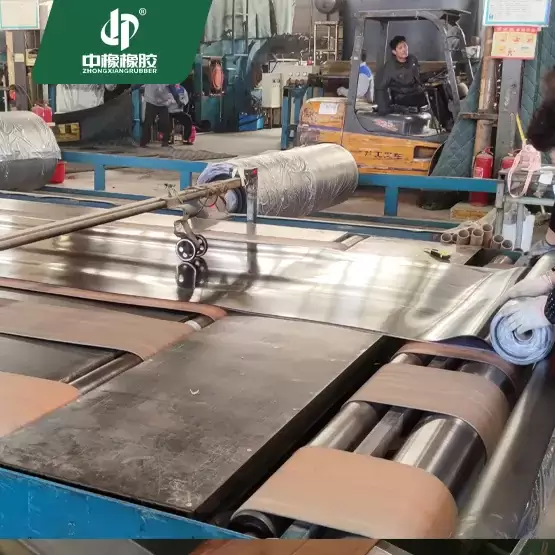

Figure 2: Precision-calendered fluoroelastomer sheet material engineered for extreme chemical exposure.

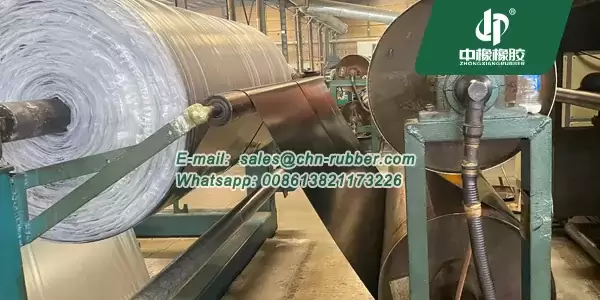

Figure 3: High-density FKM rubber roll stock ready for export slitting and die-cutting.

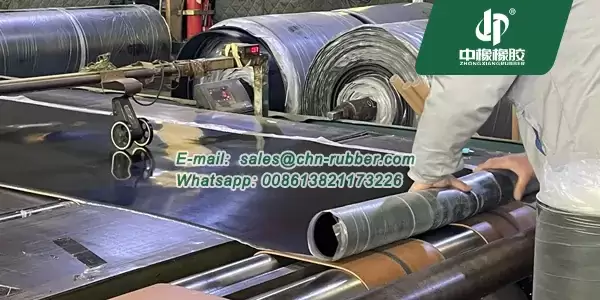

Figure 4: Custom slit fluoroelastomer sheet strips prepared for high-temperature flange gaskets.
Premium FKM Rubber Sheet & Fluoroelastomer Sheet Sealing Solutions
Fluoroelastomer (FKM) sheeting represents the pinnacle of synthetic elastomer engineering, specifically compounded to operate in severe industrial environments where conventional rubber polymers like Nitrile (NBR), EPDM, or Neoprene (CR) rapidly degrade. Manufactured from high-purity fluorocarbon rubber polymers, an fkm rubber sheet delivers extraordinary resistance to aggressive chemical media, continuous elevated operating temperatures, petroleum fuels, and atmospheric oxidation. Whether deployed in petrochemical refining facilities, aerospace powerplants, or heavy-duty industrial fluid handling systems, a premium fluoroelastomer sheet guarantees unmatched structural resilience, zero swelling, and long-term sealing integrity under extreme mechanical clamping stress.
Comprehensive Technical Breakdown & Polymer Engineering
The high density (specific gravity of 2.0 g/cm³) and standard 70 Shore A durometer hardness of our industrial fluoroelastomer sheet products offer an optimal balance between mechanical firmness and gasket surface sealability. Under heavy bolt torque and continuous flange loading, the material conforms smoothly to micro-imperfections on metallic flange faces while displaying superior resistance to compression set, cold flow, and creep deformation.
- Extended Temperature Stability: Maintains elastic recovery across a broad continuous operating thermal range from -20°C to +250°C (-4°F to +482°F), with short-term resistance against extreme thermal spikes reaching up to +300°C (+572°F).
- Tensile Performance & Tear Resistance: Formulated to deliver a minimum tensile strength of 7.0 to 8.0 MPa paired with an elongation at break exceeding 250%, enabling clean die-punching, CNC knife cutting, and waterjet converting without edge fracturing or tearing.
- Fluorine Content Compound Control: Engineered with a high fluorine content matrix (66% to 70% fluorine by weight), providing maximum molecular stability and complete immunity against chemical breakdown.
Broad Chemical Compatibility & Environmental Immunity
An industrial-grade fkm rubber sheet acts as an impenetrable barrier against a broad spectrum of volatile fluids, reactive chemicals, and harsh ambient factors. Unlike general-purpose elastomeric sheets that swell, soften, or embrittle when exposed to solvents, our high-fluorine fluoroelastomer sheet exhibits exceptional resistance against:
- Hydrocarbons & Petroleum Fuels: Unleaded gasoline, diesel fuel, aviation jet fuel, kerosene, aromatic hydrocarbons (benzene, toluene, xylene), and synthetic lubrication oils.
- Corrosive Acids & Strong Solvents: Concentrated sulfuric acid, hydrochloric acid, nitric acid, organic acids, chlorinated solvents, and industrial bleach solutions.
- Environmental Exposure: Solar UV radiation, intense atmospheric ozone, severe weathering, fungal attack, and high-vacuum processing environments.
Mission-Critical Applications Across Global Industries
Due to its uncompromising endurance in hostile operating environments, our fkm rubber sheet material is specified by global engineering firms across a wide range of heavy industries:
1. Petrochemical & Oil Refining: Pipe flange gaskets, heat exchanger seals, valve body liners, chemical tank hatch seals, and pump diaphragms handling hot hydrocarbon streams.
2. Aerospace & Automotive Engineering: Engine manifold gaskets, fuel injection system seals, turbocharger duct liners, firewall barriers, and transmission shaft seals exposed to hot synthetic oils.
3. Power Generation & Environmental Control: Expansion joint bladders, flue gas desulfurization (FGD) duct linings, power plant chimney gaskets, and transformer oil seals.
4. Chemical Processing & Pharmaceutical Equipment: Reactor vessel seals, fluid transfer hose liners, pump casing gaskets, and sterile processing barriers requiring non-contaminating chemical immunity.
5. Marine & Offshore Drilling Rig Equipment: Exhaust manifold gaskets, stern tube seals, deck equipment seals, and subsea hydraulic control valve packings exposed to saltwater and oil spray.
Custom Fabrication, Fiber Reinforcement & Converting Services
To support custom OEM requirements, we provide comprehensive secondary processing services for every fkm rubber sheet order. Master rolls can be slit into custom continuous strips starting from 15mm width up to 2.0m continuous sheets. For ultra-high pressure hydraulic applications, we supply multi-ply fabric-reinforced fluoroelastomer sheeting incorporating high-temperature Kevlar scrims to eliminate gasket blowout and extrusion under high pressure. Additionally, sheets can be factory-laminated with 3M high-temperature pressure-sensitive adhesive (PSA) for rapid peel-and-stick installation.
Strict Quality Assurance & Export Packaging
Every production batch of fluoroelastomer sheet undergoes rigorous quality control inspection at our ISO-certified laboratory. We verify specific gravity, Shore A hardness, tensile strength, elongation, and heat-aging performance to ensure complete compliance with international standards. Finished rolls are wrapped in protective moisture-barrier film, packed in heavy-duty woven sacks, and secured on fumigated wooden pallets to ensure safe transit to ports worldwide.
Direct Factory Quotes & Technical Support
Get in touch with our technical sales team for physical sample swatches, custom gasket die-cutting inquiries, or wholesale factory pricing on fkm rubber sheet rolls and custom cut panels:
