Product
Hardness 75 SBR black insertion rubber sheet roll
Polymer: Styrene Butadiene rubber
Color: Black
Thickness: 3mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

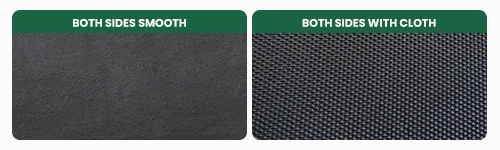

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

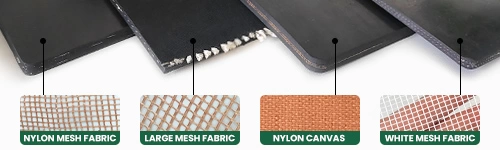

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Fabric Reinforced Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20109F-75 | 1.7+/-0.05g/cm³ | 75+/-5 Shore A | 2-2.5Mpa | 160% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 5m | / | 10.2kgs/m² |
| 1.5 | 1.5m | 5m | / | 16.58kgs/m² |
| 1.7 | 1.5m | 5m | 1PLY | 20kgs/m² |
| 2 | 1.5m | 5m | 1PLY | 22.95kgs/m² |
| 3 | 1.5m | 5m | 1PLY | 35.7kgs/m² |
| 4 | 1.5m | 5m | 1PLY | 48.45kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 61.2kgs/m² |
| 6 | 1.5m | 5m | 3PLY | 73.95kgs/m² |
| 8 | 1.5m | 5m | 4PLY | 99.45kgs/m² |
| 10 | 1.5m | 5m | 5PLY | 127.5kgs/m² |
| 12 | 1m | 2m | 8PLY | 40.8kgs/m² |
| 15 | 1m | 2m | 10PLY | 51kgs/m² |
| 25 | 1m | 2m | 10PLY | 85kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Fabric reinforced rubber sheet material is made from high-strength SBR compound and strengthened with a single ply of industrial-grade fabric for superior dimensional stability and tear resistance. With a hardness of 75 Shore A and a density of 1.7 g/cm³, this material is engineered for use in sealing, flooring, and mechanical protection applications where rubber alone would deform under stress.
The embedded textile reinforcement significantly improves tensile strength and tear resistance, making it ideal for heavy-duty applications in workshops, construction, transport pads, and machinery linings. This reinforced rubber sheet material performs well in environments subject to constant pressure, shearing, and impact.
Manufactured in a standard insertion rubber sheet 3mm thickness, it can also be customized to meet various project requirements. The surface maintains moderate flexibility while resisting cracking, tearing, and deformation under load. Reinforced rubber sheet material offers a reliable solution where durability and controlled elongation are required. Available in rolls for efficient processing and installation.
