Product

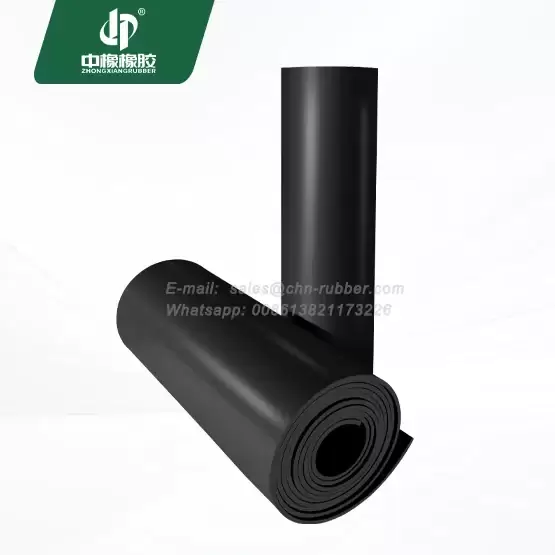

Hardness 65 SBR rubber sheeting 3mm thick
Polymer: Styrene Butadiene rubber
Color: Black
Thickness: 3mm

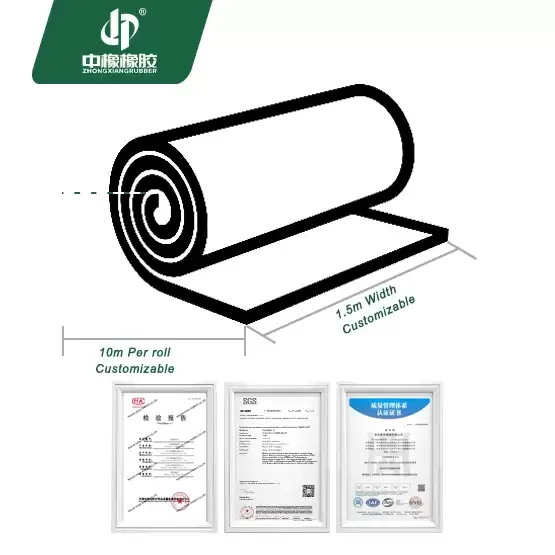

Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

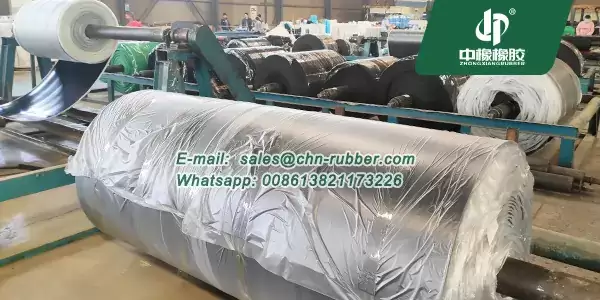

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
SBR Rubber Sheeting Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101S-65 | 1.5g/cm³ | 65+/-5 Shore A | 3-4Mpa | 200% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 18kgs/m² |
| 1.5 | 1.5m | 10m | / | 29.25kgs/m² |
| 1.7 | 1.5m | 10m | 1PLY | 33.75kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 40.5kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 63kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 85.5kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 108kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 130.5kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 175.5kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 220.5kgs/m² |
| 12 | 1.5m | 10m | 8PLY | 265.5kgs/m² |
| 15 | 1.5m | 10m | 10PLY | 337.5kgs/m² |
| 20 | 1m | 2m | ≥10 | 60kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
SBR rubber sheeting crafted from styrene-butadiene rubber, designed for flexible use across industrial environments. It’s an economical choice for sealing, padding, and lining tasks where oil and chemical resistance are not required.provides dependable mechanical strength and consistent surface finish. The material performs reliably in low-impact, indoor environments, making it a common option in factories, repair shops, and production lines.
The sbr rubber sheeting is easy to cut, shape, and install, with stable dimensional accuracy and moderate resilience. It offers reliable function for applications where general protection and sealing are needed without exposure to aggressive fluids or weather.
Key Features:
Clean, uniform sbr sheet for multipurpose use
Ideal for cutting into gaskets, pads, or liners
Smooth surface texture for precision fitting
Not intended for oil, acid, alkali, or outdoor conditions
Widely used in light industrial and mechanical applications
