Product
Hardness 60 NBR 30% 50% 70% 100% oil resistant rubber sheet
Polymer: Nitrile rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

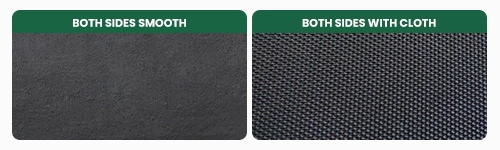

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

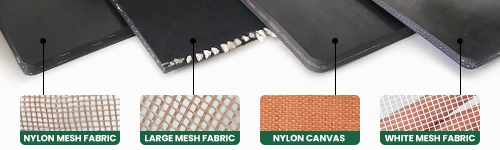

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Oil Resistant Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20011OR-PC30% | 1.5g/cm³ | 60+/-5 Shore A | 5Mpa | 280% |
| ZXZRS20011OR-PC50% | 1.4g/cm³ | 60+/-5 Shore A | 6Mpa | 320% |
| ZXZRS20011OR-PC70% | 1.35g/cm³ | 60+/-5 Shore A | 8Mpa | 380% |
| ZXZRS20011OR-PC100% | 1.3g/cm³ | 60+/-5 Shore A | 9-10Mpa | 450% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 12.48kgs/m² |
| 1.5 | 1.2m | 10m | / | 15.6kgs/m² |
| 1.7 | 1.2m | 10m | 1PLY | 23.4kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 28.08kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 43.68kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 59.28kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 74.88kgs/m² |
| 6 | 1.2m | 10m | 3PLY | 90.48kgs/m² |
| 8 | 1.2m | 10m | 4PLY | 121.68kgs/m² |
| 10 | 1m | 2m | 5PLY | 26kgs/m² |
| 12 | 1m | 2m | 8PLY | 31.2kgs/m² |
| 15 | 1m | 2m | 10PLY | 39kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 52kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 65kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Oil Reistance Properties
| Polymer content | ZXZRS20011OR-PC20% | ZXZRS20011OR-PC30% | ZXZRS20011OR-PC50% | ZXZRS20011OR-PC70% | ZXZRS20011OR-PC100% |
| Lubricating Oils | Regular | Regular | Regular | Excellent | Excellent |
| Vegitable Oil | Regular | Regular | --- | Excellent | Excellent |
| Animal Oil | Regular | Regular | --- | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Oil resistant rubber sheet manufactured by Tianjin China Rubber Co.,Ltd is formulated with nitrile butadiene rubber (NBR) to ensure dependable resistance against petroleum-based oils, lubricants, and greases. This product is available in NBR content levels of 30%, 50%, 70%, and 100%, allowing precise selection for varying exposure conditions.
With a density of 1.5 g/cm³ and a hardness rating of 60 Shore A, the material provides both flexibility and mechanical stability, making it suitable for sealing and protective applications in automotive, refinery, and industrial environments. Oil resistant rubber sheet maintains structural integrity when exposed to oil contact, reducing swelling and degradation over time. Whether used as a gasket material, lining, or surface pad, the sheet delivers long-term reliability under continuous operation.
Tianjin China Rubber Co.,Ltd ensures consistent performance across all oil resistance grades. The material resists cracking, absorbs minimal fluid, and offers excellent rebound and elongation under mechanical load. The higher the NBR content level, the greater the compatibility with aggressive oil environments. All formulations of this oil resistant rubber sheet are tested for tensile strength, elongation, and volume change after oil immersion, ensuring the appropriate grade matches operational requirements.
