Product
75Shore A red gasket SBR rubber sheet
Polymer: Styrene Butadiene rubber
Color: Red
Specification: 1mm/2mm/3mm/5mm/6mm/8mm x 1.2/1.5/2m x 10/15m Per roll
Custom dimensions available upon request.

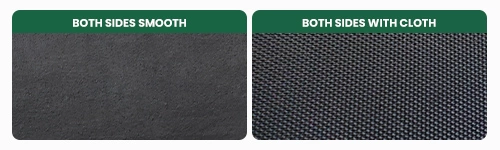

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

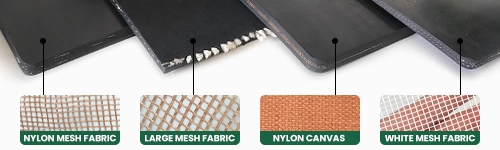

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Red SBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20201S-70 | 1.7g/cm³ | 75+/-5 Shore A | 2-2.5Mpa | 180% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 20.4kgs/m² |
| 1.5 | 1.5m | 10m | / | 33.15kgs/m² |
| 1.7 | 1.5m | 10m | 1PLY | 38.25kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 45.9kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 71.4kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 96.9kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 122.4kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 147.9kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 198.9kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 249.9kgs/m² |
| 12 | 1.5m | 10m | 8PLY | 306kgs/m² |
| 15 | 1m | 2m | 10PLY | 52kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 68kgs/m² |
| 30 | 1m | 2m | ≥10PLY | 102kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
SBR red gasket material – the industry's trusted, economical choice for low-pressure, non-oil sealing applications. Manufactured from premium-grade SBR, this vibrant red sheet offers excellent flexibility, conformability, and durability, making it perfect for uneven flange surfaces in plumbing, HVAC, water systems, and general industrial use.
Common Applications:
- Water supply & drainage pipelines
- HVAC systems, pumps, valves, and flanges
- Low-pressure steam lines
- General industrial equipment requiring reliable, cost-effective sealing
Important Note: Not suitable for oils, fuels, solvents, hydrocarbons, or high-temperature/chemical environments. For superior oil, heat, or chemical resistance, explore our premium alternatives like EPDM, NBR, Neoprene, or Viton®.
Backed by Tianjin China Rubber's commitment to quality and fast delivery, our Red Gasket Material delivers outstanding value and performance for everyday sealing needs.
