Gasket & Cutting Materials
Precision Gasket Rubber Roll & Fabrication Materials
Supporting global gasket fabricators with 20+ years of manufacturing expertise. From standard SBR to specialized FDA rubber, our materials are tested to survive rigorous industrial environments and meet international compliance.
Choosing the Right Rubber Gasket Material
SBR (Standard Grade)
The most cost-effective gasket material sheets for high-volume fabrication of general-purpose flange gaskets and washers.
NBR (Nitrile)
Oil & fuel resistant rubber gasket material. Engineered for demanding environments requiring superior oil-proof performance.
EPDM (Weather-proof)
Superior ozone and UV resistance. Our EPDM gasket rubber roll maintains structural integrity under extreme outdoor environments.
CR (Neoprene)
Excellent all-rounder with flame retardancy. Preferred for gasket material sheets requiring precision adhesive (PSA) backing.
FDA White Rubber
Non-toxic, odorless food-grade rubber gasket material. Fully compliant with FDA standards for beverage and pharma sealing.
Silicone (High-Temp)
Stable up to 200°C. Our silicone gasket rubber roll is perfect for laser-cut precision gaskets in medical and electronic sectors.
Product Showcase
Premium Rubber Rolls

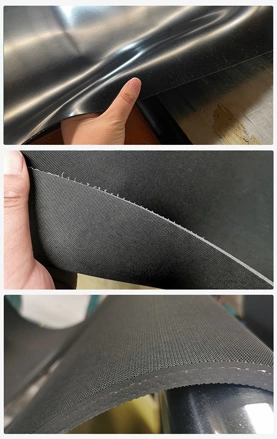

Custom Surface Finishes

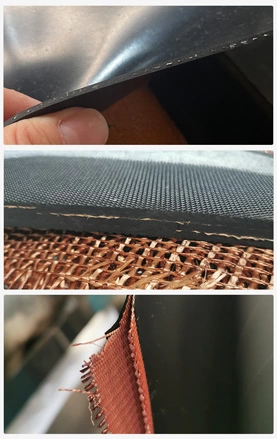

Cloth Inserted Options

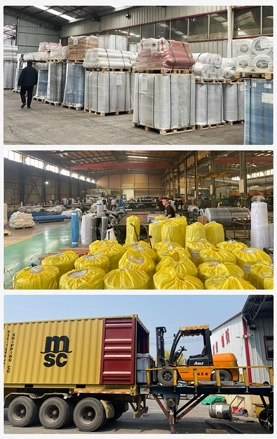

Factory Production
Bulk Gasket Rubber Roll Specifications
| Thickness (mm) | Width Range (m) | Roll Length (m) | Surface Finish | Insertion Options |
|---|---|---|---|---|
| 1.0mm - 2.0mm | 1.0 / 1.2 / 1.5 / 2.0 | 10 / 15 / 20 | Smooth / Double-sided Texture / Single-sided Texture | 2mm is ok |
| 3.0mm - 10.0mm | 1.0 / 1.2 / 1.5 / 2.0 | 5 / 10 / 15 / 20 | 1-ply ~ 5-ply Fabric | |
| 12.0mm - 50.0mm | 1.0 / 1.2 / 2.0 | Custom-made roll or supplied as sheets | 8-ply ~ 10-ply Fabric |
Material Performance Comparison
| Properties | SBR | NBR | EPDM | CR | FDA White | Silicone |
|---|---|---|---|---|---|---|
| Oil Resistance | Poor | Excellent | Regular | Regular | Regular | Regular |
| UV & Ozone | Poor | Regular | Excellent | Good | Regular | Excellent |
| Acid- and Alkali-Resistant | Poor | Regular | Regular | Excellent | Regular | Regular |
| Temp. Range | -20~70°C | -35~100°C | -35~100°C | -30~100°C | -30~100°C | -20 ~ 200℃ |
Need a Reliable Gasket Material Supplier?
Contact our technical team for custom specifications and parameters, and high-precision samples.
REQUEST A QUOTE TODAY
