Product
Hardness 70 SBR red rubber sheet roll
Polymer: Styrene Butadiene rubber
Color: Red
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.

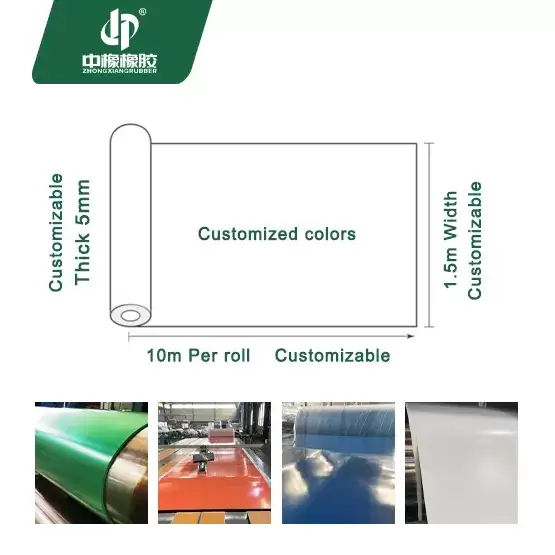

Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Red SBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20201S-70 | 1.6g/cm³ | 70+/-5 Shore A | 2.5-3Mpa | 180% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 19.2kgs/m² |
| 1.5 | 1.5m | 10m | / | 31.2kgs/m² |
| 1.7 | 1.5m | 10m | 1PLY | 36kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 43.2kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 67.2kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 91.2kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 115.2kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 139.2kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 187.2kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 235.2kgs/m² |
| 12 | 1.5m | 10m | 8PLY | 283.2kgs/m² |
| 15 | 1m | 2m | 10PLY | 48kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 64kgs/m² |
| 30 | 1m | 2m | ≥10PLY | 96kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
The red rubber gasket sheet is manufactured from SBR material, offering a consistent surface and reliable sealing performance for routine industrial applications. With a balanced blend of elasticity and tensile strength, this sheet is commonly used for flange gaskets, lining, and cushioning in settings where oil and chemical contact is not a concern. Its vivid red color enhances visibility during installation and inspection, making it suitable for use in fabrication environments where material identification is essential. The sheet cuts cleanly and holds its shape well in static sealing applications, maintaining long-term compression recovery without deformation under normal conditions.
This red rubber gasket sheet complies with ASTM standards and has passed SGS, REACH, and RoHS2.0 certifications, ensuring safety and quality in non-oil, non-corrosive use cases.
Key Features
Red SBR rubber sheet provides reliable sealing and cushioning in low-pressure, non-oil applications
Excellent tear resistance and tensile strength for mechanical gasket use
High-density formulation (1.60 g/cm³) ensures stable lay and reduced deformation over time
Uniform surface texture allows for accurate cutting and clean edges
Compatible with indoor industrial settings where visual identification and compression stability are important
