Hardness 75 SBR black rubber sheet roll

ZXZRS20101S

Black SBR rubber sheet features reliable strength and wear resistance, suitable for general sealing and padding in dry industrial environments. Meets ASTM standards; SGS, REACH, and RoHS2.0 certified.

Email Us Inquiry

Polymer: Styrene Butadiene rubber

Color: Black

Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.

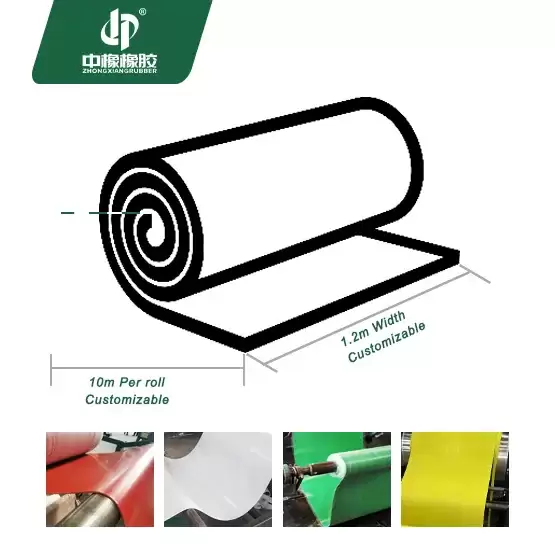

Standard Size:

Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

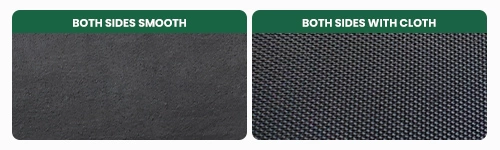

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.

Customizable Shapes: Roll / Sheet / Strip

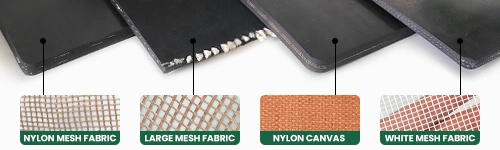

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

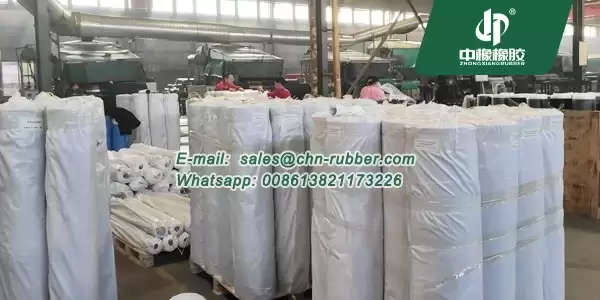

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.

SBR Sheet Performance Parameters & Specification

Code	Specific Gravity	Hardness	Tensile Strength	Elongation at Break
ZXZRS20101S-75	1.7g/cm³	75+/-5Shore A	2-2.5Mpa	160%
Thickness	Width	Length	Insertion	Weight
1	1.2m	10m	/	16.32kgs/m²
1.5	1.2m	10m	/	26.52kgs/m²
1.7	1.2m	10m	1PLY	30.6kgs/m²
2	1.2m	10m	1PLY	36.72kgs/m²
3	1.2m	10m	1PLY	57.12kgs/m²
4	1.2m	10m	1PLY	77.52kgs/m²
5	1.2m	10m	2PLY	97.92kgs/m²
6	1.2m	10m	3PLY	118.32kgs/m²
7	1.2m	10m	4PLY	138.72kgs/m²
8	1.2m	10m	5PLY	159.12kgs/m²
10	1.2m	10m	8PLY	199.92kgs/m²
12	1.2m	10m	10PLY	240.72kgs/m²
15	1.2m	10m	≥10PLY	301.92kgs/m²
20	1m	2m	≥10PLY	68kgs/m²
25	1m	2m	≥10PLY	85kgs/m²
30	1m	2m	≥10PLY	102kgs/m²

1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

SBR sheet is a versatile and economical rubber material designed for general-purpose industrial applications. Known for its high tensile strength, resilience, and wear resistance, this sheet performs well in dry, non-oily environments. It is commonly used for gasketing, cushioning, anti-vibration pads, and protective liners in workshops and machinery setups.

Made from styrene-butadiene rubber, each SBR sheet offers a consistent surface finish and stable performance under compression. It is easy to cut and fabricate, making it a practical choice for manufacturers and maintenance operations that require dependable sealing or padding without exposure to oils, chemicals, or outdoor weathering.
