Product
Hardness 70 Styrene Butadiene black rubber sheet roll
Polymer: Styrene Butadiene rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

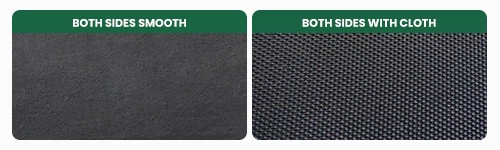

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

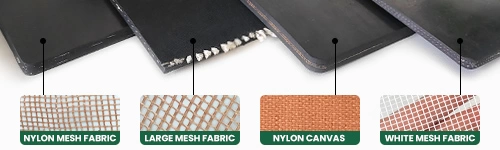

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

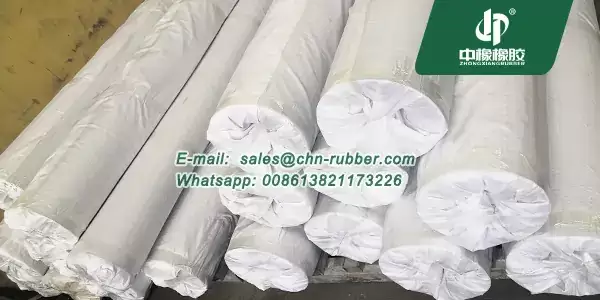

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
SBR Rubber Roll Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101S-70 | 1.6g/cm³ | 70+/-5 Shore A | 2.5-3Mpa | 180% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 19.2kgs/m² |
| 1.5 | 1.5m | 10m | / | 31.2kgs/m² |
| 1.7 | 1.5m | 10m | 1PLY | 36kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 43.2kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 67.2 kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 91.2kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 115.2kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 139.2kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 187.2kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 235.2kgs/m² |
| 15 | 1.5m | 10m | 10PLY | 355.2kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 64kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 80kgs/m² |
| 30 | 1m | 2m | ≥10PLY | 96kgs/m² |
| 35 | 1m | 2m | ≥10PLY | 112kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
SBR rubber roll is a durable and cost-efficient solution for general-purpose applications that require flexibility, cushioning, and protection. Manufactured from styrene-butadiene rubber, it offers reliable physical strength and resistance to abrasion, making it ideal for use as sheet rubber gasket material in indoor, dry industrial environments. Each roll delivers consistent surface quality and thickness, making it suitable for custom cutting into pads, liners, or seals. The sbr rubber roll is especially popular in workshops, mechanical maintenance, and equipment insulation tasks where oil or chemical exposure is not a concern.
Key Features:
Tough, flexible sbr sheet in roll form for versatile applications
Smooth surface and stable dimensions for easy fabrication
Ideal sheet rubber gasket material for dry, low-impact settings
Excellent wear resistance and compression recovery
Not intended for use with oil, ozone, or outdoor exposure
