Fabric-Faced Embossed Rubber Sheet | 2-Layer Textile Laminated Roll
Product Architecture: True 2-Layer Composite (1 Authentic Textile Fabric Surface Layer + 1 Dense Solid Rubber Base Layer)
Manufacturing Process: Continuous Rotocure Vulcanization Fusing (Textile layer permanently embedded into the rubber matrix under high pressure, guaranteeing zero delamination)
Base Elastomer Polymer: Heavy-Duty SBR/NR, NBR (Oil Resistant), EPDM (Weather Resistant), or CR (Neoprene)
Surface Finish Configuration: Single-sided integrated true fabric face / Opposite side is smooth solid rubber
Thickness Range: 3mm to 10mm (Combined total gauge including textile layer)
Standard Roll Dimensions:
Width: 1.0m, 1.2m, 1.4m, 1.5m, 1.6m, 2.0m
Length: 10m, 15m, 20m (Custom master log sizes manufactured for global contract distribution).
Export Logistics Packaging: Moisture-proof inner plastic film wrap, heavy-gauge outer woven PP jacketing, and robust export-grade wooden palletization. Supports private brand core labels and custom shipping marks for multi-port bulk buyers.

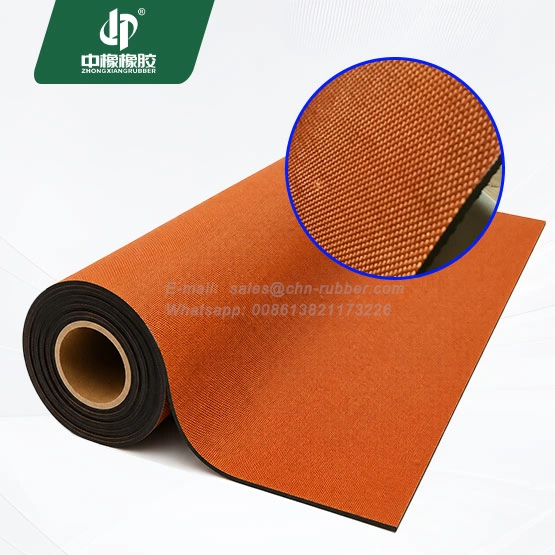

True Fabric-Faced Solid Rubber Sheet: Integrated 2-Layer Textile Lamination

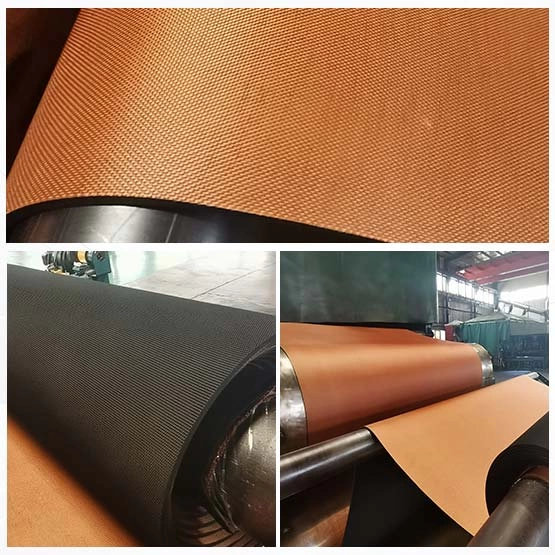

Our premium 2-layer composite embossed rubber sheet is engineered via a continuous Rotocure vulcanization press line. Unlike standard commercial sheets that only feature a molded or steel-roller engraved texture imitation, this industrial-grade material incorporates an authentic textile fabric layer permanently laminated onto a dense, solid rubber backing base. Under intense thermal vulcanization and mechanical pressure, the elastomer compound flows into the textile weave, creating an inseparable, highly wear-resistant surface matrix with maximum structural integrity.
For global industrial supply chains, procurement managers, and technical gasket converters, this real fabric-laminated construction provides exceptional mechanical advantages. The authentic cloth face delivers high physical friction, excellent anti-tear reinforcement, and a superior mechanical interlocking interface for secondary cold bonding or industrial adhesive applications. Simultaneously, the unreinforced 100% solid rubber base layer maintains complete elastomeric flexibility, low compression set, and uniform tracking when slit or die-cut into heavy-duty strips, pipeline wraps, or machinery skirts.
As a dedicated high-volume wholesale manufacturing factory, we enforce strict gauge controls across both the integrated fabric layer and the underlying solid rubber foundation. The clean, straight-trimmed salvage edges and flat lay-down properties ensure seamless secondary processing on automated CNC digital cutting tables, waterjet lines, or manual clicker presses. We distribute this specialty composite exclusively through Full Container Loads (FCL) and Less than Container Loads (LCL) to secure direct out-of-factory cost advantages for international import networks.
Fabric-Laminated Solid Rubber Material Properties & Technical Index
| Product Code | Base Rubber Density | Nominal Hardness | Tensile Strength | Elongation at Break |
|---|---|---|---|---|
| ZXZRS-ZQ Series | 1.50 g/cm³ | 65 +/-5 Shore A | 4 MPa | 200% |
Composite Roll Specifications & Theoretical Weight Matrix
| Total Gauge Thickness | Available Widths | Standard Roll Length | Structural Architecture Details | Theoretical Weight |
|---|---|---|---|---|
| 3.0 mm | 1.0m / 1.2m / 1.5m | 10m / 15m | Authentic Textile Face + Solid Rubber Base | ~ 45 kg/cm³ |
| 4.0 mm | 1.2m / 1.5m / 1.6m | 10m / 15m | Authentic Textile Face + Solid Rubber Base | ~ 68.4 kg/roll |
| 5.0 mm | 1.2m / 1.5m / 2.0m | 10m | Authentic Textile Face + Solid Rubber Base | ~ 86.4 kg/roll |
| 6.0 mm | 1.0m / 1.2m / 1.5m | 10m | Authentic Textile Face + Solid Rubber Base | ~ 87 kg/cm³ |
| 10.0 mm | 1.0m / 1.2m | 5m / 10m | Authentic Textile Face + Solid Rubber Base | ~ 75 kg/cm³ |
1. Total combined composite gauge and textile lamination thickness tolerances are managed within international factory calandering parameters (±).
2. Physical specification limit benchmarks are standard batch averages derived from our internal Rotocure testing lines.
3. Specialized chemical polymer selection (such as high-grade oil-resistant NBR or high-temp EPDM) can be programmed under direct contract volume agreements.
4. Theoretical mass weights are calculated using our standardized 1.50g/cm³ SBR rubber compound baseline. The weight contribution of the fused surface textile layer is fully included within the nominal values.
B2B Factory Export & Contract Terms
As a dedicated heavy-industry vulcanization factory, our production channels operate strictly on an industrial wholesale model. We cater exclusively to **volume distributors, industrial converters, commercial gasket manufacturing networks, and global maritime sourcing buyers**. Production scheduling requires standard factory Minimum Order Quantities (MOQ) or container load matrices to maintain highly competitive direct出厂价 (factory pricing tiers) for worldwide shipping.
* Strategic Boundary Disclaimer: Our engineering and manufacturing scope is focused entirely on raw material compounding, continuous fabric co-vulcanization, and volume master roll supply. We do not provide local engineering layouts, commercial chemical installation adhesives, on-site mechanical installation, or consumer-facing retail trade services.
