Product
Hardness 70 CR neoprene black rubber sheeting
Polymer: Neoprene rubber
Color: Black
Thickness: 5mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

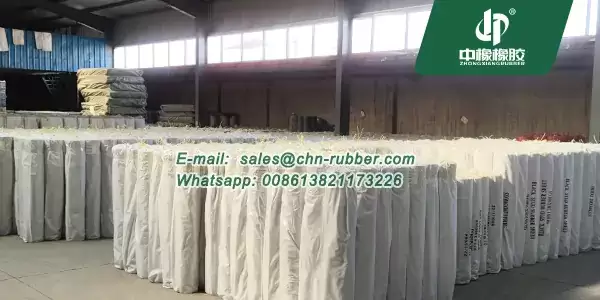

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
CR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101C-70 | 1.6g/cm³ | 70+/-5 Shore A | 2.5-3Mpa | 180% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 5m | / | 9.6kgs/m² |
| 1.5 | 1.5m | 5m | / | 15.6kgs/m² |
| 1.7 | 1.5m | 5m | 1PLY | 18kgs/m² |
| 2 | 1.5m | 5m | 1PLY | 21.6kgs/m² |
| 3 | 1.5m | 5m | 1PLY | 33.6kgs/m² |
| 4 | 1.5m | 5m | 1PLY | 45.6kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 92.16kgs/m² |
| 5 | 1.5m | 5m | 2PLY | 57.6kgs/m² |
| 5 | 1.6m | 10m | 2PLY | 122.88kgs/m² |
| 5 | 1.8m | 10m | 2PLY | 138.24kgs/m² |
| 5 | 2m | 10m | 2PLY | 153.6kgs/m² |
| 5 | 1m | 10m | 2PLY | 76.8kgs/m² |
| 6 | 1.5m | 5m | 3PLY | 69.6kgs/m² |
| 8 | 1.5m | 5m | 4PLY | 93.6kgs/m² |
| 10 | 1.5m | 5m | 5PLY | 117.6kgs/m² |
| 12 | 1m | 2m | 8PLY | 38.4kgs/m² |
| 15 | 1m | 2m | 10PLY | 48kgs/m² |
| 25 | 1m | 2m | 10PLY | 80kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical properties
| Polymer content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Regular | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Acids | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Excellent | Excellent |
| Vegitable Oil | Poor | Poor | Regular | Excellent | Excellent |
| Animal Oil | Poor | Poor | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.

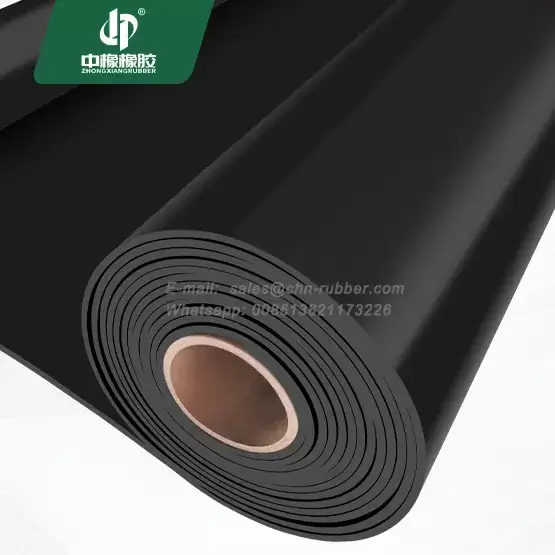

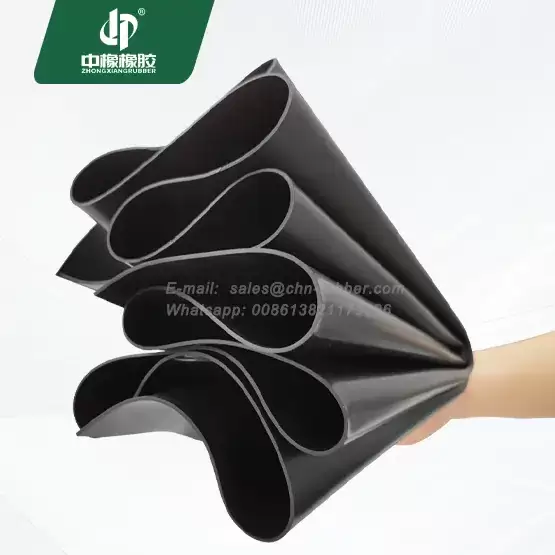

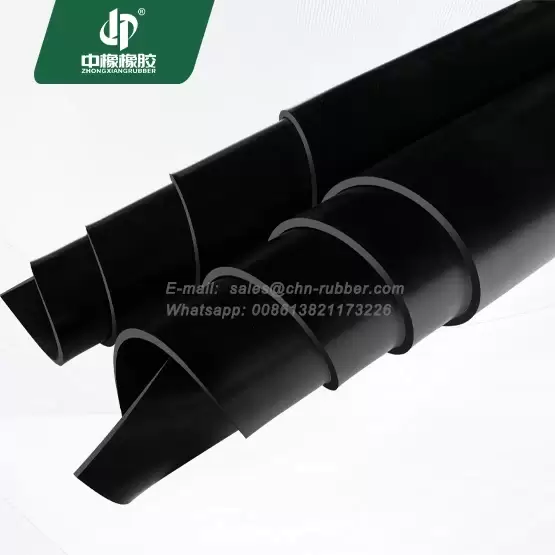

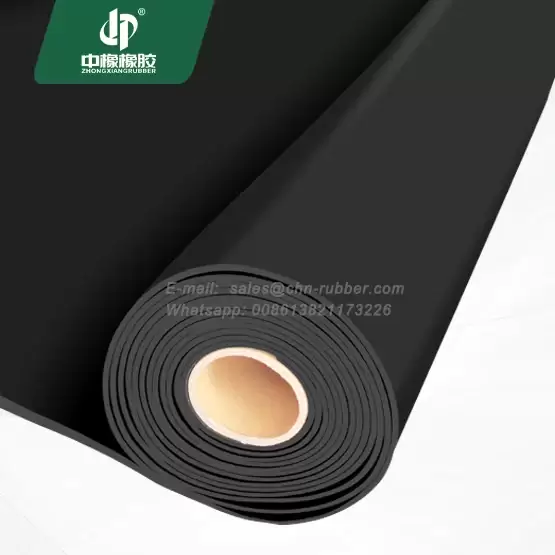

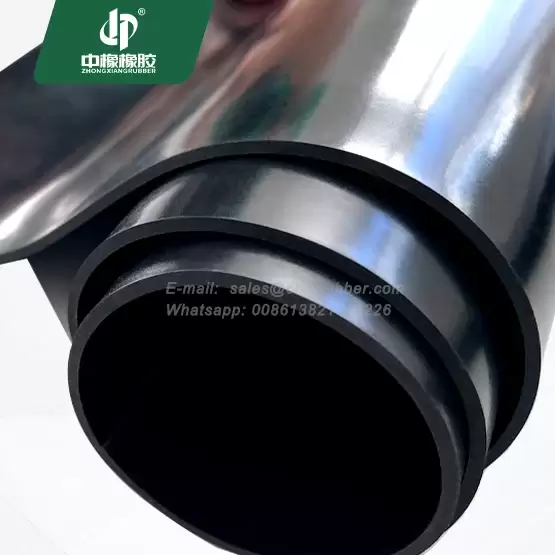

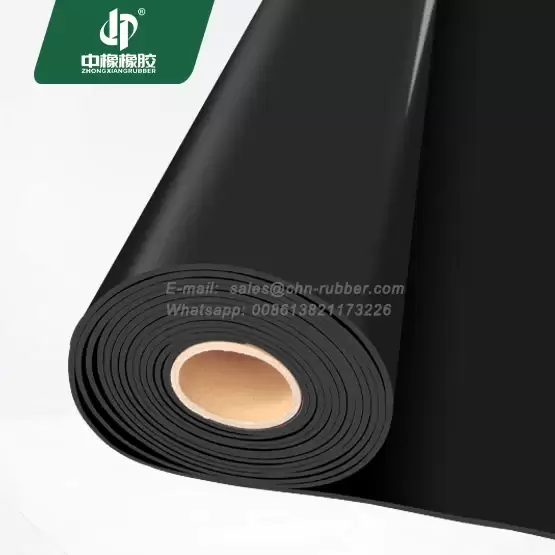

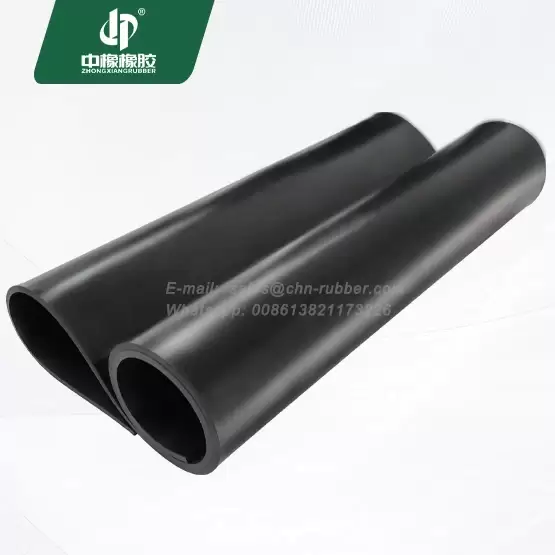

Black neoprene sheet 5mm is made from quality CR rubber sheet compound, with a specific gravity of 1.6 and Shore A hardness of 70. Compared to heavier variants, the lower density enhances overall material integrity by reducing filler content, offering a purer rubber structure that maintains elasticity and resilience under pressure. With a standard 5mm thickness, this neoprene sheet delivers reliable sealing and shock absorption in medium-load applications. It performs consistently in environments requiring moderate aging resistance, minor weather resistance, and stable mechanical properties. The smooth surface and uniform composition make it easy to cut into strips, pads, or custom gasket profiles.
Neoprene black neoprene sheet 5mm meets ASTM specifications and is certified by SGS, REACH, and RoHS 2.0, ensuring dependable quality for industrial use where a balanced combination of flexibility and structural strength is required.
