Product
Hardness 55 Black CR rubber sheeting roll 1.35 gravity
Polymer: Neoprene rubber
Color: Black
Thickness: 1.5mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
CR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101C-55 | 1.35g/cm³ | 55+/-5 Shore A | 6-7Mpa | 350% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 15m | / | 10.8kgs/m² |
| 1.5 | 1m | 15m | / | 17.55kgs/m² |
| 2 | 1m | 15m | 1PLY | 24.3kgs/m² |
| 3 | 1m | 15m | 1PLY | 37.8kgs/m² |
| 4 | 1m | 15m | 1PLY | 51.3kgs/m² |
| 5 | 1m | 15m | 2PLY | 64.8kgs/m² |
| 6 | 1m | 15m | 3PLY | 78.3kgs/m² |
| 8 | 1m | 15m | 4PLY | 105.3kgs/m² |
| 10 | 1m | 15m | 5PLY | 135kgs/m² |
| 12 | 1m | 2m | 6PLY | 32.4kgs/m² |
| 15 | 1m | 2m | 8PLY | 40.5kgs/m² |
| 20 | 1m | 2m | 10PLY | 54kgs/m² |
| 25 | 1m | 2m | 10PLY | 67.5kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Regular | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Acids | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Excellent | Excellent |
| Vegitable Oil | Poor | Poor | Regular | Excellent | Excellent |
| Animal Oil | Poor | Poor | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.

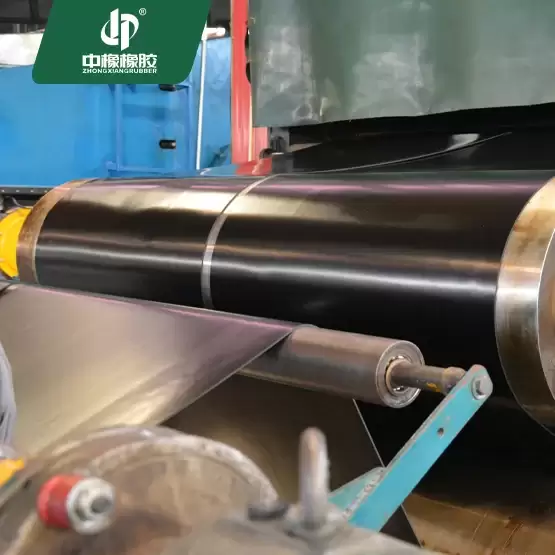

Neoprene rubber sheet 1/16 inch thick, manufactured with a specific gravity of 1.35 and Shore A hardness of 55, offers a soft, lightweight solution for cushioning and sealing needs. As a flexible material with good compressibility, it's well-suited for making gaskets, lining surfaces, and absorbing vibration in light-duty industrial environments. We supply this material as part of our standard neoprene rolls, ensuring easy transport, efficient storage, and convenient processing. Its lower density means users benefit from reduced material weight while maintaining consistent performance for insulation, light mechanical sealing, and padding applications.

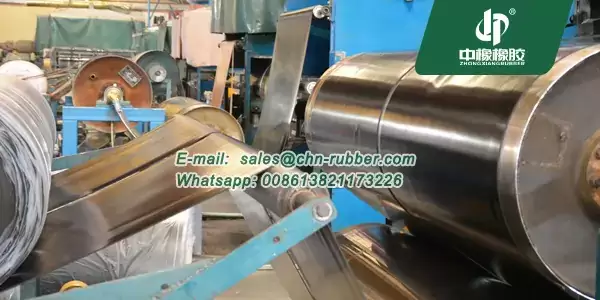

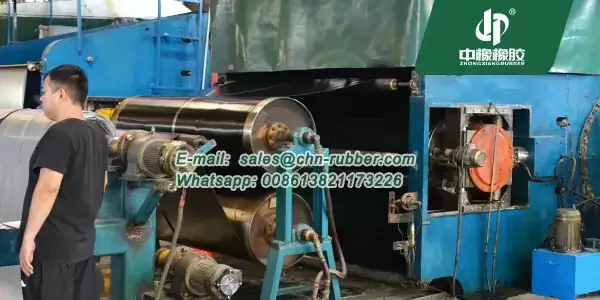

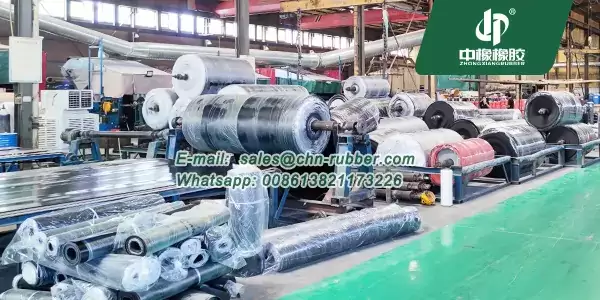

As a professional neoprene sheet factory, we maintain strict control over sheet uniformity and surface quality, allowing it to perform reliably in repeated-use or indoor applications. The neoprene sheet black finish ensures a neutral appearance for general use and blends well in automotive, electronic, and packaging applications. Clients sourcing from a trusted neoprene sheet factory often choose this material for CNC cutting, gasket punching, or trimming by hand. Whether rolled out as full neoprene rolls or cut into shapes, the neoprene rubber sheet 1/16 option delivers reliable flexibility without excess bulk. For industries needing consistent output from a neoprene sheet black surface with low hardness, this grade offers excellent handling and versatility.
