Product
Hardness 65 Neoprene black rubber sheet roll
Polymer: Neoprene rubber
Color: Black
Thickness: 3mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Neoprene Rubber Roll Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101C-65 | 1.5g/cm³ | 65+/-5 Shore A | 3-4Mpa | 200% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 10m | / | 12kgs/m² |
| 1.5 | 1m | 10m | / | 19.5kgs/m² |
| 1.7 | 1m | 10m | 1PLY | 22.5kgs/m² |
| 2 | 1m | 10m | 1PLY | 27kgs/m² |
| 3 | 1m | 10m | 1PLY | 42kgs/m² |
| 4 | 1m | 10m | 1PLY | 57kgs/m² |
| 5 | 1m | 10m | 2PLY | 72kgs/m² |
| 6 | 1m | 10m | 3PLY | 87kgs/m² |
| 8 | 1m | 10m | 4PLY | 117kgs/m² |
| 10 | 1m | 10m | 5PLY | 147kgs/m² |
| 12 | 1m | 2m | 8PLY | 36kgs/m² |
| 15 | 1m | 2m | 10PLY | 45kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 60kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 75kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Regular | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Acids | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Excellent | Excellent |
| Vegitable Oil | Poor | Poor | Regular | Excellent | Excellent |
| Animal Oil | Poor | Poor | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Manufactured for consistent flexibility and long-term resilience, 3mm neoprene rubber sheet is ideal for applications requiring moderate oil resistance and reliable cushioning. Neoprene rubber rolls maintains its shape under compression, making it a dependable choice for sealing, vibration isolation, and general-purpose gasketing. Produced in bulk neoprene rubber rolls, this neoprene gasket sheet features a uniform surface and clean cut edges that simplify processing and integration into industrial systems. The moderate hardness ensures stability without sacrificing adaptability, while the closed-cell structure minimizes water absorption.

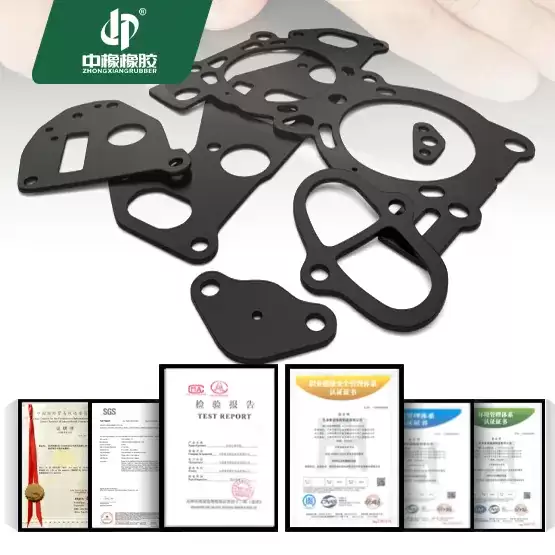

Whether used as a neoprene gasket sheet in HVAC systems or as a buffer layer in mechanical assemblies, this CR rubber material balances durability with ease of installation, particularly in environments exposed to mild oils, weather, and mechanical pressure.
