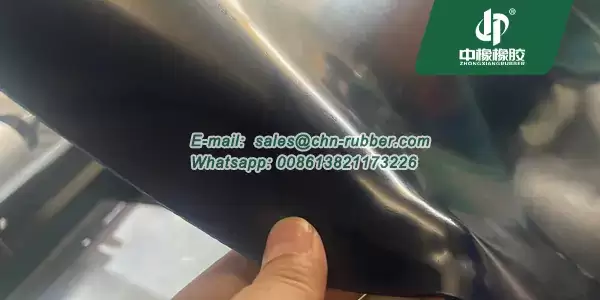

Hardness 55 1.3 S.G black rubber nbr material
Polymer: NBR rubber
Color: Black / Red / Green; Custom
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.

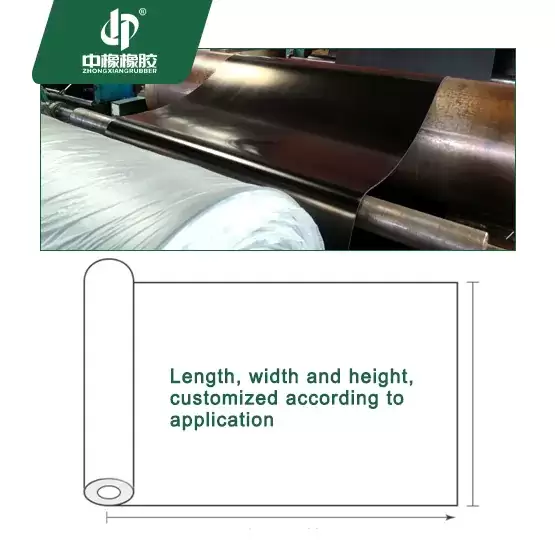

Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
NBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20001NI-55 | 1.3g/cm³ | 55+/-5 Shore A | 8Mpa | 400% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 15.6kgs/m² |
| 1.5 | 1.5m | 10m | / | 19.5kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 27kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 42kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 57kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 72kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 87kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 117kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 147kgs/m² |
| 12 | 1m | 2m | 8PLY | 31.2kgs/m² |
| 15 | 1m | 2m | 10PLY | 39kgs/m² |
| 20 | 1m | 2m | 10PLY | 52kgs/m² |
| 25 | 1m | 2m | 10PLY | 65kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Excellent | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Regular | Excellent |
| Diluted Acids | Regular | Regular | Regular | Regular | Regular |
| Diluted Alkali | Regular | Regular | Regular | Regular | Regular |
| Vegitable Oil | Regular | Regular | --- | Excellent | Excellent |
| Animal Oil | Regular | Regular | --- | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Manufactured with precision and a density of 1.3, this nitrile rubber sheet delivers effective oil resistance and mechanical performance in light- to medium-duty industrial settings. As a flexible and compressible rubber NBR material, it adapts easily to cutting and forming processes for gaskets, pads, and lining. With consistent 3mm thickness, it provides reliable sealing where moderate contact with petroleum-based oils and greases occurs. The sheet maintains good tensile strength and surface stability even under regular use.
