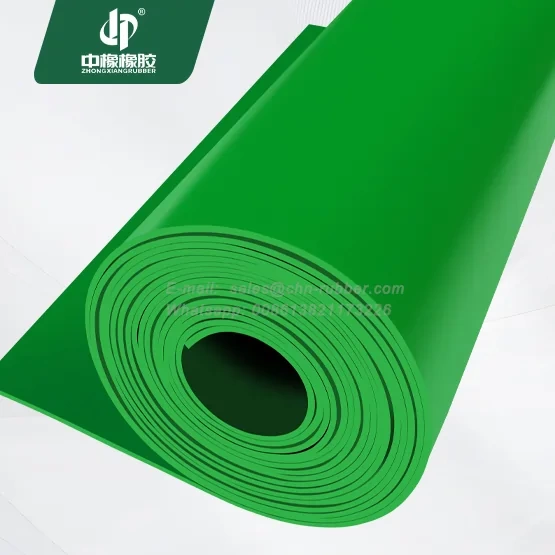

Nitrile green rubber sheet 1.7 specific gravity custom thickness
Polymer: NBR rubber
Color: Green
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.

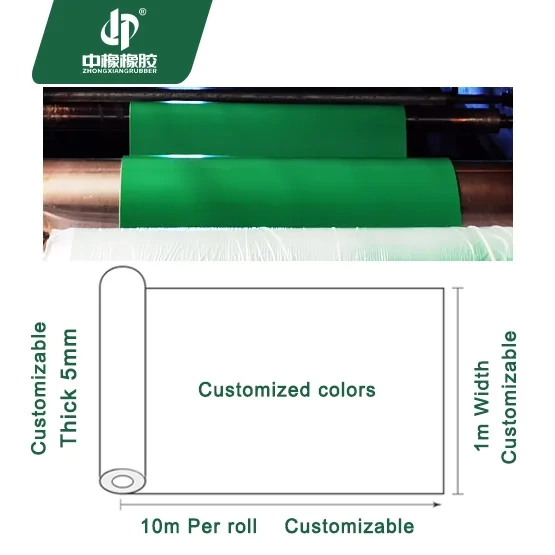

Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

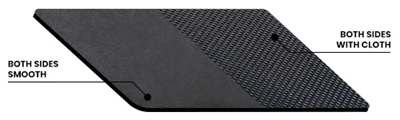

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

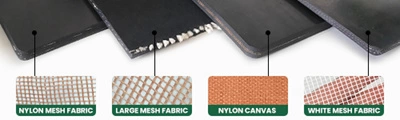

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

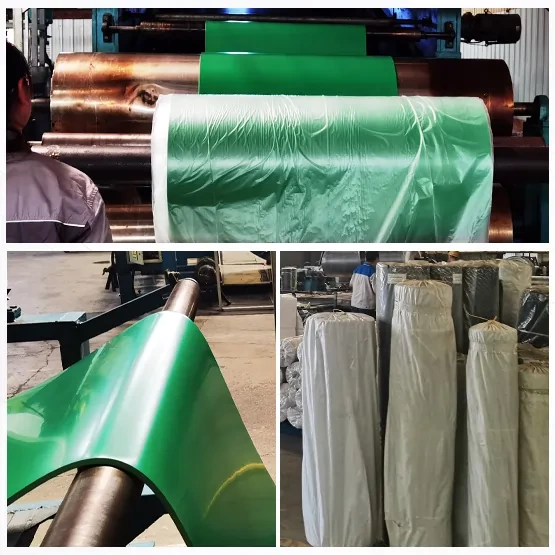

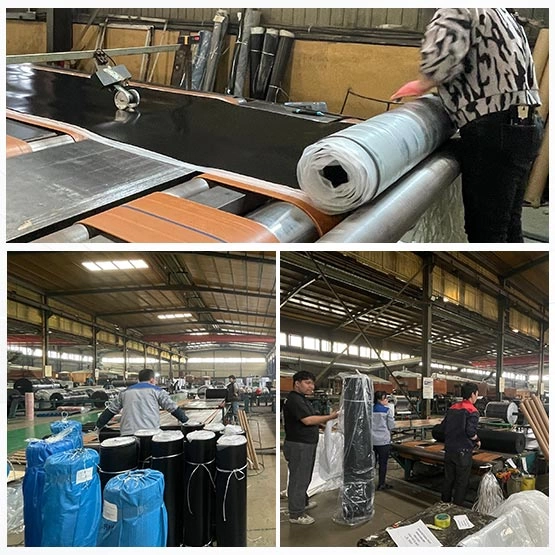

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
NBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20001C-75 | 1.7g/cm³ | 75+/-5 Shore A | 2-2.5Mpa | 160% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 20.4kgs/m² |
| 1.5 | 1.5m | 10m | / | 33.15kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 45.9kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 71.4kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 96.9kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 122.4kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 147.9kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 198.9kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 249.9kgs/m² |
| 12 | 1m | 2m | 8PLY | 40.8kgs/m² |
| 15 | 1m | 2m | 10PLY | 51kgs/m² |
| 20 | 1m | 2m | 10PLY | 68kgs/m² |
| 25 | 1m | 2m | 10PLY | 85kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Excellent | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Regular | Excellent |
| Diluted Acids | Regular | Regular | Regular | Regular | Regular |
| Diluted Alkali | Regular | Regular | Regular | Regular | Regular |
| Vegitable Oil | Regular | Regular | --- | Excellent | Excellent |
| Animal Oil | Regular | Regular | --- | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.

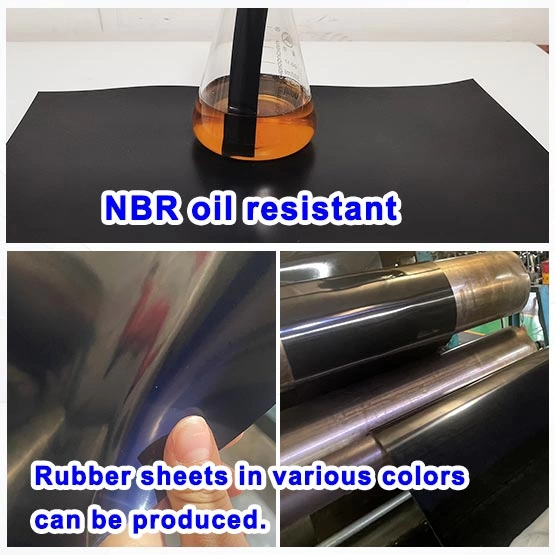

Green rubber sheet made from high-density NBR compound offers excellent oil resistance and mechanical strength, making it ideal for industrial sealing and lining applications. With a specific gravity of 1.7, the sheet is formulated to deliver superior wear resistance and tensile stability, even in environments exposed to lubricants, fuels, and mild chemicals.
Its deep green color provides a clear visual distinction for zone marking or product differentiation, especially useful in environments requiring color-coded safety or process control. The surface is smooth and uniform, allowing precise die-cutting for gaskets, pads, and protective linings. This nitrile rubber sheet is widely applied in machinery workshops, automotive service areas, and fuel storage facilities. It performs well across a moderate temperature range and supports prolonged exposure to oils without significant deformation.
