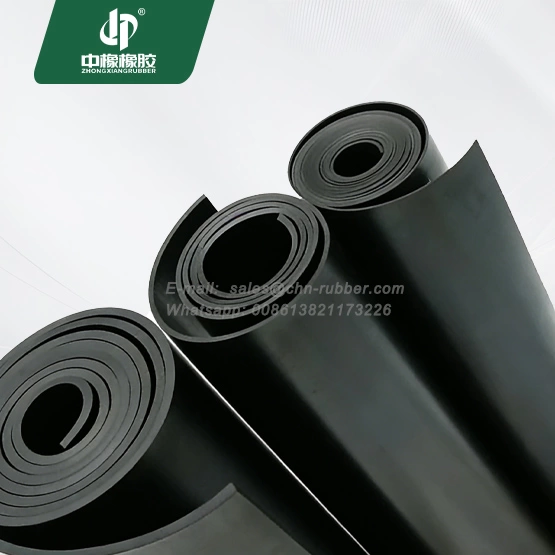

Hardness 60 High quality Buna N rubber sheet roll
Polymer: NBR rubber
Color: Black / Red / Green; Custom

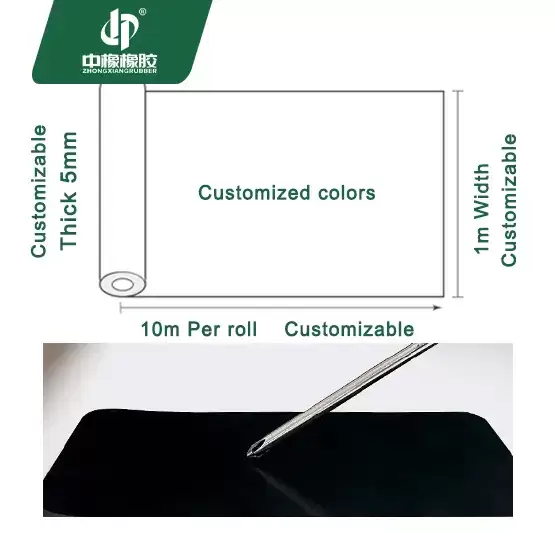

Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

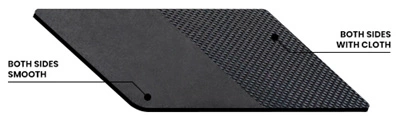

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

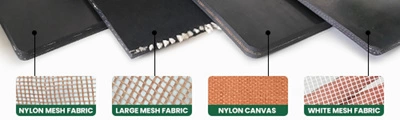

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
NBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20001NI-60 | 1.45g/cm³ | 60+/-5 Shore A | 4-5Mpa | 260% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 17.4kgs/m² |
| 1.5 | 1.5m | 10m | / | 28.28kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 39.15kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 60.9kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 82.65kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 104.4kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 126.15kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 169.65kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 217.5kgs/m² |
| 12 | 1m | 2m | 8PLY | 34.8kgs/m² |
| 15 | 1m | 2m | 10PLY | 43.5kgs/m² |
| 20 | 1m | 2m | 10PLY | 58kgs/m² |
| 25 | 1m | 2m | 10PLY | 72.5kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Excellent | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Regular | Excellent |
| Diluted Acids | Regular | Regular | Regular | Regular | Regular |
| Diluted Alkali | Regular | Regular | Regular | Regular | Regular |
| Vegitable Oil | Regular | Regular | --- | Excellent | Excellent |
| Animal Oil | Regular | Regular | --- | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Buna N rubber sheet, formulated with a density of 1.45, offers a practical balance between flexibility and oil resistance, making it suitable for a wide range of mid-strength industrial sealing applications. Its structure enables it to withstand exposure to petroleum-based fluids, lubricants, and grease, making it a dependable choice for medium-duty gaskets and lining solutions.
This nitrile rubber roll maintains consistent performance in temperature-sensitive environments and provides reliable mechanical properties under moderate pressure. Its ease of fabrication allows for clean cutting into customized components for pumps, flanges, and enclosure sealing.
With controlled hardness and uniform thickness, the sheet resists swelling and degradation, even during long-term operation. The material is suitable for automotive, machinery, and workshop use where general-purpose oil resistance is required without excessive material stiffness.
