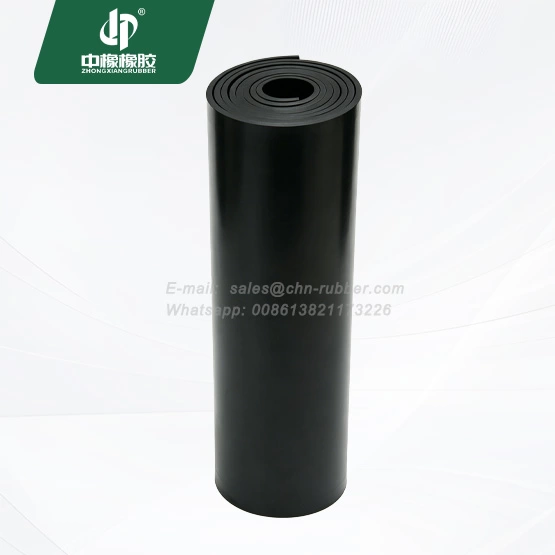

NBR 3mmx1.2mx10m gasket rubber sheet
High-Performance NBR Rubber Gasket Sheets
Tianjin China Rubber Co., Ltd. specializes in manufacturing premium 3mm rubber gasket sheets and bulk 3mm rubber sheets designed for rigorous industrial oil-resistance requirements. Our Nitrile (NBR) rubber series is the industry benchmark for environments where contact with petroleum-based oils, fuels, and chemical solvents is unavoidable, providing a reliable seal that prevents swelling and degradation.
Product Configuration
Our NBR rolls are available in a variety of colors beyond standard Black, including Red and Green, to meet specific identification or aesthetic needs. We offer precise 3mm rubber sheet options alongside a full thickness range from 1mm to 100mm.
- Dimensional Flexibility: Standard widths of 1m, 1.2m, 1.5m, up to 2.0m. Custom lengths are available in rolls of 5m to 20m.
- Surface Finishing: Choose from dual-sided smooth finishes for airtight gaskets, or anti-slip textures and fabric impressions for specialized industrial applications.
- Internal Reinforcement: For high-pressure systems, we offer advanced embedding layers including Nylon canvas, Mesh fabric, and Encrypted canvas for enhanced tear resistance.
NBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
|---|---|---|---|---|
| ZXZRS20001C-75 | 1.7g/cm³ | 75+/-5 Shore A | 2-2.5Mpa | 160% |
| Thickness (mm) | Width (m) | Length (m) | Insertion | Weight |
| 1 | 1.5m | 10m | / | 20.4kgs/m² |
| 1.5 | 1.5m | 10m | / | 33.15kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 45.9kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 71.4kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 96.9kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 122.4kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 147.9kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 198.9kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 249.9kgs/m² |
| 12 | 1m | 2m | 8PLY | 40.8kgs/m² |
| 15 | 1m | 2m | 10PLY | 51kgs/m² |
| 20 | 1m | 2m | 10PLY | 68kgs/m² |
| 25 | 1m | 2m | 10PLY | 85kgs/m² |
1. Dimensional data follows standard manufacturing tolerances.
2. Technical values are representative of standard production; specific batch data available on request.
3. Custom fabrication for non-standard dimensions is available through our dedicated engineering team.
Chemical Resistance & Compatibility
| Polymer Content | 20% | 30% | 50% | 70% | 100% |
|---|---|---|---|---|---|
| Lubricating Oils | Regular | Regular | Regular | Excellent | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Vegetable Oil | Regular | Regular | --- | Excellent | Excellent |
| Animal Oil | Regular | Regular | --- | Excellent | Excellent |
Why Choose Our 3mm Rubber Sheets for Gasket Manufacturing?
In industrial maintenance and OEM assembly, the 3mm rubber gasket sheet is one of the most versatile thicknesses for creating fluid-tight barriers in pumps, pipes, and engine components. Our NBR material is specifically vulcanized to offer a Shore A hardness of 75±5, which provides the perfect balance between compressibility and structural recovery.
Furthermore, our NBR sheets exhibit superior resistance to animal and vegetable fats, making them suitable for specialized refinery and secondary food processing equipment. With a specific gravity of 1.7, the material provides the density required for high-performance insulation and durable lining in automotive and mechanical assembly settings.
Direct Factory Inquiry
Tianjin China Rubber Co., Ltd. provides customized export solutions, including specialized labeling, custom logos, and secure palletized packing to ensure your 3mm rubber sheets arrive in perfect condition globally.
