Product
Hardness 80 Nitrile rubber sheeting roll
Polymer: NBR rubber
Color: Black / Red / Green; Custom
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

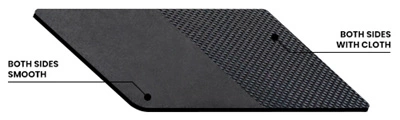

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
NBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20001NI-80 | 1.9g/cm³ | 80+/-5 Shore A | 1-1.5Mpa | 100% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 22.8kgs/m² |
| 1.5 | 1.5m | 10m | / | 37.05kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 51.3kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 79.8kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 108.3kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 136.8kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 165.3kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 222.3kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 285kgs/m² |
| 12 | 1m | 2m | 8PLY | 45.6kgs/m² |
| 15 | 1m | 2m | 10PLY | 57kgs/m² |
| 20 | 1m | 2m | 10PLY | 75kgs/m² |
| 25 | 1m | 2m | 10PLY | 95kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Excellent | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Regular | Excellent |
| Diluted Acids | Regular | Regular | Regular | Regular | Regular |
| Diluted Alkali | Regular | Regular | Regular | Regular | Regular |
| Vegitable Oil | Regular | Regular | --- | Excellent | Excellent |
| Animal Oil | Regular | Regular | --- | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Nitrile rubber sheeting, engineered for environments requiring reliable oil and fuel resistance, is a material widely used in industrial systems where petroleum exposure is frequent. This material, commonly provided by experienced NBR rubber suppliers, demonstrates strong resilience against abrasion, low temperatures, and mechanical stress, making it suitable for both static and dynamic sealing purposes.
Its uniform surface finish ensures smooth cutting, bonding, and fabrication into gaskets, washers, and vibration-dampening components. The composition of the nitrile rubber sheet supports resistance to hydraulic fluids, engine oils, and mild chemicals, allowing for long service cycles without deformation or failure.
Often preferred in automotive, food machinery (non-contact areas), marine, and mechanical workshops, this sheet-type elastomer meets practical demands where both oil resistance and material flexibility are necessary. It can be supplied in roll form or precut sizes based on system layout requirements.
