Hardness 55 Black Buna N rubber sheet
Polymer: NBR rubber
Color: Black / Red / Green; Custom
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

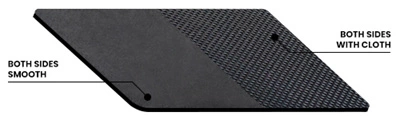

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

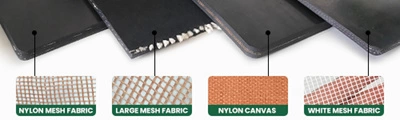

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
NBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20001NI-55 | 1.35g/cm³ | 55+/-5 Shore A | 6-7Mpa | 350% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 16.2kgs/m² |
| 1.5 | 1.5m | 10m | / | 26.36kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 36.45kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 56.7kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 76.95kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 97.2kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 117.45kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 157.95kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 202.5kgs/m² |
| 12 | 1m | 2m | 8PLY | 32.4kgs/m² |
| 15 | 1m | 2m | 10PLY | 40.5kgs/m² |
| 20 | 1m | 2m | 10PLY | 54kgs/m² |
| 25 | 1m | 2m | 10PLY | 67.5kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Excellent | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Regular | Excellent |
| Diluted Acids | Regular | Regular | Regular | Regular | Regular |
| Diluted Alkali | Regular | Regular | Regular | Regular | Regular |
| Vegitable Oil | Regular | Regular | --- | Excellent | Excellent |
| Animal Oil | Regular | Regular | --- | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Buna N sheet is a type of nitrile rubber product known for its reliable performance in demanding industrial environments. It offers consistent oil resistance and mechanical strength, making it a preferred material for gasket fabrication. When shaped into a buna N gasket sheet, it performs exceptionally well under compression, helping to maintain tight seals even in systems that experience fluctuating temperatures and pressures.
The sheet resists degradation from petroleum-based fluids, diesel, greases, and certain solvents, making it useful in engine compartments, hydraulic systems, and fuel-handling operations. With its flexible surface and moderate elongation properties, the buna N sheet adapts well to curved surfaces and irregular profiles.
Supplied in uniform thickness and consistent density, the material supports applications in automotive maintenance, refinery sealing systems, marine pump stations, and other industrial sealing zones that require oil-tolerant elastomers.
