Product

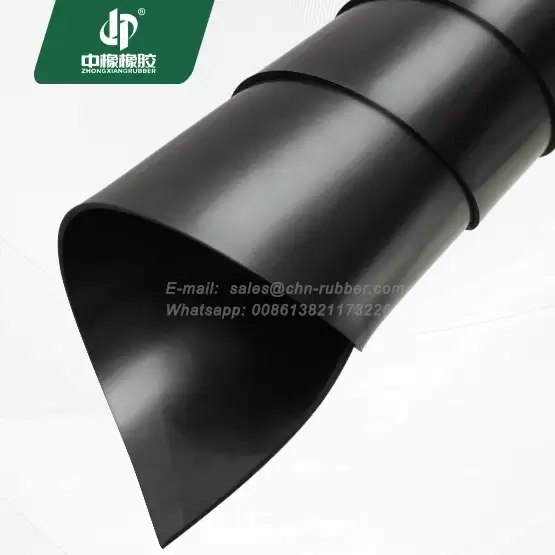

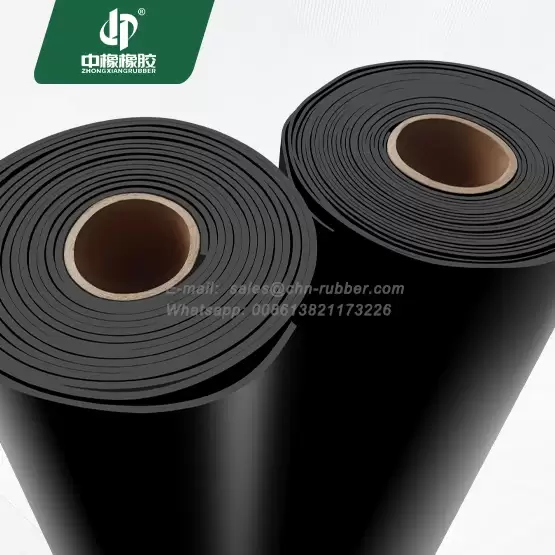

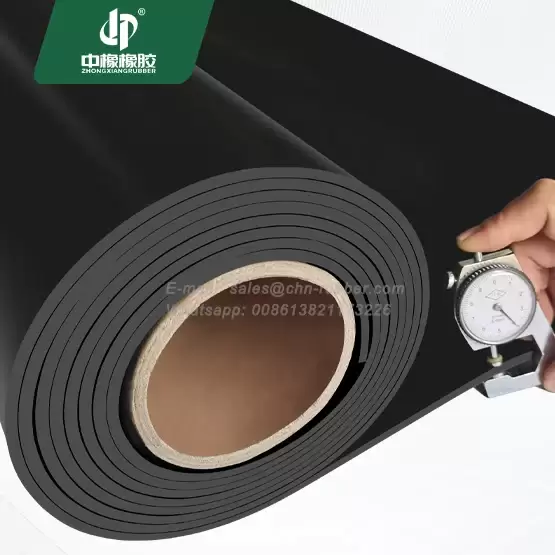

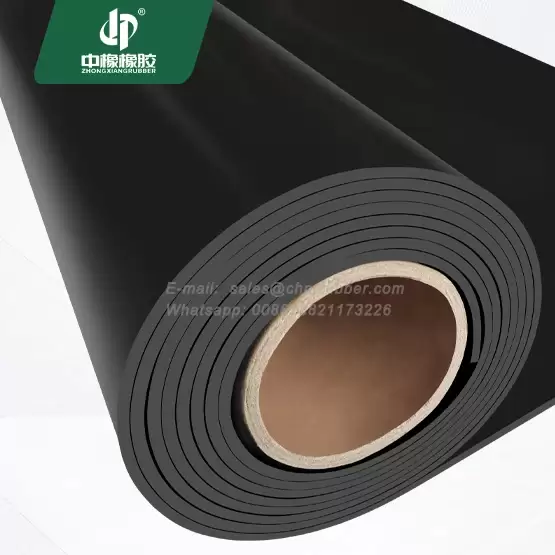

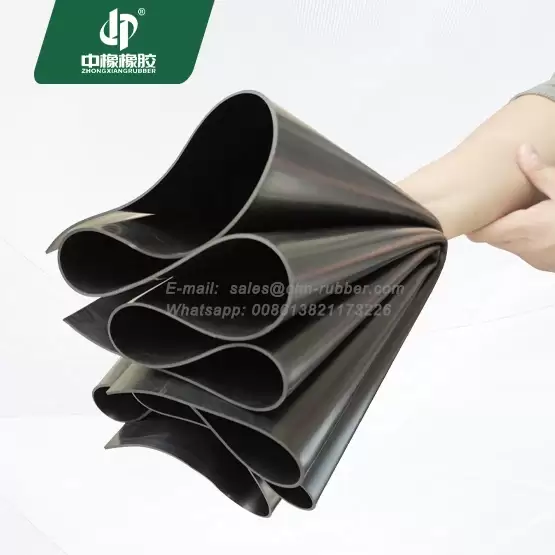

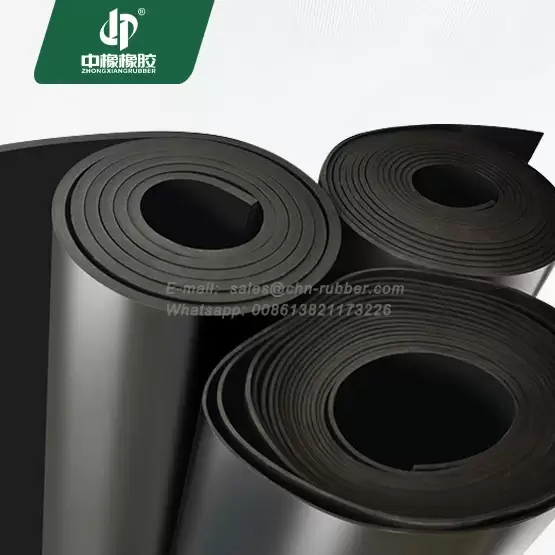

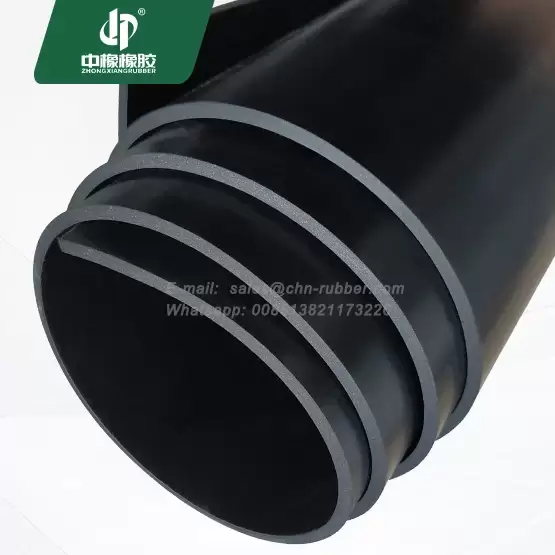

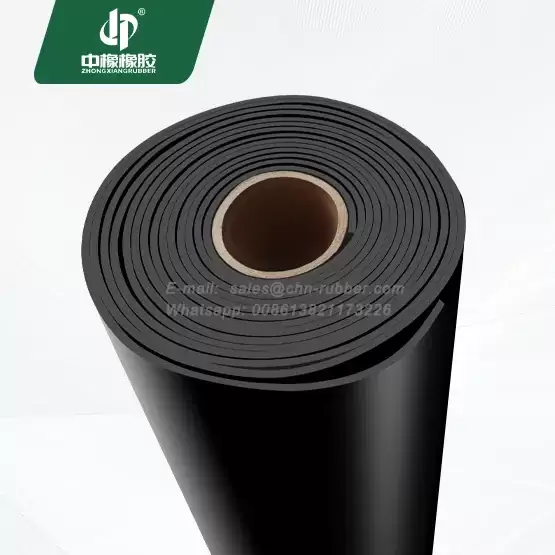

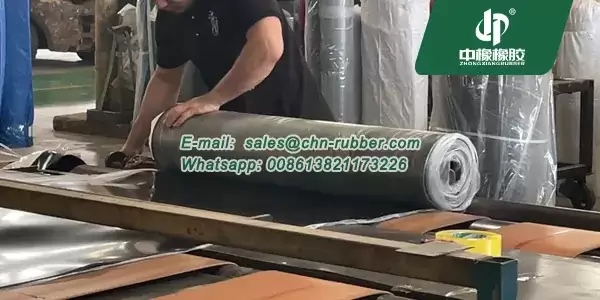

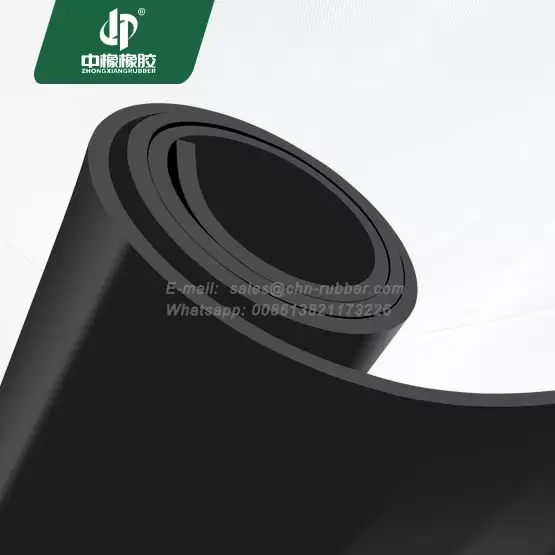

Hardness 55 EPDM waterproof rubber roll custom thickness
Polymer: EPDM rubber
Color: Black / Red / Green; Custom
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

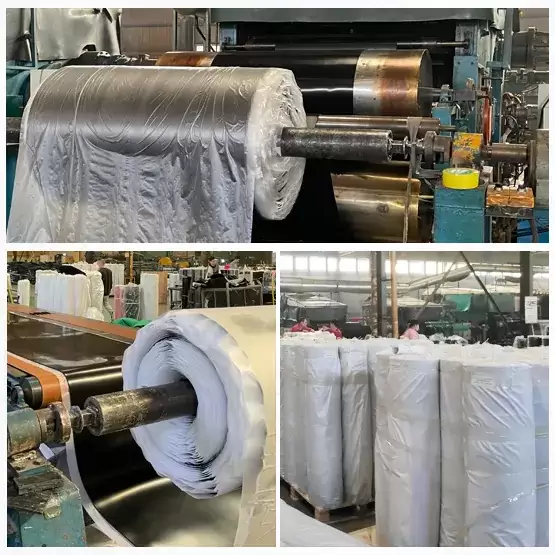

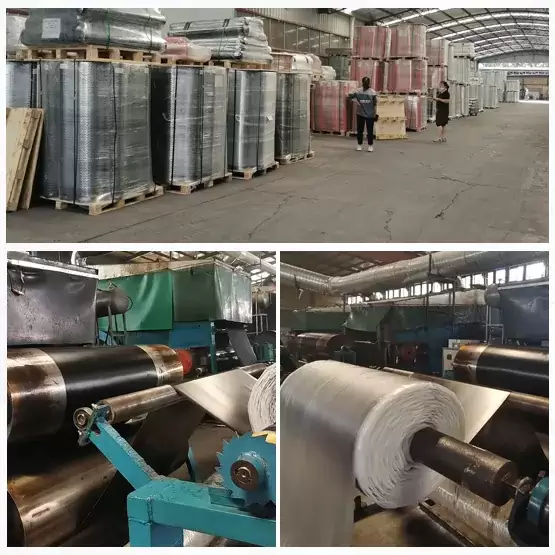

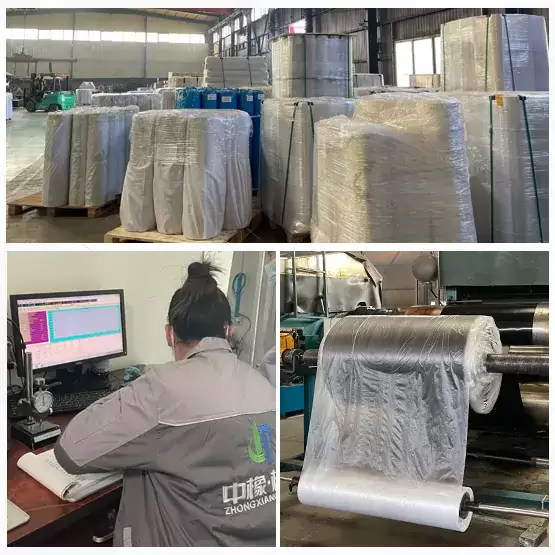

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
EPDM Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101E-55 | 1.35g/cm³ | 55+/-5 Shore A | 6-7Mpa | 350% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 16.2kgs/m² |
| 1.5 | 1.5m | 10m | / | 26.35kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 36.45kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 56.7kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 76.95kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 97.2kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 117.45kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 157.95kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 202.5kgs/m² |
| 12 | 1m | 2m | 8PLY | 32.4kgs/m² |
| 15 | 1m | 2m | 10PLY | 40.5kgs/m² |
| 20 | 1m | 2m | 10PLY | 54kgs/m² |
| 25 | 1m | 2m | 10PLY | 67.5kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Regular | Regular |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Regular | Regular |
| Lubricating Oils | Regular | --- | Regular | Regular | Regular |
| Outdoor Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
| Ozone Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
| Diluted Acids | Regular | Excellent | Excellent | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Regular | Excellent |
| Vegitable Oil | Regular | Regular | Regular | Regular | Regular |
| Animal Oil | Regular | Regular | Regular | Regular | Regular |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
The waterproof rubber roll made from high-grade EPDM material offers reliable protection in environments exposed to moisture, ozone, and UV light. With a specific gravity of 1.35 and a medium softness of 55 Shore A, this sheet ensures excellent sealing and flexibility while maintaining long-term stability. The rubber's smooth finish and consistent thickness make it well-suited for waterproofing applications in roofs, walls, basements, and mechanical equipment.
Thanks to the excellent weathering resistance of EPDM, this roll performs efficiently in both hot and cold climates. It’s often used as a lining material in construction and automotive industries, where lasting water protection is essential. Its low water absorption and non-conductive nature also make it suitable for insulation and padding tasks in damp or exposed environments.
