Product
Hardness 75 Black EPDM rubber sheet roll
Polymer: EPDM rubber
Color: Black / Red / Green; Custom
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

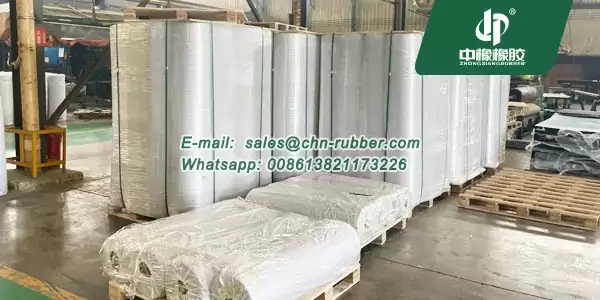

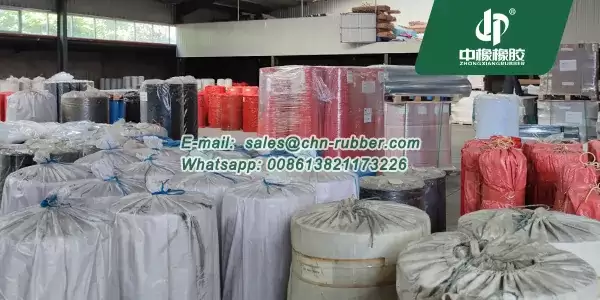

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
EPDM Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101E-75 | 1.7g/cm³ | 75+/-5 Shore A | 2-2.5Mpa | 160% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 20.4kgs/m² |
| 1.5 | 1.5m | 10m | / | 33.15kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 45.9kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 71.4kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 96.9kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 122.4kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 147.9kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 198.9kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 249.9kgs/m² |
| 12 | 1m | 2m | 8PLY | 40.8kgs/m² |
| 15 | 1m | 2m | 10PLY | 51kgs/m² |
| 20 | 1m | 2m | 10PLY | 68kgs/m² |
| 25 | 1m | 2m | 10PLY | 85kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Regular | Regular |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Regular | Regular |
| Lubricating Oils | Regular | --- | Regular | Regular | Regular |
| Outdoor Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
| Ozone Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
| Diluted Acids | Regular | Excellent | Excellent | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Regular | Excellent |
| Vegitable Oil | Regular | Regular | Regular | Regular | Regular |
| Animal Oil | Regular | Regular | Regular | Regular | Regular |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Black EPDM rubber sheet with a hardness of 75±5 Shore A and a specific gravity of 1.7 is well-suited for industrial applications requiring resistance to ozone, UV, and weather aging. The high hardness level provides excellent mechanical strength and compression resistance, making it an ideal choice for heavy-duty sealing and gasketing tasks.
This epdm rubber sheet is known for its consistent performance in outdoor and high-temperature conditions, maintaining flexibility across a wide temperature range without cracking or degrading. It’s commonly applied in roofing, automotive sealing systems, water-resistant barriers, and electrical enclosures. Available in sheet rolls or custom-cut sizes, the epdm rubber sheet can be tailored for different installation environments. Its stable formulation ensures long service life and reliable resistance to environmental stressors.
