Product

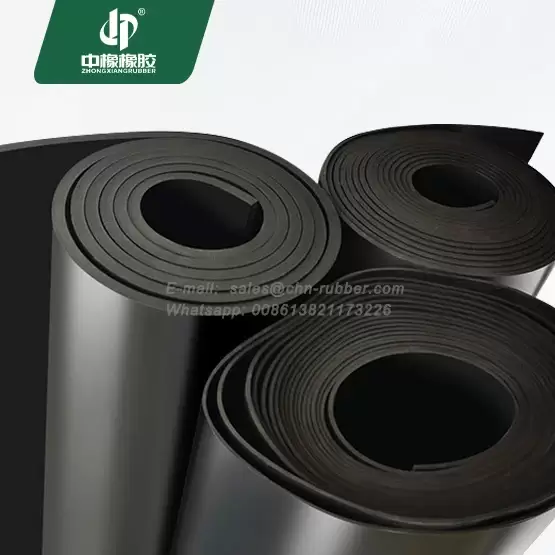

Hardness 60 1.4 specific gravity EPDM rubber sheet 5mm thick
Polymer: EPDM rubber
Color: Black / Red / Green; Custom
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.

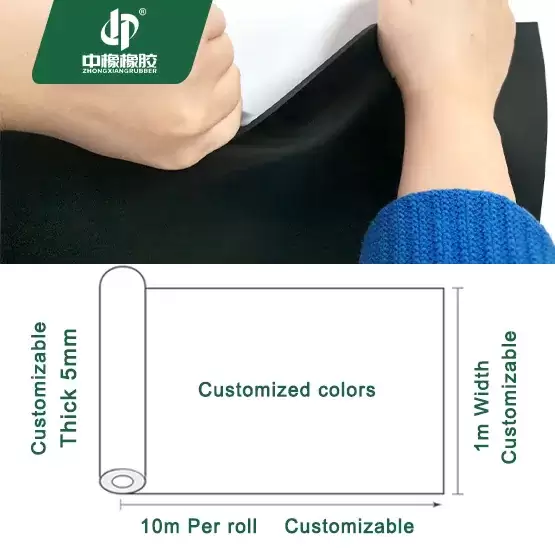

Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

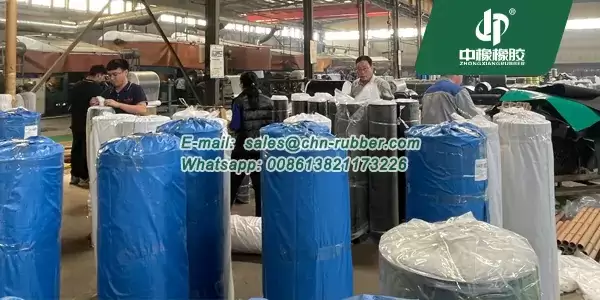

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
EPDM Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101E-60 | 1.4g/cm³ | 60+/-5 Shore A | 5-6Mpa | 300% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 16.8kgs/m² |
| 1.5 | 1.5m | 10m | / | 27.3kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 37.8kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 58.8kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 79.8kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 100.8kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 121.8kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 163.8kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 210kgs/m² |
| 12 | 1m | 2m | 8PLY | 33.6kgs/m² |
| 15 | 1m | 2m | 10PLY | 42kgs/m² |
| 20 | 1m | 2m | 10PLY | 56kgs/m² |
| 25 | 1m | 2m | 10PLY | 70kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Regular | Regular | Regular |
| Aromatic Hydrocarbons | Regular | Regular | Regular | Regular | Regular |
| Lubricating Oils | Regular | --- | Regular | Regular | Regular |
| Outdoor Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
| Ozone Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
| Diluted Acids | Regular | Excellent | Excellent | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Regular | Excellent |
| Vegitable Oil | Regular | Regular | Regular | Regular | Regular |
| Animal Oil | Regular | Regular | Regular | Regular | Regular |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
EPDM rubber sheet 5mm thick crafted from high-quality EPDM offers reliable performance in environments where flexibility, resistance to aging, and outdoor durability are essential. With a specific gravity of 1.4 and hardness of 60 Shore A, it provides a balanced combination of softness and tensile strength, making it ideal for gaskets, padding, and protective barriers.
EPDM rubber resists degradation from ozone, UV radiation, and extreme temperatures, ensuring stable function over time. The 5mm thickness offers a sturdy yet flexible solution that performs well under moderate compression, helping to seal gaps or cushion vibrations in mechanical systems. It’s also non-conductive, which adds another layer of protection in applications involving light electrical exposure.
This EPDM rubber sheet is widely used in construction joints, door seals, machinery protection, and insulation panels, especially where a mid-range thickness is ideal for shock absorption and sealing.
