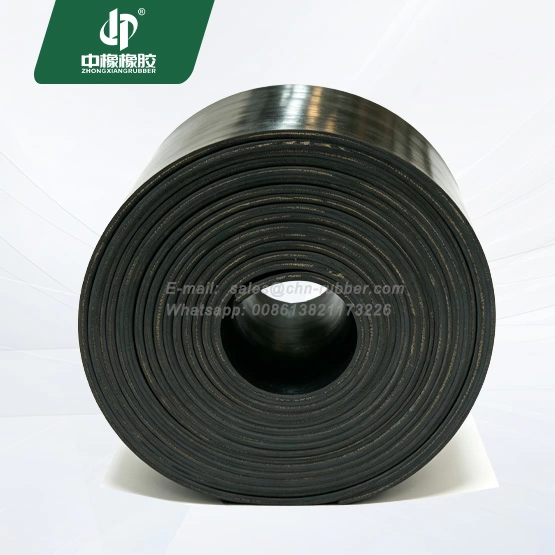

Nylon Reinforced Rubber Insertion Sheet Rolls (3mm - 6mm Thickness)
Product Name: Nylon/ Cloth Reinforced Insertion Rubber Sheet Roll
Thickness Range: 3mm to 6mm (Featuring standard 3mm, 4mm, 5mm, and 6mm gauges)
Reinforcement Layer: 1-Ply, 2-Ply Cotton fabric, Polyester duck cloth, or Nylon mesh scrim
Available Polymers: SBR, NBR (Nitrile), CR (Neoprene), EPDM, NR (Natural Rubber)
Surface Finish: Smooth both sides, or Double-sided fabric / cloth impression finish
Standard Roll Widths: 1.0m, 1.2m, 1.4m, 1.5m (Custom widths up to 2.0m available)
Standard Roll Lengths: 5m, 10m, 15m, 20m per roll
Primary Application: High-Pressure Gaskets, Flange Seals, Heavy-Duty Flaps, Conveyor Skirting, Protective Curtains
Factory Direct Pricing: Looking for immediate stock or custom specs for 6mm insertion rubber or rubber insertion 3mm rolls? Get a fast export quotation today!
3mm to 6mm Insertion Rubber Sheet Technical Specifications
| Thickness Gauge | Fabric Ply Option | Standard Roll Size (W x L) | Tensile Strength & Pressure Class |
|---|---|---|---|
| Rubber Insertion 3mm | 1-Ply Fabric | 1.2m x 10m / 1.5m x 10m | Medium-High Tensile (Resists joint distortion) |
| 4mm Insertion Rubber | 1-Ply or 2-Ply Fabric | 1.2m x 10m | High Tensile (Ideal for pump casings & pipe flanges) |
| 5mm Insertion Rubber | 1-Ply or 2-Ply Fabric | 1.2m x 10m | Extra High Tensile (Heavy-duty curtain & sealing) |
| 6mm Insertion Rubber | 2-Ply or 3-Ply Fabric | 1.2m x 10m / 1.2m x 5m | Ultra-High Tensile (Maximum tear & bolt load resistance) |
* Note: Custom ply options (e.g., 2-ply cotton insertion inside 3mm sheet) and specialized synthetic fibers (Polyester / Nylon) can be manufactured upon request. Weights are calculated based on standard 1.5 g/cm³ specific gravity.
Elastomer Selection Guide for Cloth Reinforced Rubber Sheets
| Elastomer Type | Reinforcement Synergy Benefit | Temperature Range | Chemical / Media Resistance | Recommended Application |
|---|---|---|---|---|
| SBR Insertion | Cost-effective strength for static joints | -40°C to +70°C | Water, air, inert gases | General purpose flange gaskets & matting |
| NBR (Nitrile) Insertion | High-pressure oil seal without gasket creep | -35°C to +100°C | Petroleum, diesel, oils, grease | Fuel lines, oil pipe flanges & engine gaskets |
| CR (Neoprene) Insertion | Flame, weather & moderate oil resistance | -30°C to +80°C | Seawater, mild chemicals, oils | Marine hatch seals, outdoor heavy gaskets |
| EPDM Insertion | Unmatched outdoor UV, ozone & steam seal | -50°C to +150°C | Hot steam, weathering, acids, alkalis | HVAC gaskets, hot water lines, weather flaps |
| NR (Natural) Insertion | Extreme tear resistance & dynamic rebound | -50°C to +100°C | High physical abrasion, slurry | Conveyor skirt boards, shock pads & lining |
High-Performance 3mm to 6mm Fabric Insertion Rubber Sheeting
Our premium range of fabric inserted rubber sheet products is specifically engineered for high-demand industrial sealing applications where standard non-reinforced rubber sheets might tear, stretch, or squeeze out under pressure. By vulcanizing a high-tensile fabric scrim (such as cotton duck cloth, nylon mesh, or polyester) directly into the center of the rubber matrix, we create an ultra-durable elastomeric sheet with exceptional dimensional stability.
Whether you require versatile rubber insertion 3mm material for thin flange gaskets or heavy-duty 6mm insertion rubber rolls for high-load mechanical curtains and skirt boards, our production facility delivers precise manufacturing standards and factory-direct pricing.
Optimized Thickness Gauges: From 3mm to 6mm Reinforced Sheets
Different industrial joint configurations demand specialized thickness and ply counts to ensure a zero-leak seal:
- Rubber Insertion 3mm (1-Ply / 2-Ply): Highly flexible and easy to die-cut. Widely specified for low-to-medium pressure pipe flange gaskets, water valve seals, and light dust curtains where tear prevention is critical during bolt torquing.
- 4mm & 5mm Insertion Rubber (1-Ply / 2-Ply): Provides extra cushioning for slightly uneven flange surfaces while preventing rubber cold-flow creep under continuous compression stress.
- 6mm Insertion Rubber (2-Ply / 3-Ply): The pinnacle of heavy-duty reinforced sheeting. Built for heavy flange connections, high-impact rubber flaps, conveyor skirting, pump casing seals, and structural mounting pads.
Multi-Polymer Solutions: SBR, NBR, CR, EPDM & Natural Rubber
We combine high-strength textile plies with tailored elastomer compounds to suit any chemical or thermal environment:
- SBR Cloth Insertion: The most economical choice for general water, air, and structural sealing.
- NBR Nitrile Insertion: Designed for fuel lines, oil pipelines, and automotive gasket fabrication where oil resistance and zero-stretch performance are required.
- CR Neoprene Insertion: Excellent marine grade sheet offering balanced resistance to seawater, ozone, weathering, and light oils.
- EPDM Fabric Insertion: Built for hot water, low-pressure steam, HVAC systems, and extreme outdoor weather exposure without thermal degradation.
- NR Natural Rubber Insertion: Maximum mechanical strength, high elasticity, and tear resistance for severe slurry and abrasive industrial environments.
Get Factory Direct Quotes for Insertion Rubber Sheets
Looking for direct manufacturer pricing on 6mm insertion rubber or rubber insertion 3mm sheet rolls? Contact our export specialists today for full datasheets, free sample swatches, and custom ply quotations:
