Hardness 65 Neoprene black reinforced neoprene rubber sheet
Polymer: Neoprene rubber
Color: Black
Thickness: 3mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

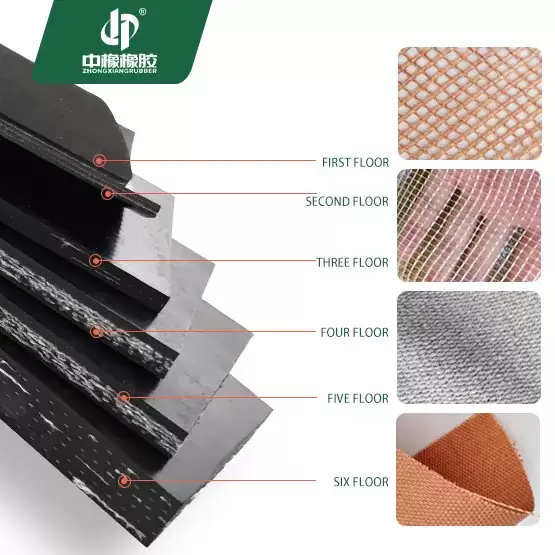

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

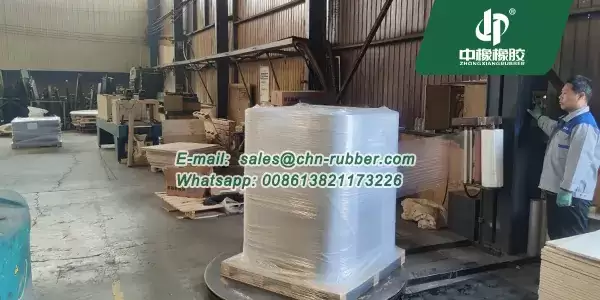

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Reinforced Neoprene Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20109F-65 | 1.5+/-0.05g/cm³ | 65+/-5 Shore A | 3-4Mpa | 200% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 5m | / | 9kgs/m² |
| 1.5 | 1.5m | 5m | / | 14.65kgs/m² |
| 1.7 | 1.5m | 5m | 1PLY | 17kgs/m² |
| 2 | 1.5m | 5m | 1PLY | 20.25kgs/m² |
| 3 | 1.5m | 5m | 1PLY | 31.5kgs/m² |
| 4 | 1.5m | 5m | 1PLY | 42.75kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 54kgs/m² |
| 6 | 1.5m | 5m | 3PLY | 65.25kgs/m² |
| 8 | 1.5m | 5m | 4PLY | 87.75kgs/m² |
| 10 | 1.5m | 5m | 5PLY | 112.5kgs/m² |
| 12 | 1m | 2m | 8PLY | 36kgs/m² |
| 15 | 1m | 2m | 10PLY | 45kgs/m² |
| 25 | 1m | 2m | 10PLY | 75kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Reinforced neoprene rubber sheet is manufactured with a medium-hardness CR compound (65 Shore A) and embedded with a durable nylon fabric layer for enhanced tensile strength and stability. With a density of 1.5 g/cm³, this nylon reinforced rubber sheet balances flexibility with structural integrity, making it well-suited for demanding industrial environments. The nylon cloth layer helps prevent over-stretching, tearing, or deformation under mechanical stress. As a nylon reinforced rubber sheet, it performs reliably in gasket fabrication, protective padding, and shock-absorbing lining, especially in areas exposed to repetitive motion or vibration.
This cloth reinforced rubber sheet offers moderate resistance to oil, heat, and aging, while the embedded fabric prevents internal breakdown over time. Its ability to maintain shape and strength under load makes it ideal for use in transport equipment, machine bases, and flexible seals. Available in multiple thicknesses upon request, cloth reinforced rubber sheet can be supplied in full rolls or cut-to-size formats to match varied project needs.
