Product
Hardness 75 CR neoprene black rubber sheet
Polymer: Neoprene rubber

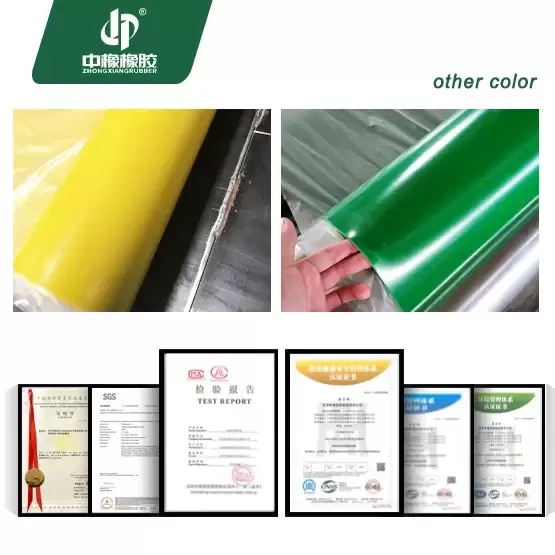

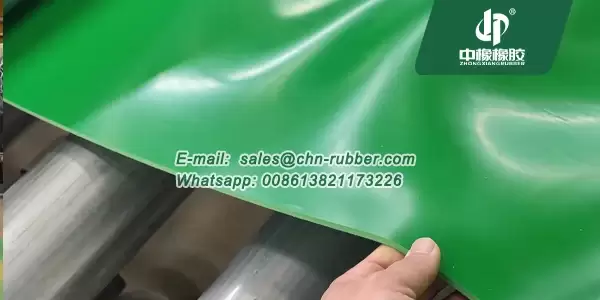

Color: Black / Red / Green; Custom
Thickness: 3mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Neoprene Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20001C-75 | 1.7g/cm³ | 75+/-5 Shore A | 2-2.5Mpa | 160% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 20.4kgs/m² |
| 1.5 | 1.5m | 10m | / | 33.15kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 45.9kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 71.4kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 96.9kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 122.4kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 147.9kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 198.9kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 249.9kgs/m² |
| 12 | 1m | 2m | 8PLY | 40.8kgs/m² |
| 15 | 1m | 2m | 10PLY | 51kgs/m² |
| 20 | 1m | 2m | 10PLY | 68kgs/m² |
| 25 | 1m | 2m | 10PLY | 85kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer Content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Regular | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Acids | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Excellent | Excellent |
| Vegitable Oil | Poor | Poor | Regular | Excellent | Excellent |
| Animal Oil | Poor | Poor | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Manufactured from solid CR rubber compound, this neoprene rubber sheet roll offers a Shore A hardness of 75 and a specific gravity of 1.7. Neoprene rubber sheet roll with higher density than general-purpose SBR, it provides a firmer surface and greater compression resistance, making it better suited for gasket fabrication, load-bearing strips, and anti-vibration padding in moderately demanding industrial settings. Black rubber sheet roll maintains dimensional stability during cutting and installation, while the 3mm thickness allows balanced flexibility and structural support. Neoprene rubber sheet 3mm performs consistently in environments where moderate mechanical stress is present, and light oil resistance or aging resistance is required — properties that general rubber types may lack. This neoprene rubber sheet 3mm is a practical option for sealing, lining, or insulating tasks where low-temperature performance, improved resilience, and surface strength are needed.
