Hardness 75 Black high voltage mat IEC 61111
Polymer: Synthetic rubber
Color: Black
Class: Class0 - Class4
Thickness: 1mm - 14mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

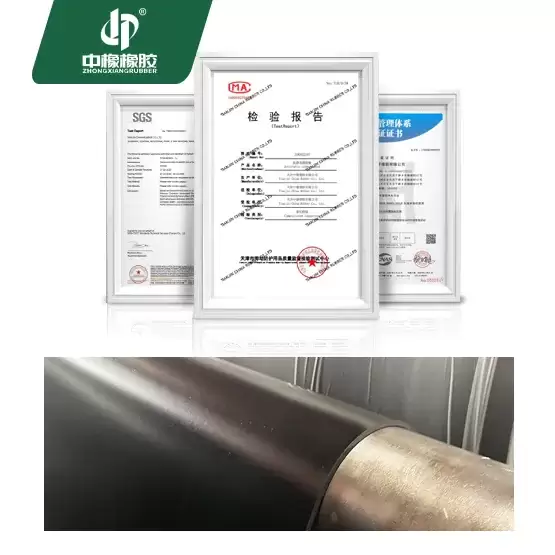

Certification: IEC 61111-2009

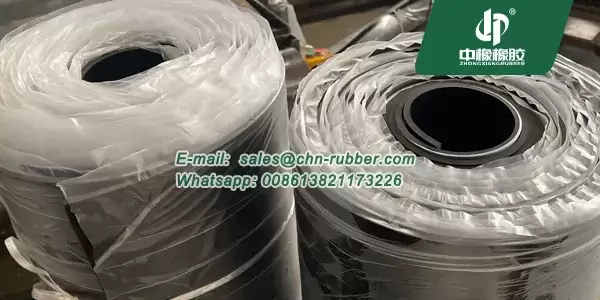

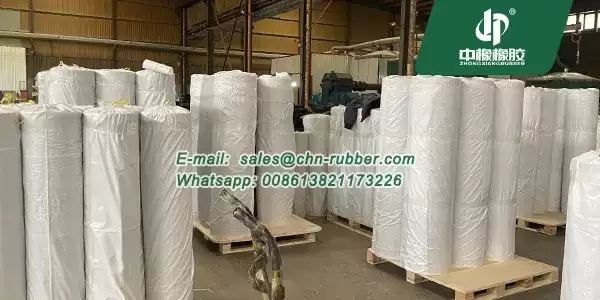

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Insulating Mat Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20103EI-75 | 1.7g/cm³ | 75+/-5 Shore A | 2Mpa | 160% |
| Thickness | Class | AC Voltage | Proof Voltage | Withstand Voltage |
| 3 | 0 | 1KV | 5KV | 10KV |
| 4 | 0 | 1KV | 5KV | 10KV |
| 5 | 0 | 1KV | 5KV | 10KV |
| 6 | 0 | 1KV | 5KV | 10KV |
| 3 | 1 | 7.5KV | 10KV | 20KV |
| 4 | 1 | 7.5KV | 10KV | 20KV |
| 5 | 1 | 7.5KV | 10KV | 20KV |
| 6 | 1 | 7.5KV | 10KV | 20KV |
| 7 | 2 | 17KV | 20KV | 30KV |
| 8 | 2 | 17KV | 20KV | 30KV |
| 9 | 3 | 26.5KV | 30KV | 40KV |
| 10 | 3 | 26.5KV | 30KV | 40KV |
| 11 | 3 | 26.5KV | 30KV | 40KV |
| 12 | 4 | 36KV | 40KV | 50KV |
| 13 | 4 | 36KV | 40KV | 50KV |
| 14 | 4 | 36KV | 40KV | 50KV |
| Thickness | Width | Length | Insertion | Weight |
| 3 | 1.2m | 10m | / | 57.12kgs/m² |
| 4 | 1.2m | 10m | / | 77.52kgs/m² |
| 5 | 1.2m | 10m | / | 97.92kgs/m² |
| 6 | 1.2m | 10m | / | 118.32kgs/m² |
| 7 | 1m | 10m | / | 115.6kgs/m² |
| 8 | 1m | 10m | / | 132.6kgs/m² |
| 9 | 1m | 2m | / | 29.92kgs/m² |
| 10 | 1m | 2m | / | 34kgs/m² |
| 11 | 1m | 2m | / | 37.4kgs/m² |
| 12 | 1m | 2m | / | 40.8kgs/m² |
| 13 | 1m | 2m | / | 44.2kgs/m² |
| 14 | 1m | 2m | / | 47.6kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Tianjin China Rubber Co.,Ltd offers a precision-manufactured high voltage mat that meets IEC 61111 insulation standards, engineered to protect personnel from electrical shock in high-risk areas. This black flat insulating mat is commonly used in substations, control panels, and switchgear environments.
Constructed from durable rubber with strong electrical resistance, the mat ensures reliable insulation under high-voltage applications. Its flat surface design provides a firm, non-slip working platform, while resisting mechanical wear and common industrial chemicals. As an experienced electrical mat supplier, Tianjin China Rubber Co.,Ltd supplies the material in various voltage grades and thickness options, tailored for safe use across multiple power distribution scenarios. Each high voltage mat undergoes strict testing to verify compliance with insulation and flame-retardant requirements.
The black insulating mat maintains long-term performance even in challenging industrial environments, supporting safe operation near live electrical equipment. Its construction supports both flexibility and resilience, making installation simple without compromising protection. Choosing a certified electrical mat supplier like Tianjin China Rubber Co.,Ltd ensures consistency, safety, and full adherence to international electrical protection regulations.
