Product
3mm/5mmx1.2mx10m Neoprene CR rubber gasket roll
Polymer: Neoprene rubber
Color: Black / Red / Green; Custom
Thickness: 3mm / 5mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

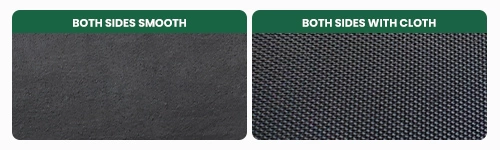

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

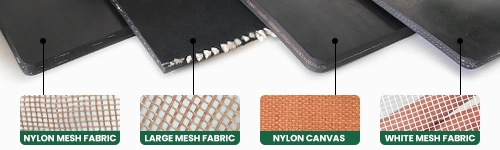

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Neoprene Rubber Gasket Sheet Roll Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101C-65 | 1.5g/cm³ | 65+/-5 Shore A | 3-4Mpa | 200% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 10m | / | 12kgs/m² |
| 1.5 | 1m | 10m | / | 19.5kgs/m² |
| 1.7 | 1m | 10m | 1PLY | 22.5kgs/m² |
| 2 | 1m | 10m | 1PLY | 27kgs/m² |
| 3 | 1m | 10m | 1PLY | 42kgs/m² |
| 4 | 1m | 10m | 1PLY | 57kgs/m² |
| 5 | 1m | 10m | 2PLY | 72kgs/m² |
| 6 | 1m | 10m | 3PLY | 87kgs/m² |
| 8 | 1m | 10m | 4PLY | 117kgs/m² |
| 10 | 1m | 10m | 5PLY | 147kgs/m² |
| 12 | 1m | 2m | 8PLY | 36kgs/m² |
| 15 | 1m | 2m | 10PLY | 45kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 60kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 75kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Regular | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Acids | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Excellent | Excellent |
| Vegitable Oil | Poor | Poor | Regular | Excellent | Excellent |
| Animal Oil | Poor | Poor | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Key Performance Advantages:
- Excellent resistance to oils, greases, fuels, and many moderate chemicals
- Superior weathering, UV, ozone, and aging resistance
- Very good abrasion resistance and tear strength
- Inherent flame-retardant properties
- Good compression set and recovery for reliable long-term sealing
Common Applications:
- Gaskets & seals for flanges, valves, pumps, and HVAC systems
- Automotive & marine components (door seals, vibration mounts, weatherstrips)
- Industrial linings, protective pads, and anti-vibration cushions
- Oil-resistant environments, moderate chemical exposure, and outdoor equipment
- Electrical enclosures, sound dampening, and insulation pads
Important Note: While neoprene offers good resistance to petroleum-based oils and many acids/alkalis, it is not recommended for strong aromatic hydrocarbons, chlorinated solvents, ketones, or prolonged immersion in concentrated fuels. For higher temperature or extreme chemical needs, consider our Viton®, EPDM, or NBR grades.
Tianjin China Rubber Co., Ltd. ensures consistent quality, tight thickness tolerance, and fast global delivery for all neoprene rubber sheet and rubber gasket sheet roll orders. Whether you need commercial-grade sheets or custom-cut gaskets, we provide reliable performance at competitive value.
