Hardness 60 black electrical insulation rubber sheet

Hardness 60 black electrical insulation rubber sheet

ZXZRS20103EI

Black rubber sheet designed for electrical insulation. Flat surface without ribs, ideal for control cabinets, equipment bases, and power rooms. Delivers stable dielectric performance and mechanical strength.

Email Us Inquiry

Polymer Compound: High-Grade Non-Conductive Synthetic Rubber

International Standard: IEC 61111:2009 Certified

Insulation Class: Class 0, Class 1, Class 2, Class 3, Class 4 (Working Voltage up to 36kV AC)

Standard Thickness Range: 3mm to 14mm (Custom thicknesses from 1mm available upon request)

Color: Black (Standard), Red, Green, or Custom Voltage Identification Colors

Standard Roll Dimensions:

Width: 1.0m / 1.2m / 1.4m / 1.5m / 1.6m / 1.8m / 2.0m
Length: 5m / 10m / 15m / 20m (Custom cut sheets & pad sizes available)

Surface Finish: Smooth both sides (Standard flat finish), fine ribbed anti-slip texture, or cloth impression

Customizable Shapes: Continuous Rolls, Die-cut Insulation Sheets, Switchboard Strips & Floor Mats

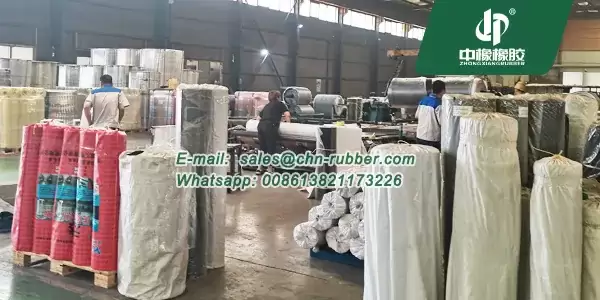

Packing Info: Professional export packaging using protective plastic film, heavy-duty PP woven bags, and strong wooden pallets. Custom branding, labels, voltage marks, and barcode printing are available.

IEC 61111 Electrical Insulation Rubber Sheet Voltage Classification

Thickness (mm)	Class Rating	Max Working Voltage (AC)	Proof Test Voltage	Withstand Voltage
3.0 - 6.0 mm	Class 0	1,000 V (1 KV)	5,000 V (5 KV)	10,000 V (10 KV)
3.0 - 6.0 mm	Class 1	7,500 V (7.5 KV)	10,000 V (10 KV)	20,000 V (20 KV)
7.0 - 8.0 mm	Class 2	17,000 V (17 KV)	20,000 V (20 KV)	30,000 V (30 KV)
9.0 - 11.0 mm	Class 3	26,500 V (26.5 KV)	30,000 V (30 KV)	40,000 V (40 KV)
12.0 - 14.0 mm	Class 4	36,000 V (36 KV)	40,000 V (40 KV)	50,000 V (50 KV)

Electrical Insulation Rubber Sheet Dimensions & Weight Specifications

Thickness	Standard Width	Standard Length	Fabric Insertion	Theoretical Weight
3 mm	1.2 m	10 m	/	43.68 kg/roll
4 mm	1.2 m	10 m	/	59.28 kg/roll
5 mm	1.2 m	10 m	/	74.88 kg/roll
6 mm	1.2 m	10 m	/	90.48 kg/roll
7 mm	1.2 m	10 m	/	106.08 kg/roll
8 mm	1.2 m	10 m	/	121.68 kg/roll
9 mm	1.0 m	2.0 m	/	22.88 kg/roll
10 mm	1.0 m	2.0 m	/	26.00 kg/roll
11 mm	1.0 m	2.0 m	/	28.60 kg/roll
12 mm	1.0 m	2.0 m	/	31.20 kg/roll
13 mm	1.0 m	2.0 m	/	33.80 kg/roll
14 mm	1.0 m	2.0 m	/	36.40 kg/roll

* Notes:
1. All physical dimensions and technical parameters are subject to standard manufacturing tolerances (±5%).
2. The weights provided above are theoretical reference values. Actual product weight may vary slightly based on compound density and customized roll sizes.
3. Custom sizes, non-standard widths (up to 2.0m), and pre-cut safety floor pads can be manufactured upon request.

smooth surface electrical insulation rubber sheet roll

high voltage electrical insulation rubber sheet for switchboard floor

iec 61111 certified non conductive insulation rubber sheet

black flat smooth dielectric insulation rubber sheet roll factory

IEC 61111 Compliant Electrical Insulation Rubber Sheet

Engineered for high-voltage dielectric protection, our insulation rubber sheet is formulated from premium non-conductive synthetic rubber compounds. Specifically designed to insulate floors, machinery bases, and high-voltage control rooms, this electrical insulation rubber sheet provides an essential safety barrier against electrical shock in power generation, substation maintenance, and industrial facility management.

Smooth Surface Finish for Superior Contact & Easy Maintenance

Unlike textured or ribbed insulating mats, this high-voltage insulation rubber sheet features a precision smooth surface finish on both sides. The flat design guarantees seamless surface contact with switchboard floors and cabinet foundations while eliminating dirt-trapping grooves. This smooth finish allows effortless cleaning, routine safety inspections, and seamless placement of heavy electrical equipment without tearing or uneven wear.

Certified Dielectric Protection & Industrial Applications

Manufactured under strict quality controls to meet IEC 61111:2009 international standards (Class 0 through Class 4), each batch undergoes rigorous dielectric withstand testing (up to 50kV). Outstanding resistance to moisture, oils, ozone, and mechanical compression makes our electrical insulation rubber sheet the preferred safety solution for:

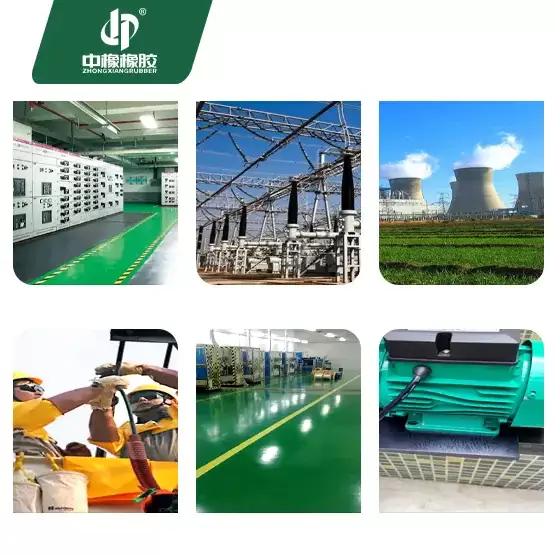

High-Voltage Switchgear Rooms: Safety floor matting in front of high-voltage circuit breakers and control panels.
Substations & Transformer Zones: Non-conductive floor protection during live electrical line repair and transformer servicing.
Industrial Power Cabinets: Dielectric insulation lining for power distribution units and motor control centers (MCC).
Electrical Maintenance Workbenches: Custom cut-to-size insulating pads for benchtop electrical testing and tool assembly.
