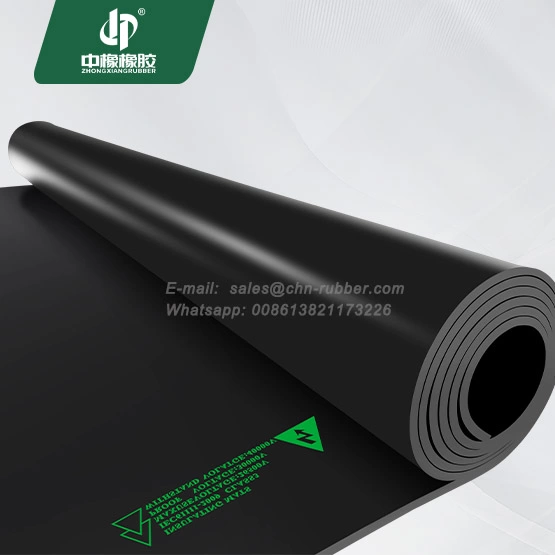

Class 3 Certified High Voltage Insulation Mat Factory Wholesale
Premium Dielectric High Voltage Insulation Mat: Absolute Safety Sealing for Electrical Substations
Uncompromising Life-Safety Features & Technical Advantages
Individually tested up to 30kV with a continuous safe working threshold, ensuring absolute containment of electrical arcs and high-voltage leakage currents.
Available in fine ribbed to provide maximum traction, preventing dangerous operator slips in critical high-risk work zones.
Engineered with self-extinguishing properties and acid/oil resistance, crucial for battery charging stations and transformer rooms.
Technical Deep-Dive: Material Purity & Voltage Class Certification
The performance of a reliable high voltage insulation mat relies entirely on its compound formulation. Standard carbon-filled black rubber exhibits mild electrical conductivity, which leads to catastrophic insulation failure under high-voltage loads. Our proprietary manufacturing process substitutes carbon black with premium, non-conductive mineral pigments and specialized dielectric polymers. This meticulous raw material processing ensures that the molecular chain remains completely saturated and free of conductive pathways, delivering uniform insulation resistance across every single square inch of the mat.

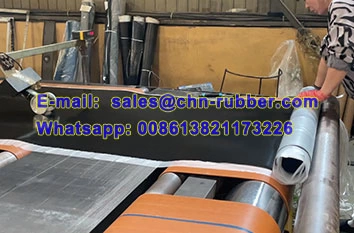

To guarantee 100% compliance with ASTM D178 and IEC 61111 standards, every batch of our high voltage rubber mats undergoes rigorous online dielectric testing. From Class 0 (safe up to 1000V) to Class 4 (tested up to 40kV for ultra-high voltage grids), we supply full laboratory verification reports with every delivery. Our state-of-the-art continuous rotary vulcanization ensures flawless gauge uniformity and structural density, eliminating internal air pockets where electrical micro-arcs could form and puncture the mat under load.
 |
 |
 |
Product Specifications & Testing Standards
We offer diverse standard thicknesses and voltage class configurations tailored to specific electrical engineering requirements.
| Technical Parameters | Factory Specification Standards |
|---|---|
| Polymer Base | Premium Non-Conductive Dielectric Elastomer |
| Voltage Compliance Grades | Class 0 (1kV) | Class 1 (7.5kV) | Class 2 (17kV) | Class 3 (26.5kV) | Class 4 (36kV) |

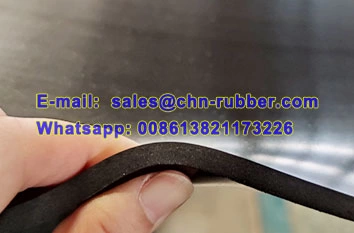

| Thickness Capacity | 3.0mm to 14.0mm (Thicker custom slabs available on demand) |
| Standard Roll Widths | 1.0m / 1.2m / 1.5m (Custom layout cuts available) |
| Standard Roll Lengths | 5m / 10m / 15m / 20m |
| Surface Textures | Smooth |
| Color Availability | Standard Black |
| International Standards | Fully compliant with IEC 61111-2009 |
| Export Packing | Waterproof film wrap, high-strength PP woven bags, and export-grade pallet packaging |
Wide-Ranging Critical Electrical Applications
Our safety-certified insulation mats are mandatory protective flooring assets in major high-voltage sectors:
- Power Distribution Sub-stations: Placed in front of high-voltage panels, control desks, and switches.
- Heavy Industrial Generator Rooms: Absorbing operational vibrations while isolating operators from floor grounding.
- EV Charging Station Maintenance: Providing dielectric isolation in automotive workshops handling high-voltage battery modules.
- Elevator Machine Rooms & Lift Shafts: Ensuring safety for maintenance technicians servicing control cabinets.
Industrial Customization & B2B Volume Wholesale Support
As a specialized industrial manufacturer, we supply global electrical equipment distributors and heavy engineering companies with optimized direct factory rates. We support custom roll lengths, personalized non-slip textures, and specialized color combinations (such as yellow-edged warning borders) to meet localized industrial electrical safety codes. Every shipment is tracked with physical test certificates corresponding to batch serial numbers, ensuring smooth custom clearances and instant project approvals.
Direct Factory Wholesale & Global Supply Chain Support
Contact our engineering desk today to request raw material dielectric test certs, custom roll thickness estimates, or volume wholesale prices.
