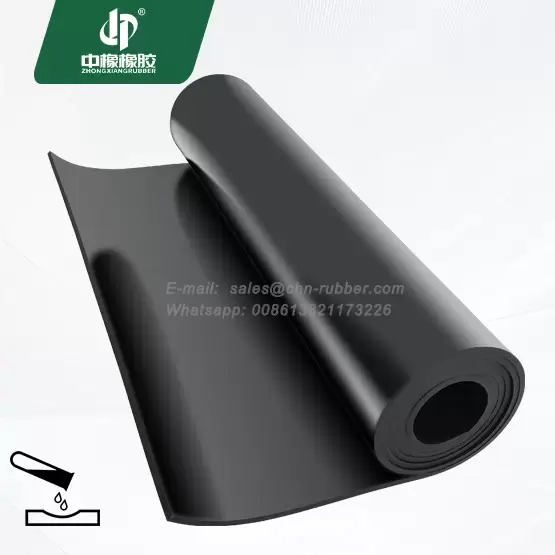

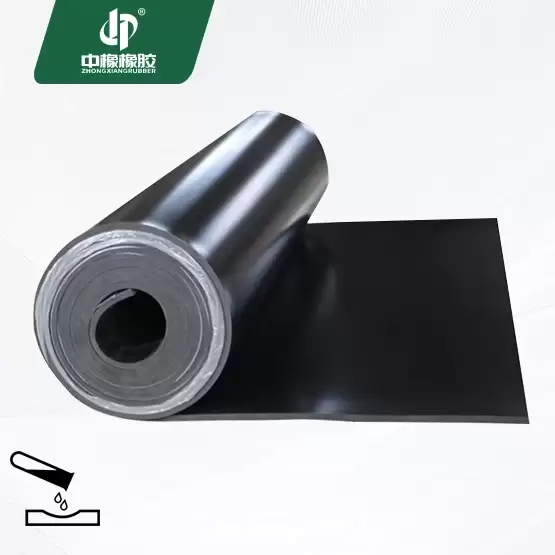

Viton chemical resistant rubber sheet roll
Polymer: Viton rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.

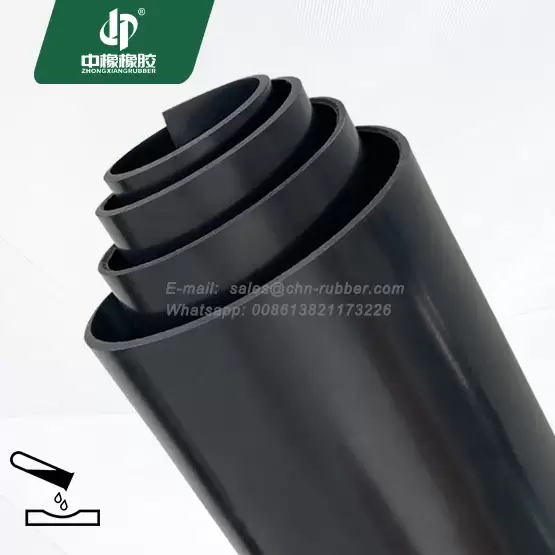

Customizable Shapes: Roll / Sheet / Strip

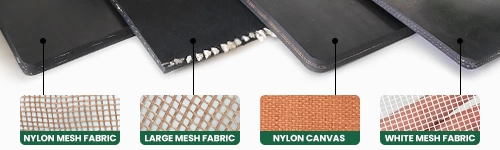

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

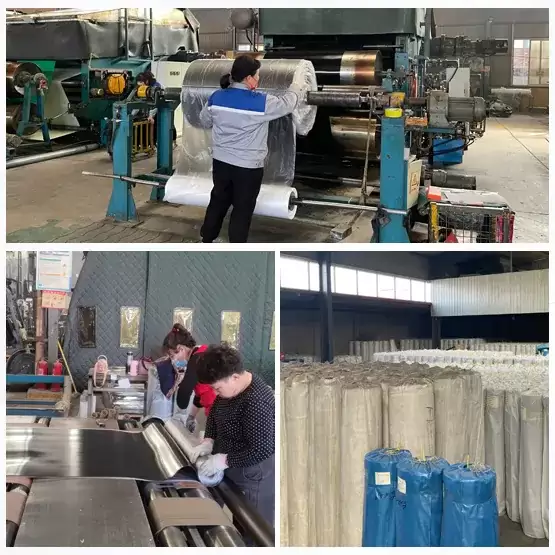

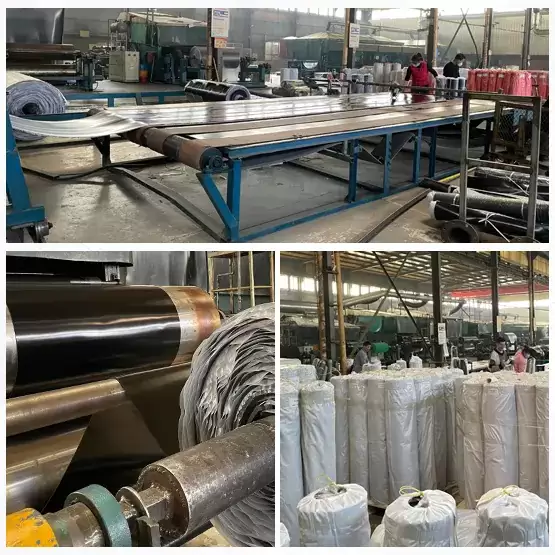

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Viton Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101V-70 | 1.9g/cm³ | 70+/-5 Shore A | 7-8Mpa | 300% |
| ZXZRS20101V-70 | 2.0g/cm³ | 70+/-5 Shore A | 5-6Mpa | 250% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 10m | / | 15.2kgs/m² |
| 1.5 | 1m | 10m | / | 24.7kgs/m² |
| 2 | 1m | 10m | 1PLY | 34.2kgs/m² |
| 3 | 1m | 10m | 1PLY | 53.2kgs/m² |
| 4 | 1m | 10m | 1PLY | 72.2kgs/m² |
| 5 | 1m | 10m | 2PLY | 91.2kgs/m² |
| 6 | 1m | 10m | 3PLY | 110.2kgs/m² |
| 8 | 1m | 10m | 4PLY | 148.2kgs/m² |
| 10 | 1m | 10m | 5PLY | 190kgs/m² |
| 12 | 1m | 1m | 8LY | 22.8kgs/m² |
| 15 | 1m | 1m | 10PLY | 28.5kgs/m² |
| 20 | 1m | 1m | 10PLY | 38kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Premium-grade chemical resistant viton fluoroelastomer sheet tailored for use in highly corrosive and chemically active conditions. This material is developed using genuine FKM compounds, recognized for their outstanding resistance to aggressive fluids, strong acids, alkalis, and oxidizing agents. Designed for environments where chemical compatibility is non-negotiable, this chemical resistant viton fluoroelastomer sheet performs well in contact with concentrated acids, fuels, solvents, and steam. Its molecular stability ensures reliable performance under long-term exposure to elevated temperatures and harsh chemicals.
The sheet maintains excellent compression set resistance, elasticity, and sealing efficiency under both static and dynamic stress. Typical applications include sealing layers in chemical tanks, linings for high-risk storage zones, and gaskets used in industrial process lines that handle corrosive agents. By incorporating high-quality chemical resistant viton fluoroelastomer, this sheet meets the demands of sectors such as chemical processing, pharmaceuticals, aerospace, and oil refining—where conventional rubber fails to withstand aggressive compounds and fluctuating thermal loads.
