Product
Industrial and commercial rubber chequer plate flooring
Polymer: Synthetic rubber
Color: Black
Thickness: 3mm - 10mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

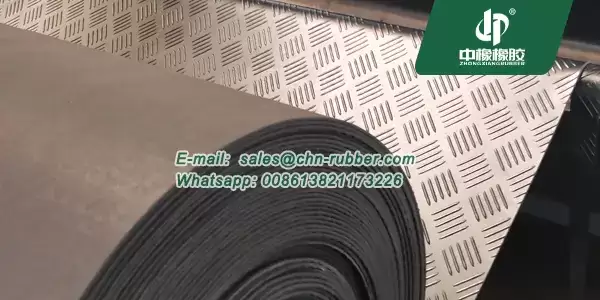

Surface: one side is smooth, one sides with cloth

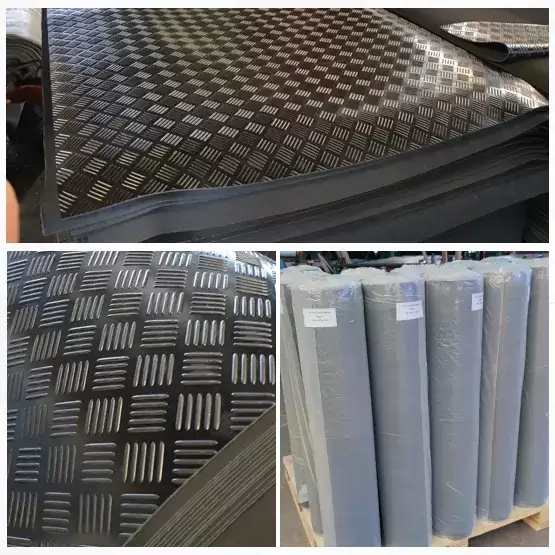

Customizable Shapes: Roll / Sheet

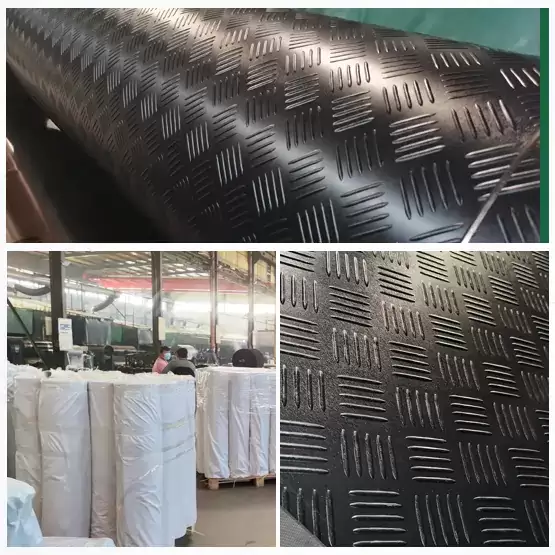

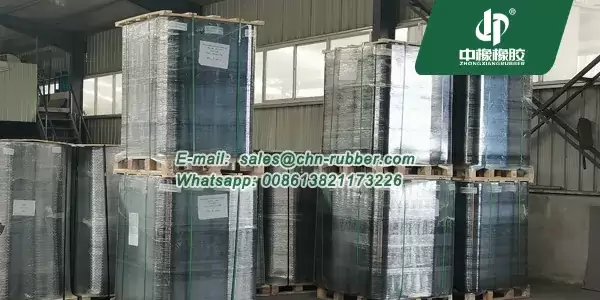

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Antislip Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20114AF-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
| Thickness | Design | Width | Length/Roll | Weight |
| 3mm |
|
1.2m | 10m | 50.40kgs/m² |
| 3mm | 1.5m | 10m | 63.00kgs/m² | |
| 3mm | 1.6m | 10m | 67.20kgs/m² | |
| 3mm | 1.8m | 15m | 113.40kgs/m² | |
| 3mm | 2.0m | 15m | 126.00kgs/m² | |
| 5mm |
|
1.2m | 10m | 86.40kgs/m² |
| 5mm | 1.5m | 10m | 108.00kgs/m² | |
| 5mm | 1.6m | 15m | 172.80kgs/m² | |
| 5mm | 1.8m | 10m | 129.60kgs/m² | |
| 5mm | 2.0m | 20m | 288.00kgs/m² |
* Color/size can be produced according to needs. For more specifications, please contact us
* Regarding the dimensions in the Design, please refer to the final production dimensions for reference only.
* There may be a slight difference between the weight of a single roll and the final delivery weight, which shall be subject to the final delivery purchase weight.

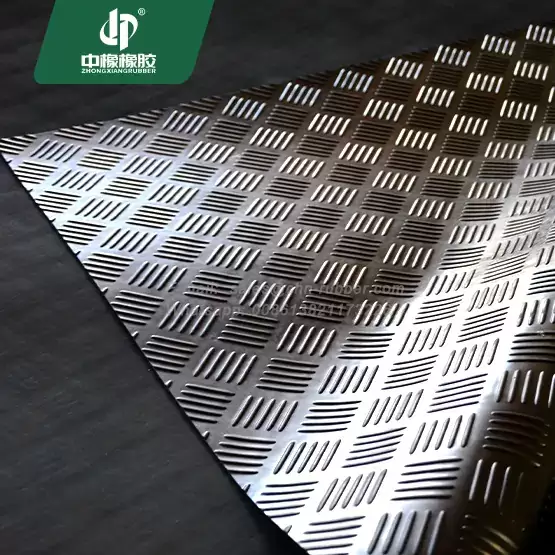

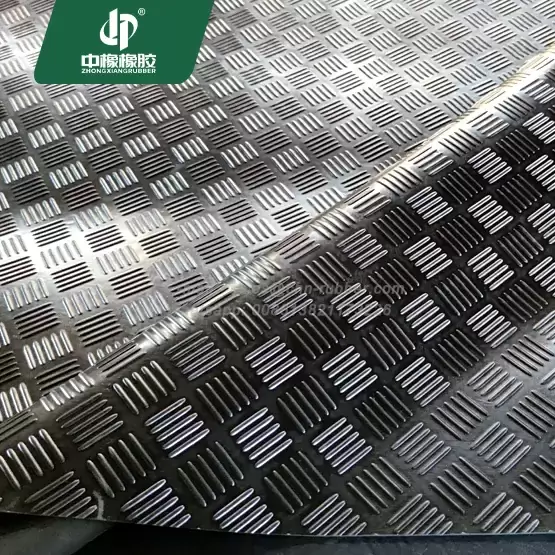

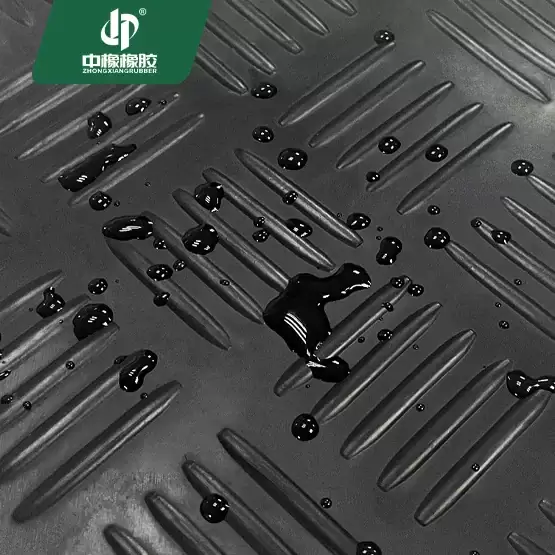

Rubber chequer plate flooring features a prominent five-bar tread design engineered for anti-slip performance in wet, oily, or high-traffic areas. Commonly installed in industrial walkways, workstations, and vehicle interiors, it enhances stability and foot safety on smooth surfaces. Tianjin China Rubber Co.,Ltd supplies rubber chequer plate flooring made from high-quality rubber materials. The surface structure offers grip even in low-traction conditions, while the underside remains flat for secure installation. Its flexibility makes it suitable for both permanent and temporary flooring coverage.
In addition to safety benefits, rubber chequer plate flooring helps absorb impact, minimizes floor wear, and reduces maintenance costs. It resists common chemicals and moisture, making it ideal for long-term use in challenging environments.
