Product
Custom color wide rib rubber sheet runner matting
Polymer: Synthetic rubber
Color: Green / Red / Black
Thickness: 3mm - 10mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: one side is smooth, one sides with cloth
Customizable Shapes: Roll / Sheet
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Antislip Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20214AG-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
| Thickness | Design | Width | Length/Roll | Weight |
| 4mm |
|
1.2m | 10m | 68.4kgs/m² |
| 4mm | 1.5m | 10m | 85.5kgs/m² | |
| 4mm | 1.6m | 10m | 91.2kgs/m² | |
| 4mm | 1.8m | 15m | 153.9kgs/m² | |
| 4mm | 2.0m | 15m | 171kgs/m² | |
| 5mm |
|
1.2m | 10m | 86.40kgs/m² |
| 5mm | 1.5m | 10m | 108.00kgs/m² | |
| 5mm | 1.6m | 15m | 172.80kgs/m² | |
| 5mm | 1.8m | 10m | 129.60kgs/m² | |
| 5mm | 2.0m | 20m | 288.00kgs/m² |
* Color/size can be produced according to needs. For more specifications, please contact us

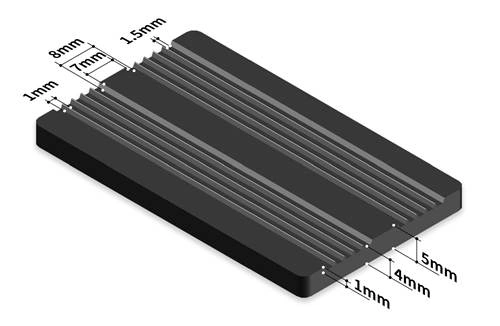

* Regarding the dimensions in the Design, please refer to the final production dimensions for reference only.
* There may be a slight difference between the weight of a single roll and the final delivery weight, which shall be subject to the final delivery purchase weight.
Wide rib rubber sheet is a reliable surface solution for environments requiring enhanced traction and basic protection against mechanical wear. Its ribbed profile increases friction underfoot and facilitates quick runoff of liquids and debris. The structured surface makes it especially suitable for walkways, warehouse floors, vehicle service areas, and wet processing zones.
Manufactured from high-quality rubber compounds, the sheet withstands medium levels of abrasion, oil contact, and weather exposure. Available in customizable colors, it integrates easily into facilities that require visual zoning or aesthetic coordination. The consistent ribbed texture ensures long-lasting grip performance, while the flexibility of the material allows for effortless installation.
Key Features
Anti-slip ribbed surface enhances safety in wet or oily conditions
Available in a range of custom colors
Excellent resistance to wear, aging, and mild chemicals
Suitable for both indoor and outdoor applications
Easy to install and trim to fit various layouts
