Red 3mm wide rib corrugated rib runner rubber sheet
Polymer: Synthetic rubber
Color: Red
Thickness: 3mm - 10mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: one side is smooth, one sides with cloth
Customizable Shapes: Roll / Sheet
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Antislip Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20214AG-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
| Thickness | Design | Width | Length/Roll | Weight |
| 4mm |
|
1.2m | 10m | 68.4kgs/m² |
| 4mm | 1.5m | 10m | 85.5kgs/m² | |
| 4mm | 1.6m | 10m | 91.2kgs/m² | |
| 4mm | 1.8m | 15m | 153.9kgs/m² | |
| 4mm | 2.0m | 15m | 171kgs/m² | |
| 5mm |
|
1.2m | 10m | 86.40kgs/m² |
| 5mm | 1.5m | 10m | 108.00kgs/m² | |
| 5mm | 1.6m | 15m | 172.80kgs/m² | |
| 5mm | 1.8m | 10m | 129.60kgs/m² | |
| 5mm | 2.0m | 20m | 288.00kgs/m² |
* Color/size can be produced according to needs. For more specifications, please contact us
* Regarding the dimensions in the Design, please refer to the final production dimensions for reference only.
* There may be a slight difference between the weight of a single roll and the final delivery weight, which shall be subject to the final delivery purchase weight.

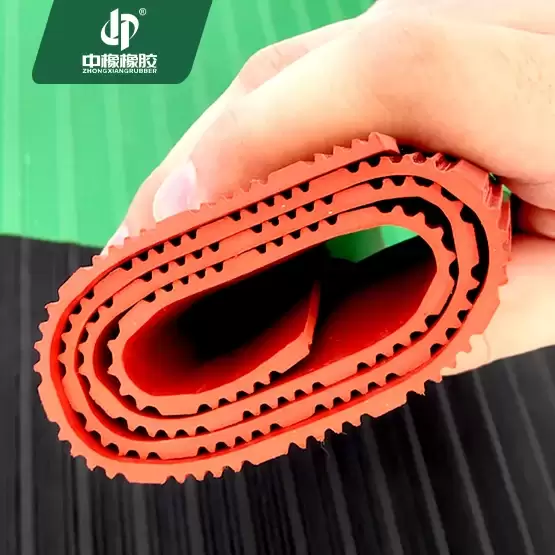

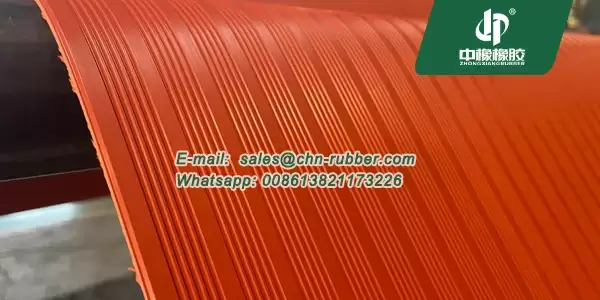

Corrugated rib runner is widely used in walkways, workstations, and industrial zones where floor grip and surface protection are essential. With wide-spaced ridges running lengthwise, the corrugated rubber sheet offers traction in both dry and wet environments, reducing the risk of slipping.
Produced by Tianjin China Rubber Co.,Ltd, each corrugated rubber sheet is crafted from solid rubber compounds suitable for moderate mechanical wear and chemical exposure. The ribbed pattern allows dirt, liquid, and debris to channel through easily, keeping walking paths cleaner and safer. Available in custom lengths and standard widths, corrugated rib runner is a practical flooring solution for commercial, transportation, and agricultural applications. Its flexibility makes it easy to install and roll up when needed.
