EPDM 30% 50% 70% 100% content ozone resistant rubber
Quick Specifications Overview
- Polymer Base: Premium EPDM Rubber (Ethylene Propylene Diene Monomer)
- Standard Color: Industrial Black (Custom colors available upon request)
- Thickness Range: 1mm to 100mm (Thicknesses above 15mm supplied in sheet form)
- Available Widths: 1.0m, 1.2m, 1.4m, 1.5m, 1.6m, 1.8m, 2.0m
- Standard Roll Lengths: 5m, 10m, 15m, 20m (Custom dimensions upon request)
- Surface Finish Options: Smooth on both sides, cloth impression, or textured anti-slip finish
- Reinforcement Layer: Optional Nylon Canvas, Polyester Fabric, Mesh Fabric, or Encrypted Canvas
- Supply Formats: Bulk Roll / Cut Sheet / Strip / Die-Cut Gaskets
Industrial Grade EPDM Ozone Resistant Rubber Sheet Roll
Engineered for extreme environmental exposure, the high-performance ozone resistant rubber produced by Tianjin China Rubber Co., Ltd provides superior resistance to ozone cracking, UV radiation, and severe atmospheric aging. Formulated from premium EPDM polymer, its saturated molecular backbone prevents surface degradation, chalking, and hardening—making it the essential material choice for long-term outdoor sealing, roofing membranes, and HVAC weatherproofing.
Known for exceptional environmental resilience, our EPDM ozone resistant rubber maintains structural flexibility across a broad temperature operating range. It performs flawlessly in environments heavy with oxygen, sunlight, steam, and mild oxidizing chemicals. Gaskets, expansion joints, and protective liners manufactured from this material deliver reliable containment, drastically reducing maintenance downtime and replacement cycles in coastal, desert, or high-pollution industrial regions.
Available in flexible roll widths up to 2.0 meters and thicknesses up to 100mm, our ozone resistant rubber sheets can be customized with high-tensile fabric insertions (such as nylon or mesh canvas) for added tear resistance. As a direct factory manufacturer, we support global distributors and engineering contractors with customized polymer ratios, roll lengths, and private-label packaging.
EPDM Ozone Resistant Rubber Physical Parameters
| Product Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
|---|---|---|---|---|
| ZXZRS20001EPDM-PC100% | 1.30 g/cm³ | 60 ± 5 Shore A | 13 MPa | 450% |
| ZXZRS20001EPDM-PC70% | 1.35 g/cm³ | 60 ± 5 Shore A | 10 MPa | 400% |
| ZXZRS20001EPDM-PC50% | 1.40 g/cm³ | 60 ± 5 Shore A | 7 - 8 MPa | 350% |
| ZXZRS20001EPDM-PC30% | 1.40 g/cm³ | 60 ± 5 Shore A | 5 MPa | 280% |
Standard Roll Sizes & Theoretical Weights
| Thickness (mm) | Width | Length | Fabric Insertion | Theoretical Weight |
|---|---|---|---|---|
| 1 mm | 1 m | 10 m | / | 10.4 kgs/m² |
| 1.5 mm | 1 m | 10 m | / | 16.9 kgs/m² |
| 1.7 mm | 1 m | 10 m | 1 PLY | 19.5 kgs/m² |
| 2 mm | 1 m | 10 m | 1 PLY | 23.4 kgs/m² |
| 3 mm | 1 m | 10 m | 1 PLY | 36.4 kgs/m² |
| 4 mm | 1 m | 10 m | 1 PLY | 49.4 kgs/m² |
| 5 mm | 1 m | 10 m | 2 PLY | 62.4 kgs/m² |
| 6 mm | 1 m | 10 m | 3 PLY | 75.4 kgs/m² |
| 8 mm | 1 m | 10 m | 4 PLY | 101.4 kgs/m² |
| 10 mm | 1 m | 10 m | 5 PLY | 130 kgs/m² |
| 12 mm | 1 m | 2 m | 8 PLY | 31.2 kgs/m² |
| 15 mm | 1 m | 2 m | 10 PLY | 39 kgs/m² |
| 20 mm | 1 m | 2 m | ≥ 10 PLY | 52 kgs/m² |
| 25 mm | 1 m | 2 m | ≥ 10 PLY | 65 kgs/m² |
1. All specifications and dimensions above are subject to standard manufacturing ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the EPDM rubber sheet products listed. Other non-standard specifications can be manufactured upon request.
4. Roll weights provided in the table are theoretical estimates. Actual weight per roll may vary due to compound density variations and fabric reinforcement plies.
Ozone & UV Resistance Rating Performance
| Polymer Content | ZXZRS20001EPDM-PC20% | ZXZRS20001EPDM-PC30% | ZXZRS20001EPDM-PC50% | ZXZRS20001EPDM-PC70% | ZXZRS20001EPDM-PC100% |
|---|---|---|---|---|---|
| Outdoor Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
| Ozone Exposure | Regular | Excellent | Excellent | Excellent | Excellent |
1. Atmospheric and chemical resistance values are intended as general references based on standard laboratory testing.
2. Actual performance may vary depending on atmospheric ozone concentrations, operating temperatures, and exposure duration.
3. Detailed technical advice and custom formulation testing are available upon request from our engineering team.

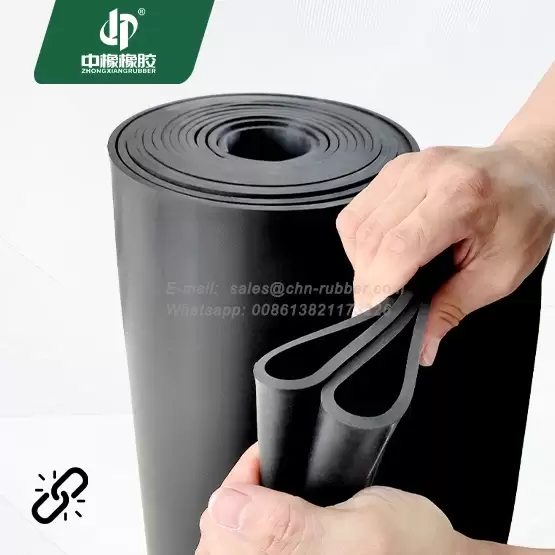

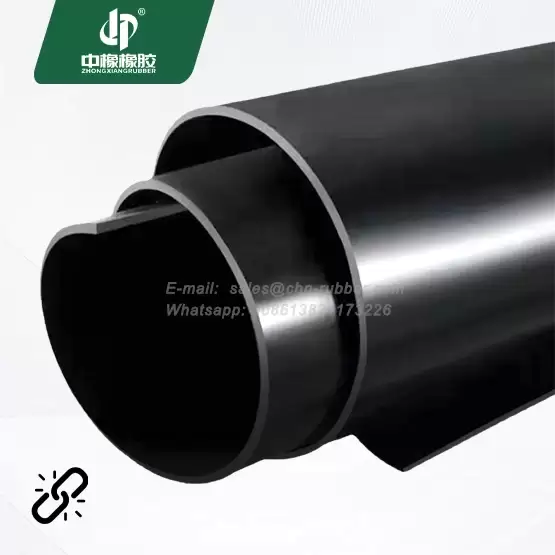

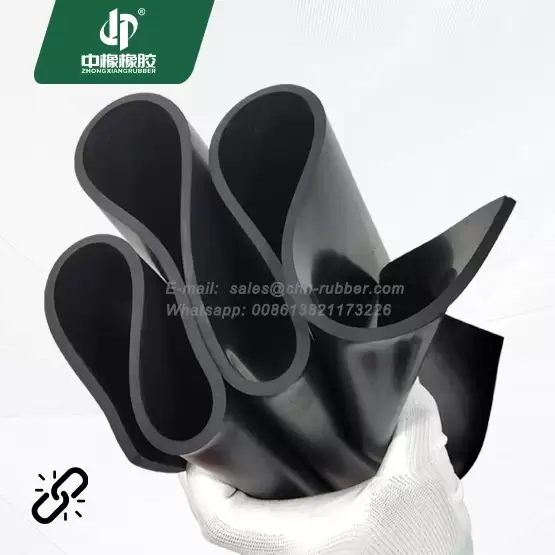

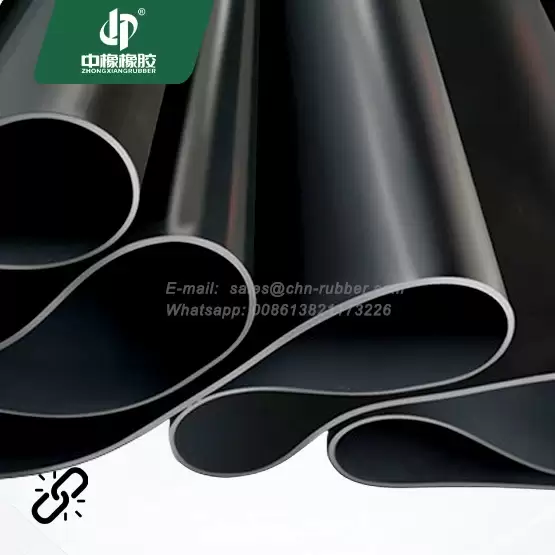

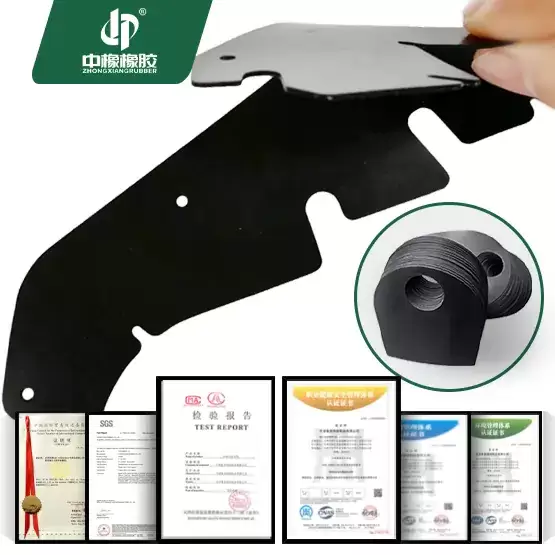

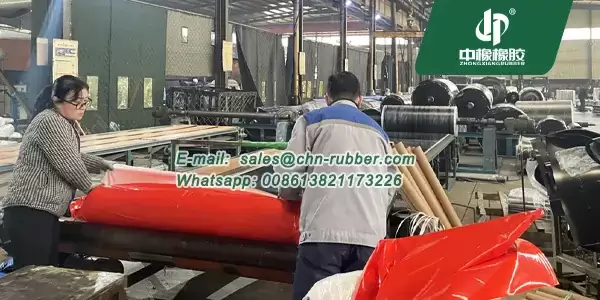

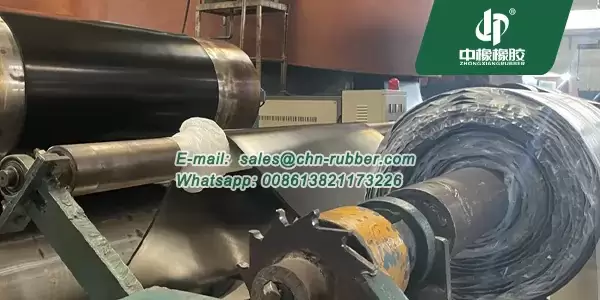

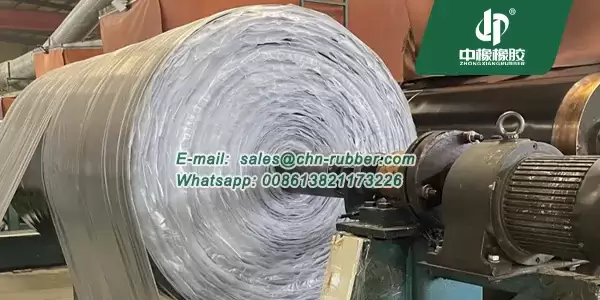

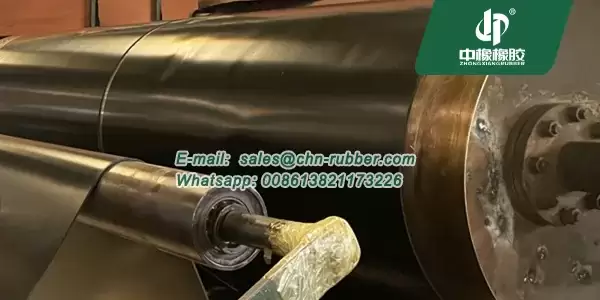

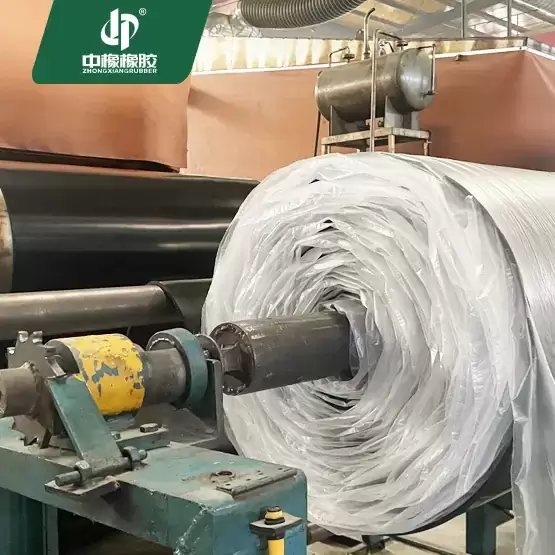

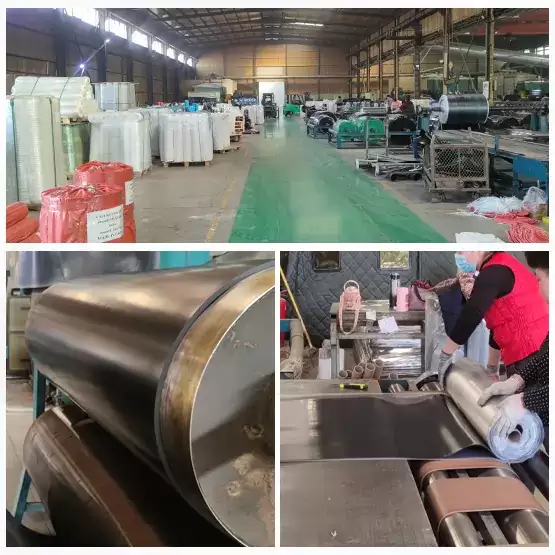

Product Display & Details
Customization & Export Packaging

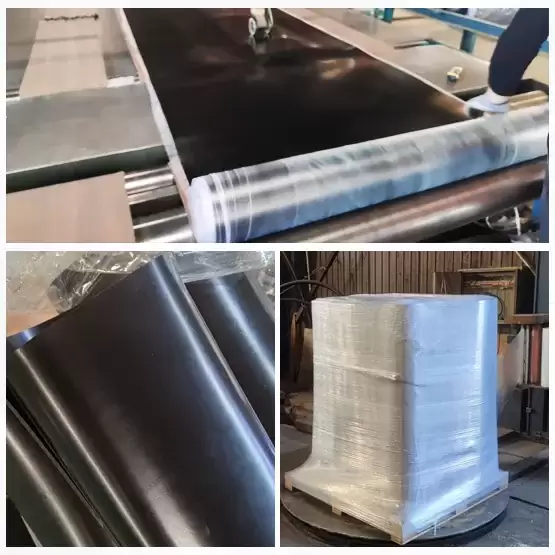

Tianjin China Rubber Co., Ltd provides full size, hardness, polymer density, and fabric reinforcement customization for EPDM ozone resistant rubber sheets. Export packaging includes protective inner plastic film, heavy-duty PP woven bags, and export-grade wooden pallets. Private labeling, custom logos, and custom shipping marks are fully supported for OEM/ODM partners.
* B2B Supply Scope: We manufacture and supply in bulk (FCL/LCL) for international industrial distributors, gasket fabricators, and engineering contractors. We do not process individual retail orders.
