Product
Neoprene 30% 50% 70% 100% content rubber sheet
Polymer: Neoprene rubber
Color: Black

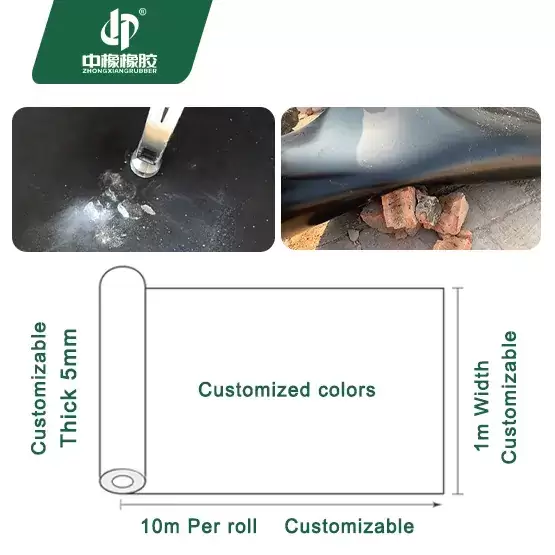

Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Neoprene UV Resistance Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20011CR-PC100% | 1.3g/cm³ | 60+/-5 Shore A | 10-12Mpa | 420% |
| ZXZRS20011CR-PC70% | 1.3g/cm³ | 60+/-5 Shore A | 9-10Mpa | 380% |
| ZXZRS20011CR-PC50% | 1.4g/cm³ | 60+/-5 Shore A | 7-8Mpa | 320% |
| ZXZRS20011CR-PC30% | 1.4g/cm³ | 60+/-5 Shore A | 5Mpa | 280% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 10m | / | 10.4kgs/m² |
| 1.5 | 1m | 10m | / | 16.9kgs/m² |
| 1.7 | 1m | 10m | 1PLY | 19.5kgs/m² |
| 2 | 1m | 10m | 1PLY | 23.4kgs/m² |
| 3 | 1m | 10m | 1PLY | 36.4kgs/m² |
| 4 | 1m | 10m | 1PLY | 49.4kgs/m² |
| 5 | 1m | 10m | 2PLY | 62.4kgs/m² |
| 6 | 1m | 10m | 3PLY | 75.4kgs/m² |
| 8 | 1m | 10m | 4PLY | 101.4kgs/m² |
| 10 | 1m | 10m | 5PLY | 130kgs/m² |
| 12 | 1m | 2m | 8PLY | 31.2kgs/m² |
| 15 | 1m | 2m | 10PLY | 39kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 52kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 65kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
UV Resistance Properties
| Polymer content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Neoprene rubber offers reliable stability when exposed to outdoor conditions, making it a preferred material in aging-resistant applications. With inherent resistance to sunlight, ozone, and oxidation, it remains effective in sealing, insulation, and vibration isolation where environmental exposure is a concern. Products made with neoprene rubber uv resistance can maintain their properties over extended periods under UV-rich or humid environments.
Common applications include roofing components, marine seals, HVAC insulation, and outdoor pads. The balanced chemical structure of neoprene rubber uv resistance helps minimize cracking and embrittlement caused by long-term exposure to light and heat. The material’s performance in resisting weathering extends its life cycle, especially in industrial zones or coastal regions.
Available in a range of thicknesses and hardness levels, neoprene rubber uv resistance sheets support reliable sealing and insulation functions in both mechanical and architectural systems. Resistance to moderate oils and chemicals adds to its versatility in multipurpose sealing and gasketing needs.
