Product
Nitrile 30% 50% 70% 100% content rubber uv resistance
Polymer: Nitrile rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.

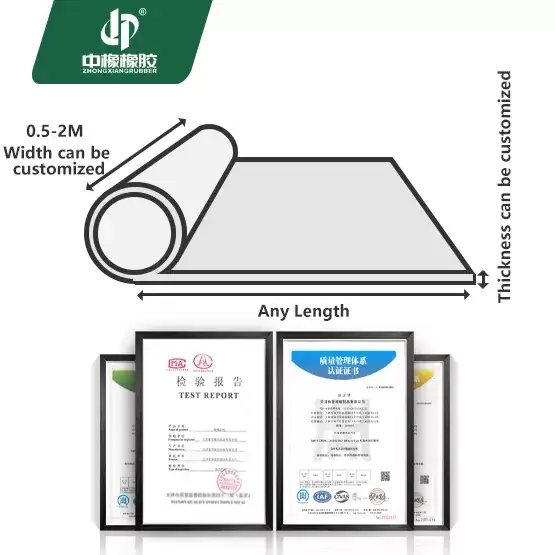

Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
NBR UV Resistance Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20011CR-PC100% | 1.3g/cm³ | 60+/-5 Shore A | 9-10Mpa | 450% |
| ZXZRS20011CR-PC70% | 1.35g/cm³ | 60+/-5 Shore A | 8Mpa | 380% |
| ZXZRS20011CR-PC50% | 1.4g/cm³ | 60+/-5 Shore A | 6Mpa | 320% |
| ZXZRS20011CR-PC30% | 1.5g/cm³ | 60+/-5 Shore A | 5Mpa | 280% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 10m | / | 10.4kgs/m² |
| 1.5 | 1m | 10m | / | 16.9kgs/m² |
| 1.7 | 1m | 10m | 1PLY | 19.5kgs/m² |
| 2 | 1m | 10m | 1PLY | 23.4kgs/m² |
| 3 | 1m | 10m | 1PLY | 36.4kgs/m² |
| 4 | 1m | 10m | 1PLY | 49.4kgs/m² |
| 5 | 1m | 10m | 2PLY | 62.4kgs/m² |
| 6 | 1m | 10m | 3PLY | 75.4kgs/m² |
| 8 | 1m | 10m | 4PLY | 101.4kgs/m² |
| 10 | 1m | 10m | 5PLY | 130kgs/m² |
| 12 | 1m | 2m | 8PLY | 31.2kgs/m² |
| 15 | 1m | 2m | 10PLY | 39kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 52kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 65kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
UV Resistance Properties
| Polymer content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Regular | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Nitrile rubber is well-known for its oil and fuel resistance, but when combined with improved weathering properties, it becomes a reliable material for outdoor and high-exposure environments. Engineered for resilience in environments with frequent sun exposure, it maintains its performance under UV radiation, ozone, and oxygen.
The nitrile rubber uv resistance makes it suitable for sealing applications in agriculture, mining, power generation, and transport. Unlike standard rubber materials that degrade under constant sunlight, this composition helps extend the life of gaskets, protective covers, and lining components. It resists cracking, hardening, and color fading over time, maintaining elasticity in both hot and cold conditions.
Common applications include outdoor machinery pads, oil-resistant barrier sheets, and weather-exposed enclosures. The material retains physical stability, especially in places where both fuel resistance and nitrile rubber uv resistance are required together. This includes fuel system gaskets, mechanical vibration absorbers, and marine service components.
Thickness, hardness, and roll size can be adjusted to fit industry-specific needs. Whether used in rooftop HVAC units, solar infrastructure, or field-based equipment, nitrile rubber uv resistance helps reduce aging-related failures and improves overall equipment longevity.
