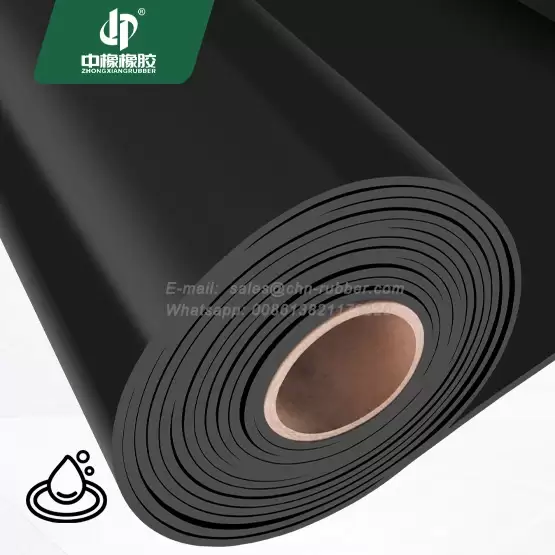

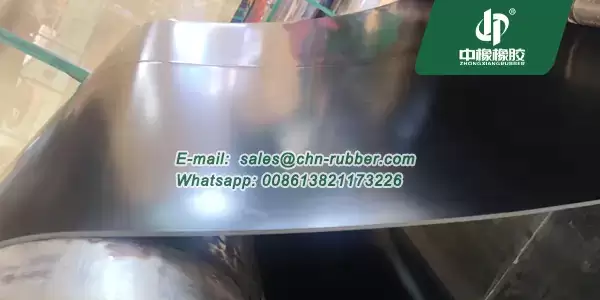

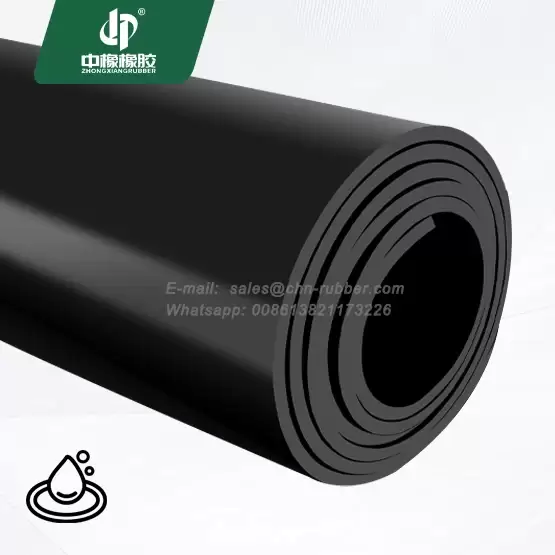

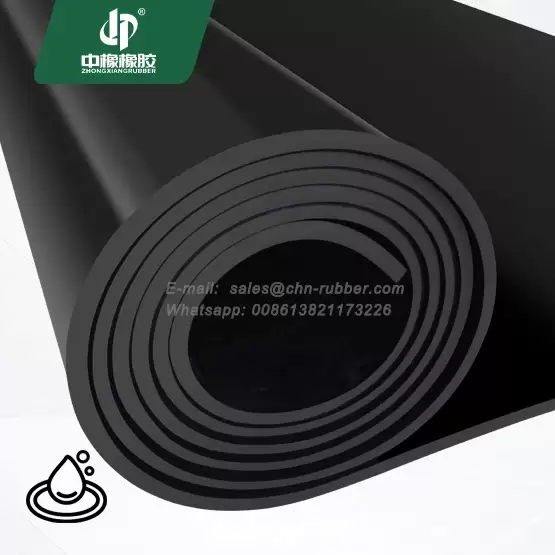

EPDM content 30% 50% 70% 100% epdm oil resistance rubber
Polymer: EPDM rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs

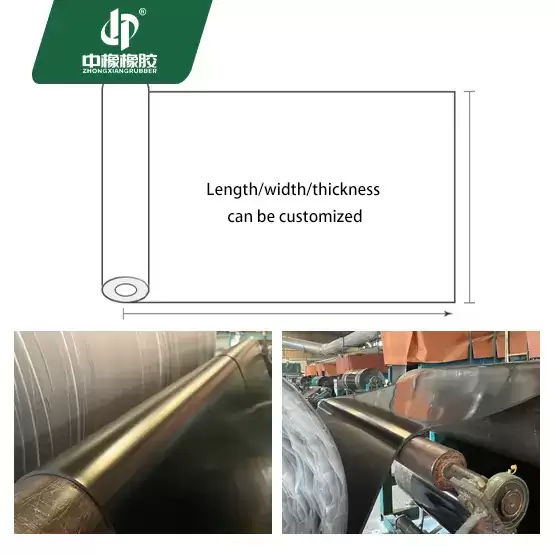

Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.

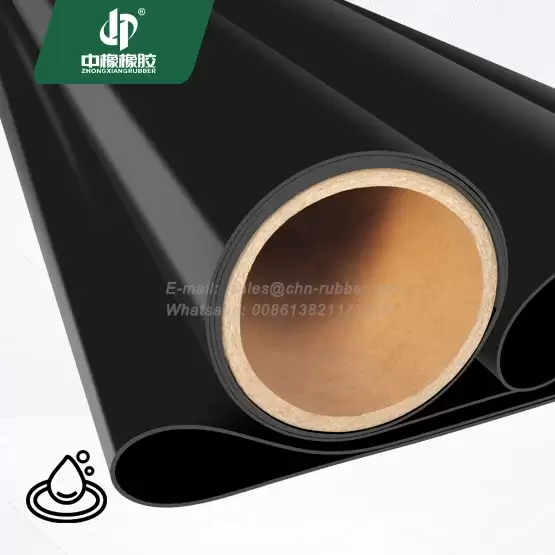

Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

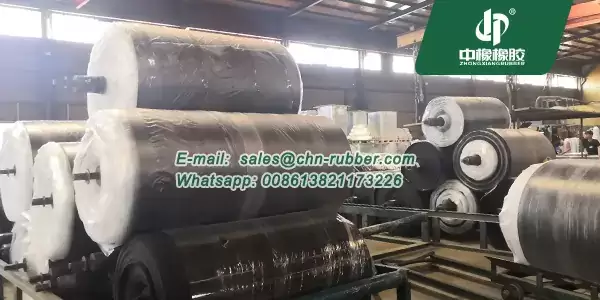

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
EPDM Oil Resistance Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20011OR-PC30% | 1.4g/cm³ | 60+/-5 Shore A | 5Mpa | 200% |
| ZXZRS20011OR-PC50% | 1.4g/cm³ | 60+/-5 Shore A | 7-8Mpa | 350% |
| ZXZRS20011OR-PC70% | 1.35g/cm³ | 60+/-5 Shore A | 10Mpa | 400% |
| ZXZRS20011OR-PC100% | 1.3g/cm³ | 60+/-5 Shore A | 13Mpa | 450% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 10m | / | 10.4kgs/m² |
| 1.5 | 1m | 10m | / | 16.9kgs/m² |
| 1.7 | 1m | 10m | 1PLY | 19.5kgs/m² |
| 2 | 1m | 10m | 1PLY | 23.4kgs/m² |
| 3 | 1m | 10m | 1PLY | 36.4kgs/m² |
| 4 | 1m | 10m | 1PLY | 49.4kgs/m² |
| 5 | 1m | 10m | 2PLY | 62.4kgs/m² |
| 6 | 1m | 10m | 3PLY | 75.4kgs/m² |
| 8 | 1m | 10m | 4PLY | 101.4kgs/m² |
| 10 | 1m | 10m | 5PLY | 130kgs/m² |
| 12 | 1m | 2m | 8PLY | 31.2kgs/m² |
| 15 | 1m | 2m | 10PLY | 39kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 52kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 65kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Oil Resistance Properties
| Polymer content | ZXZRS20011OR-PC20% | ZXZRS20011OR-PC30% | ZXZRS20011OR-PC50% | ZXZRS20011OR-PC70% | ZXZRS20011OR-PC100% |
| Lubricating Oils | Regular | --- | Regular | Regular | Regular |
| Vegitable Oil | Regular | Regular | Regular | Regular | Regular |
| Animal Oil | Regular | Regular | Regular | Regular | Regular |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Tianjin China Rubber Co.,Ltd provides a versatile range of EPDM oil resistance rubber sheets formulated to meet the combined demands of oil contact and harsh environmental conditions. With EPDM content options ranging from 30% to 100%, this product delivers scalable performance across different industrial and mechanical uses. Unlike standard rubbers, EPDM rubber oil resistance sheets maintain their integrity in light to moderate oil exposure while excelling in UV, ozone, steam, and high-temperature environments. These qualities make them ideal for sealing applications in HVAC systems, power generation units, and general-purpose mechanical linings.
Higher EPDM content ensures enhanced elasticity and epdm oil resistance, even in mixed chemical or weather-exposed environments. The sheets can be used for gaskets, flexible barrier linings, vibration isolation, and customized die-cut components in both indoor and outdoor systems. Each formulation is manufactured with precise control over hardness and density, making these epdm rubber oil resistance sheets a practical solution for systems requiring durable and long-life sealing under variable pressure and oil contact.
