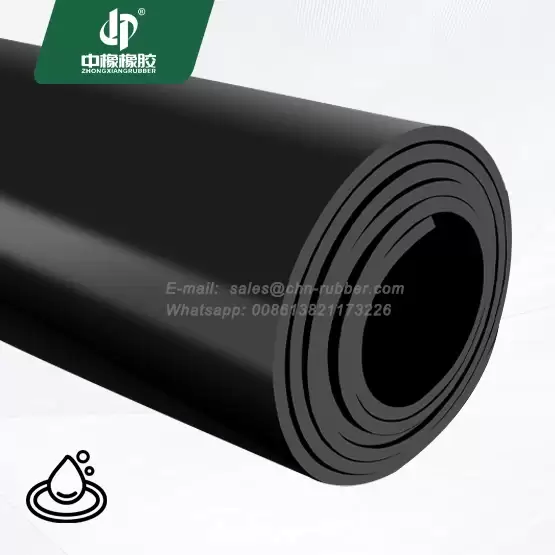

CR content 30% 50% 70% 100% oil resistance rubber sheet
Polymer: Neoprene rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

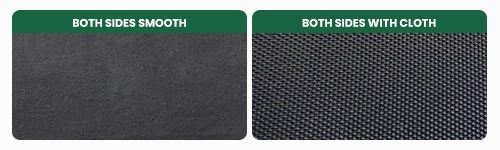

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.

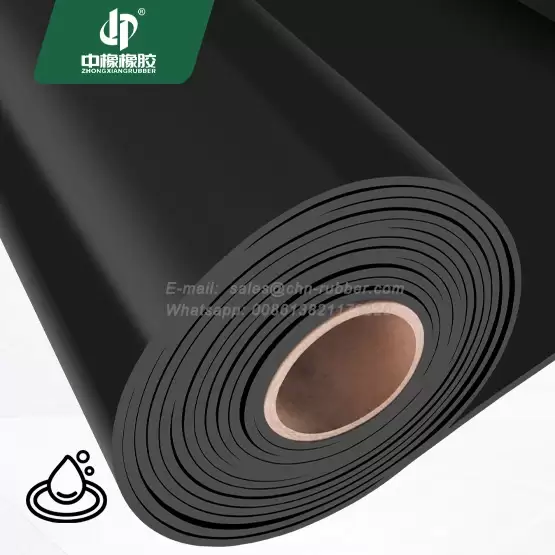

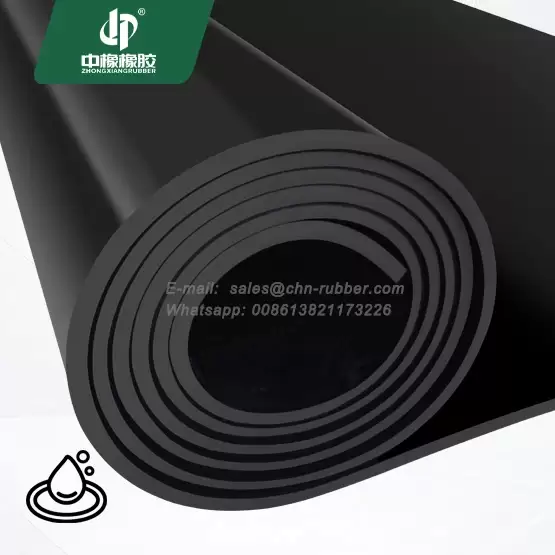

Customizable Shapes: Roll / Sheet / Strip

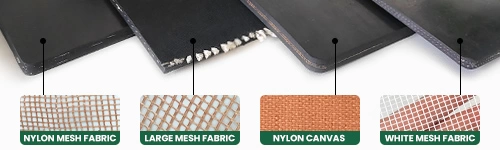

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

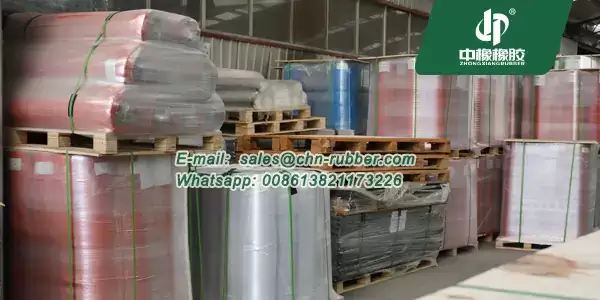

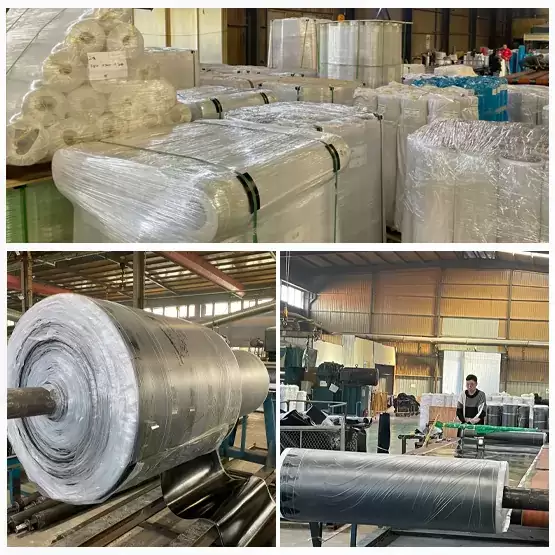

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Neoprene Rubber Roll Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20011OR-PC100% | 1.3g/cm³ | 60+/-5 Shore A | 10-12Mpa | 420% |
| ZXZRS20011OR-PC70% | 1.3g/cm³ | 60+/-5 Shore A | 9-10Mpa | 380% |
| ZXZRS20011OR-PC50% | 1.4g/cm³ | 60+/-5 Shore A | 7-8Mpa | 320% |
| ZXZRS20011OR-PC30% | 1.4g/cm³ | 60+/-5 Shore A | 5Mpa | 280% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1m | 10m | / | 10.4kgs/m² |
| 1.5 | 1m | 10m | / | 16.9kgs/m² |
| 1.7 | 1m | 10m | 1PLY | 19.5kgs/m² |
| 2 | 1m | 10m | 1PLY | 23.4kgs/m² |
| 3 | 1m | 10m | 1PLY | 36.4kgs/m² |
| 4 | 1m | 10m | 1PLY | 49.4kgs/m² |
| 5 | 1m | 10m | 2PLY | 62.4kgs/m² |
| 6 | 1m | 10m | 3PLY | 75.4kgs/m² |
| 8 | 1m | 10m | 4PLY | 101.4kgs/m² |
| 10 | 1m | 10m | 5PLY | 130kgs/m² |
| 12 | 1m | 2m | 8PLY | 31.2kgs/m² |
| 15 | 1m | 2m | 10PLY | 39kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 52kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 65kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

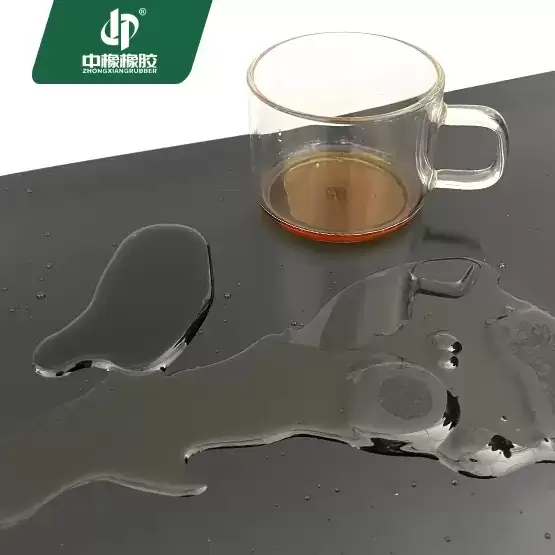

Oil Resistance Properties
| Polymer content | ZXZRS20011OR-PC20% | ZXZRS20011OR-PC30% | ZXZRS20011OR-PC50% | ZXZRS20011OR-PC70% | ZXZRS20011OR-PC100% |
| Lubricating Oils | Regular | Regular | Regular | Regular | Excellent |
| Vegitable Oil | Poor | Poor | Regular | Excellent | Excellent |
| Animal Oil | Poor | Poor | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Neoprene oil resistance sheet, produced by Tianjin China Rubber Co.,Ltd, features customizable chloroprene content options ranging from 30% to 100%, meeting the needs of various oil-handling and industrial sealing environments. The material is engineered to deliver a stable performance where oil contact and weather exposure coexist. With excellent neoprene oil resistance, this rubber sheet is ideal for manufacturing gaskets, mechanical linings, and flexible protective barriers used in moderate to heavy-duty oil applications. The formulation resists oil-induced degradation such as swelling or softening, even under cyclic thermal and pressure conditions.
Chloroprene-based rubber balances oil resistance with superior weathering and flame retardant behavior. This neoprene oil resistance material is available in multiple grades—each providing increasing resistance with higher neoprene content, making it adaptable for environments ranging from workshop sealing to petrochemical insulation pads. By adjusting chloroprene concentration from 30% to 100%, Tianjin China Rubber Co.,Ltd ensures tailored performance across multiple industries including marine, automotive, and machinery maintenance.
