Product
Specific gravity 2.0 black fluoroelastomer sheet roll
Quick Specifications Overview
- Polymer Base: Premium Viton Rubber / FKM (Fluoroelastomer)
- Standard Color: Industrial Black (Custom colors available upon request)
- Thickness Range: 1mm to 100mm (Thicknesses above 15mm supplied in sheet form)
- Available Widths: 1.0m, 1.2m, 1.4m, 1.5m, 1.6m, 1.8m, 2.0m
- Standard Roll Lengths: 5m, 10m, 15m, 20m (Custom dimensions upon request)
- Surface Finish Options: Smooth on both sides, cloth impression, or anti-slip texture
- Reinforcement Layer: Optional Nylon Canvas, Polyester Fabric, Mesh Fabric, or Encrypted Canvas
- Supply Formats: Bulk Roll / Cut Sheet / Strip / Die-Cut Gaskets
Industrial High-Performance Fluoroelastomer Sheet & Viton Gasket Sheet
Engineered for exceptional resistance to aggressive fluids, synthetic lubricants, fuels, and elevated temperatures, our industrial-grade fluoroelastomer sheet delivers uncompromised reliability in chemically severe operations. Formulated with a high specific gravity of 2.0 g/cm³, this heavy-duty material offers high density and structural stability under extreme physical compression and thermal stress.
Widely converted into premium viton gasket sheet stock, this polymer grade retains a nominal hardness of 70 Shore A, ensuring high mechanical toughness without softening, cracking, or swelling when submerged in hot oils, hydraulic fluids, and concentrated acids. Its fluorinated polymer structure provides excellent long-term durability across chemical processing, automotive, aerospace, and power generation sectors.
Available in standard continuous rolls or custom-cut sheet formats, our fluoroelastomer sheet integrates seamlessly into high-precision gasket cutting and sealing lines. As a direct factory manufacturer, Tianjin China Rubber Co., Ltd supports global B2B clients with tailored sheet thicknesses, high-tensile fabric insertion layers, and customized export packaging.
Fluoroelastomer Sheet Physical Parameters
| Product Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
|---|---|---|---|---|
| ZXZRS20101V-70 | 2.0 g/cm³ | 70 ± 5 Shore A | 7 - 8 MPa | 250% |
Viton Gasket Sheet Standard Sizes & Theoretical Weights
| Thickness (mm) | Width | Length | Fabric Insertion | Theoretical Weight |
|---|---|---|---|---|
| 1 mm | 1 m | 10 m | / | 15.2 kgs/m² |
| 1.5 mm | 1 m | 10 m | / | 24.7 kgs/m² |
| 2 mm | 1 m | 10 m | 1 PLY | 34.2 kgs/m² |
| 3 mm | 1 m | 10 m | 1 PLY | 53.2 kgs/m² |
| 4 mm | 1 m | 10 m | 1 PLY | 72.2 kgs/m² |
| 5 mm | 1 m | 10 m | 2 PLY | 91.2 kgs/m² |
| 6 mm | 1 m | 10 m | 3 PLY | 110.2 kgs/m² |
| 8 mm | 1 m | 10 m | 4 PLY | 148.2 kgs/m² |
| 10 mm | 1 m | 10 m | 5 PLY | 190 kgs/m² |
| 12 mm | 1 m | 1 m | 8 PLY | 22.8 kgs/m² |
| 15 mm | 1 m | 1 m | 10 PLY | 28.5 kgs/m² |
| 20 mm | 1 m | 1 m | 10 PLY | 38 kgs/m² |
1. All specifications and dimensions above are subject to standard manufacturing ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the fluoroelastomer rubber sheet products listed. Other non-standard specifications can be manufactured upon request.
4. Roll weights provided in the table are theoretical estimates. Actual weight per roll may vary due to compound density variations and fabric reinforcement plies.
Product Display & Details
Customization & Export Packaging

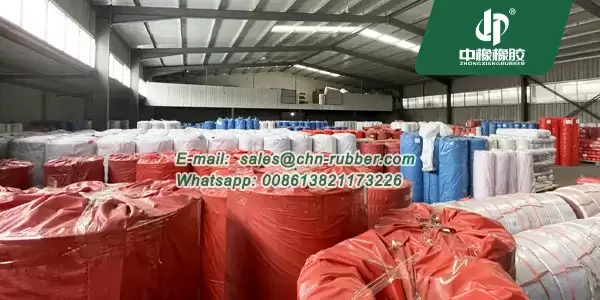

Tianjin China Rubber Co., Ltd provides full size, hardness, polymer density, and fabric reinforcement customization for FKM fluoroelastomer sheet products. Export packaging includes protective inner plastic film, heavy-duty PP woven bags, and export-grade wooden pallets. Private labeling, custom logos, and custom shipping marks are fully supported for OEM/ODM partners.
* B2B Supply Scope: We manufacture and supply in bulk (FCL/LCL) for international industrial distributors, gasket fabricators, and engineering contractors. We do not process individual retail orders.
