Product

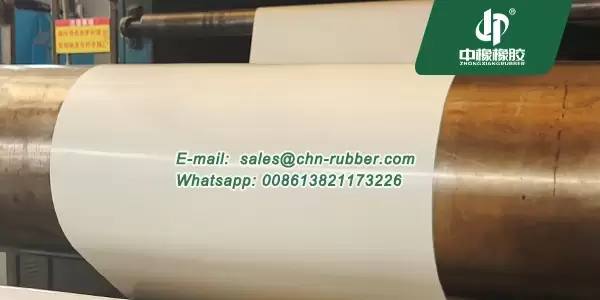

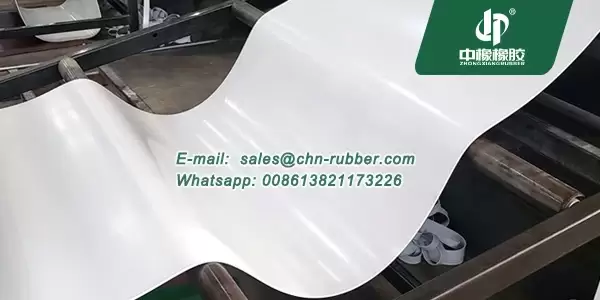

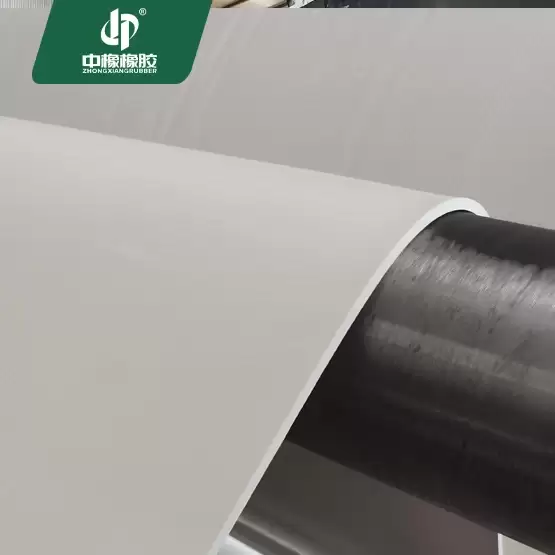

Hardness 60 EPDM FDA Grade rubber sheet roll
Polymer: EPDM rubber
Color: White

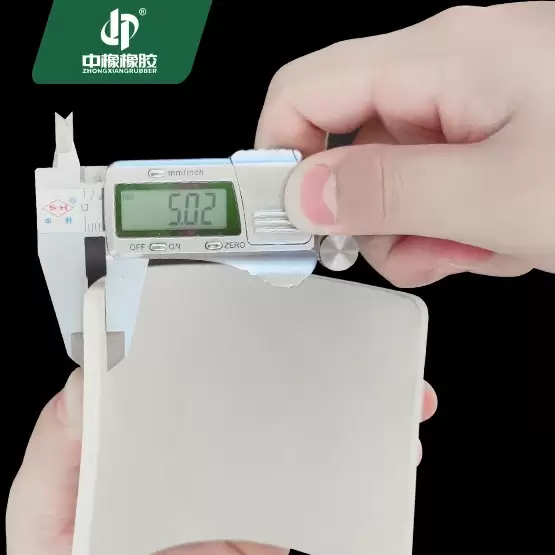

Thickness: Thickness ranges from 1mm to 30mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

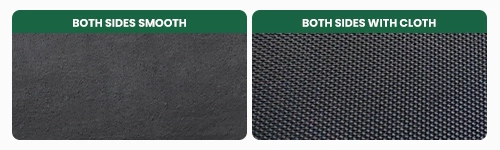

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

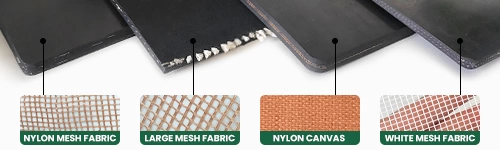

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

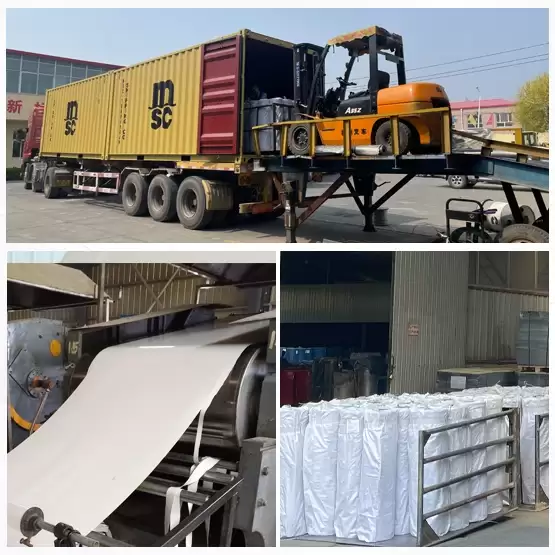

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
FDA Grade EPDM Rubber Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20308FG-60 | 1.5g/cm³ | 60+/-5Shore A | 5min | 400% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 14.4kgs/m² |
| 1.5 | 1.2m | 10m | / | 23.4kgs/m² |
| 1.7 | 1.2m | 10m | 1PLY | 27kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 32.4kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 50.4kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 68.4kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 86.4kgs/m² |
| 6 | 1.2m | 10m | 3PLY | 104.4kgs/m² |
| 7 | 1.2m | 10m | 4PLY | 122.4kgs/m² |
| 8 | 1.2m | 10m | 5PLY | 140.4kgs/m² |
| 10 | 1.2m | 10m | 8PLY | 180kgs/m² |
| 12 | 1.2m | 10m | 10PLY | 216kgs/m² |
| 15 | 1.2m | 10m | ≥10PLY | 270kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 60kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 75kgs/m² |
| 30 | 1m | 2m | ≥10PLY | 90kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

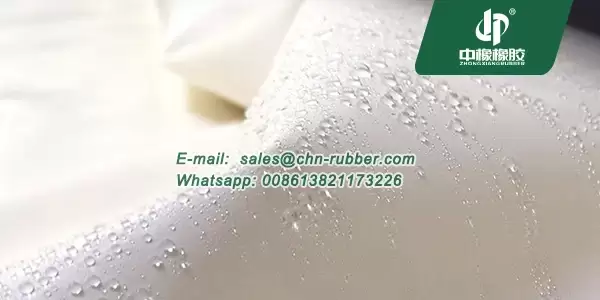

White EPDM rubber is widely chosen for environments requiring non-marking, hygienic sealing with resistance to water, steam, and weathering. As an FDA EPDM rubber product, it complies with FDA 21 CFR 177.2600, making it ideal for food contact, beverage, and pharmaceutical processing areas.
The white EPDM rubber maintains flexibility across a wide temperature range, offering long-term performance under exposure to UV, ozone, and aging. Its smooth surface and clean appearance support use in cleanrooms and hygiene-sensitive applications.

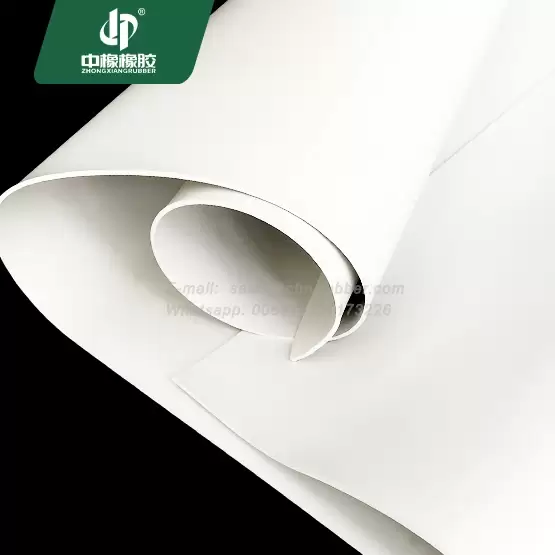

Available in sheet and white EPDM roll formats, it suits gaskets, liners, and protective barriers where FDA compliance and environmental resistance are required. Each white EPDM roll can be customized in width and thickness for varied industrial needs.
