Neoprene CR rubber square setting blocks
Polymer: Neoprene Rubber
Color: Black / Red / Green / Blue and etc.
Thickness: Customized for specific applications; 1mm - 100mm
Standard Size: Customized for specific applications
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Neoprene Rubber Sheet Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20001C-55 | 1.3+/-0.05g/cm³ | 55+/-5 Shore A | 8Mpa | 400% |
| ZXZRS20001C-55 | 1.35+/-0.05g/cm³ | 55+/-5 Shore A | 6-7Mpa | 350% |
| ZXZRS20001C-60 | 1.4+/-0.05g/cm³ | 60+/-5 Shore A | 5-6Mpa | 320% |
| ZXZRS20001C-60 | 1.45+/-0.05g/cm³ | 60+/-5 Shore A | 4-5Mpa | 260% |
| ZXZRS20001C-65 | 1.5+/-0.05g/cm³ | 65+/-5 Shore A | 3-4Mpa | 200% |
| ZXZRS20001C-70 | 1.6+/-0.05g/cm³ | 70+/-5 Shore A | 2.5-3Mpa | 180% |
| ZXZRS20001C-75 | 1.7+/-0.05g/cm³ | 75+/-5 Shore A | 2-2.5Mpa | 160% |
| ZXZRS20001C-75 | 1.8+/-0.05g/cm³ | 75+/-5 Shore A | 1.5Mpa | ≤140% |
| ZXZRS20001C-80 | 1.9+/-0.05g/cm³ | 80+/-5 Shore A | 1-1.5Mpa | 100% |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

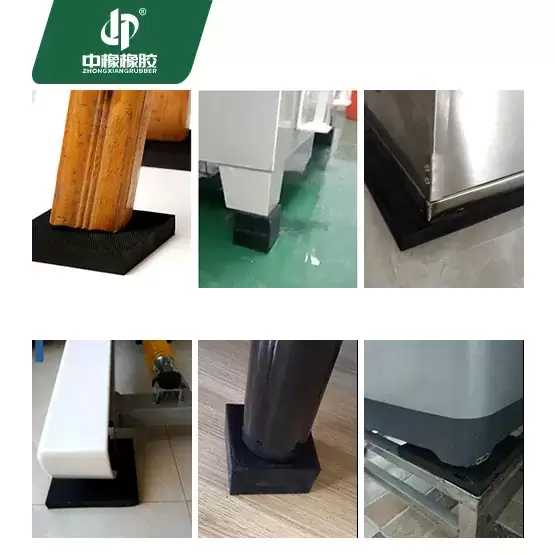

Tianjin China Rubber Co., Ltd manufactures high-quality neoprene blocks designed for structural support, vibration isolation, and load distribution. These blocks are widely used in glazing, curtain wall systems, and equipment mounting applications, where stability and elasticity are essential.
The rubber setting blocks are produced from medium to high-hardness neoprene rubber, offering reliable resistance to UV exposure, moisture, and moderate chemicals. Their ability to maintain shape and elasticity under compression makes them suitable for both static and moving joints. Available in standard and custom sizes, the square rubber blocks are precision cut for consistent thickness and dimension control. Each block supports balanced load transfer between components, preventing glass breakage, frame distortion, or surface damage.
Tianjin China Rubber Co., Ltd supplies rubber setting blocks in various densities and thicknesses to accommodate different structural or sealing requirements. Whether used in metal-to-glass assemblies or heavy-duty equipment feet, these neoprene blocks provide long-lasting mechanical and environmental performance.
