Green anti static mat roll 3mm 5mm thickness
Quick Specifications Overview
- Polymer Base: High-grade Synthetic Rubber (SBR/NBR Blend)
- Standard Color: Green Top Layer / Black Conductive Bottom Layer

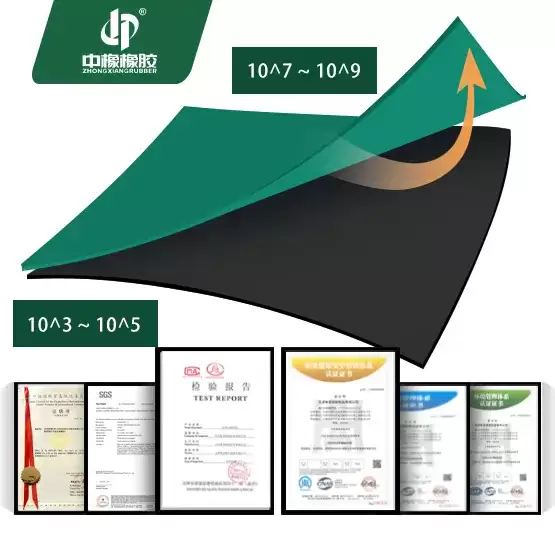

- Top Surface Resistivity: 10⁷ ~ 10⁹ Ω/sq (Static Dissipative)
- Back Surface Resistivity: 10³ ~ 10⁵ Ω (Conductive Layer)
- Standard Thickness: 2mm, 3mm, 5mm (Up to 25mm for heavy-duty sheets)
- Available Widths: 1.0m, 1.2m, 1.4m, 1.5m, 1.6m, 1.8m, 2.0m
- Roll Lengths: 5m, 10m, 15m, 20m (Custom dimensions available upon request)
- Surface Finish Options: Both sides smooth, cloth-impression finish, or textured anti-slip finish
- Supply Formats: Bulk Roll / Cut-to-Size Sheet / Strip
Green ESD Anti Static Mat Roll for Industrial Workstations
The green esd anti static mat produced by Tianjin China Rubber Co., Ltd provides reliable electrostatic discharge protection in static-sensitive workplaces. Commonly used in electronics manufacturing, PCB assembly lines, cleanroom environments, and laboratories, it supports safe operations and component longevity. Each anti static mat roll includes a surface layer with static-dissipative properties and a conductive base layer to ensure consistent grounding performance. This dual-layer design efficiently channels static buildup away from personnel and sensitive equipment, reducing the risk of catastrophic ESD damage during handling or assembly.
Made from durable synthetic rubber with a density suited for rigorous industrial conditions, our green esd anti static mat resists abrasion, oils, and common workplace chemicals. It performs exceptionally well under mechanical stress, maintaining its anti-static functionality even in high-traffic or continuous-use zones. Supplied in standard roll format, an anti static mat roll can be easily cut to fit workbenches, tool areas, or equipment flooring. Its textured surface option improves grip without compromising the effectiveness of static dissipation.
ESD Anti Static Mat Performance Parameters & Specifications
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
|---|---|---|---|---|
| ZXZRS20404ES-65 | 1.5 g/cm³ | 65 ± 5 Shore A | 3 MPa | 200% |
| Thickness (mm) | Width | Length | Fabric Insertion | Theoretical Weight |
|---|---|---|---|---|
| 1 mm | 1.2 m | 10 m | / | 14.4 kgs/m² |
| 2 mm | 1.2 m | 10 m | 1 PLY | 32.4 kgs/m² |
| 3 mm | 1.2 m | 1 PLY | 1 PLY | 50.4 kgs/m² |
| 4 mm | 1.2 m | 10 m | 1 PLY | 68.4 kgs/m² |
| 5 mm | 1.2 m | 10 m | 2 PLY | 86.4 kgs/m² |
| 6 mm | 1.2 m | 10 m | 3 PLY | 104.4 kgs/m² |
| 7 mm | 1.2 m | 10 m | 3 PLY | 122.4 kgs/m² |
| 8 mm | 1.2 m | 10 m | 4 PLY | 140.4 kgs/m² |
| 10 mm | 1.0 m | 10 m | 5 PLY | 150 kgs/m² |
| 12 mm | 1.0 m | 10 m | 8 PLY | 180 kgs/m² |
| 15 mm | 1.0 m | 2 m | 10 PLY | 45 kgs/m² |
| 20 mm | 1.0 m | 2 m | 10 PLY | 60 kgs/m² |
| 25 mm | 1.0 m | 2 m | 10 PLY | 75 kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other custom specifications can be manufactured upon request.
4. Weights provided are theoretical values; actual product weights may vary due to production tolerances. Customized parameters in width, length, or thickness will impact final weight.

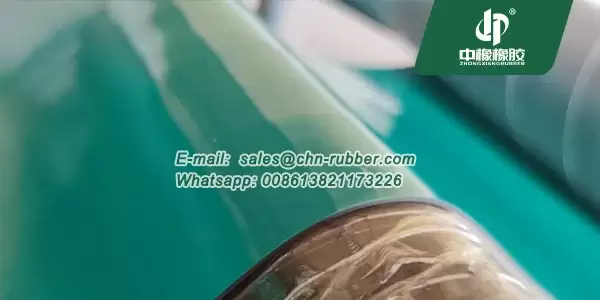

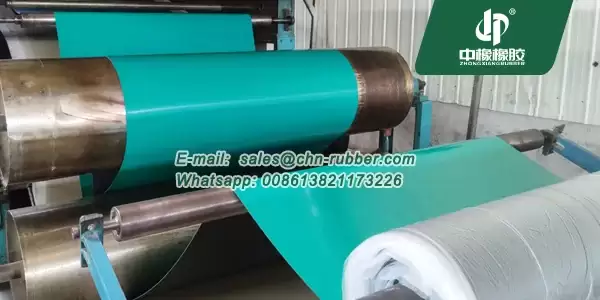

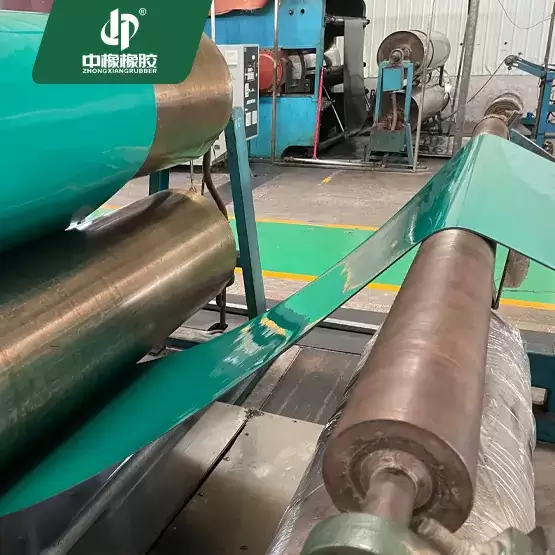

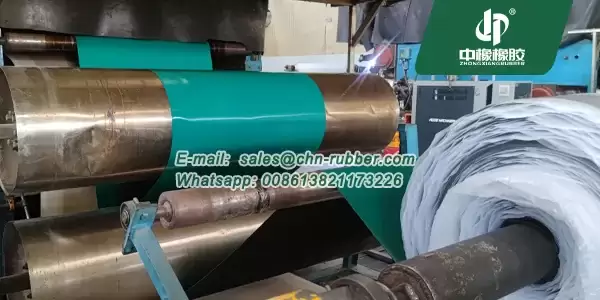

Product Display & Details

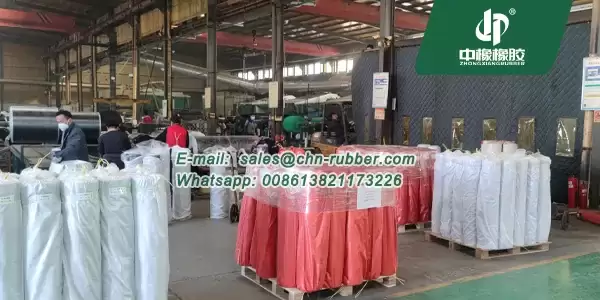

Customization & Export Packaging
Tianjin China Rubber Co., Ltd provides full size and surface resistance customization for the green esd anti static mat to meet varied ESD safety requirements across global markets. Standard packing includes protective plastic film, woven PP bags, and strong export wooden pallets. Custom branding, colors, printed logos, and special container labeling are fully supported for OEM/ODM distributors.
* B2B Supply Notice: We serve commercial distributors, electronics manufacturers, and industrial importers with bulk orders (FCL/LCL). We do not handle retail or small individual end-user orders.
