Product
Hardness 75 black electrically conductive rubber sheet
Polymer: Styrene Butadiene rubber
Color: Black

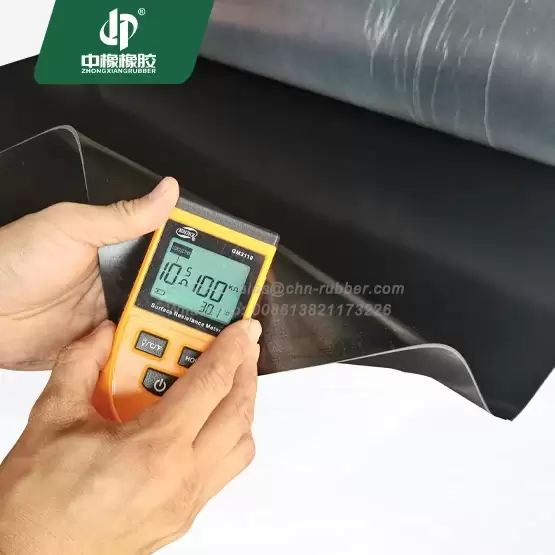

Resistance Value: 10^4 ~ 10^6
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.

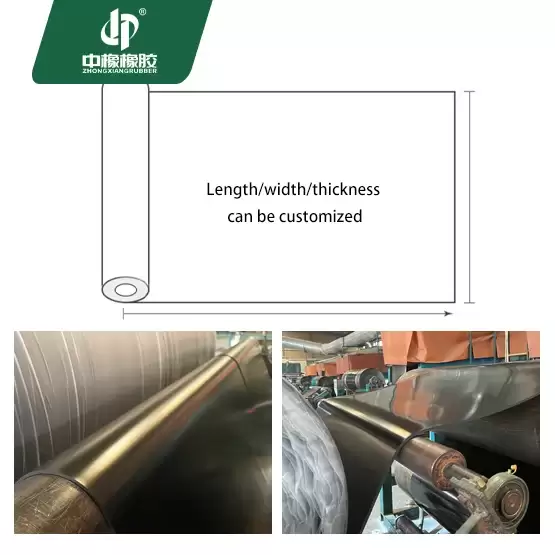

Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

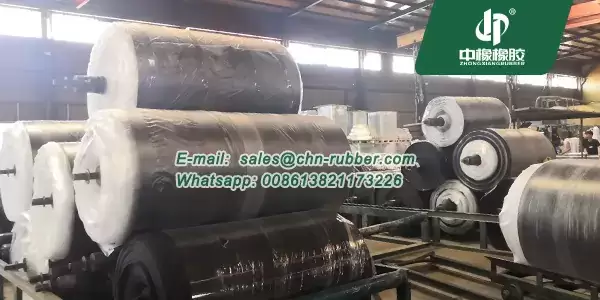

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Electrically Conductive Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20119CO-75 | 1.5g/cm³ | 75+/-5Shore A | 2Mpa | 130% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 14.4 |
| 1.5 | 1.2m | 10m | / | 23.4 |
| 1.7 | 1.2m | 10m | 1PLY | 23.4 |
| 2 | 1.2m | 10m | 1PLY | 32.4 |
| 3 | 1.2m | 10m | 1PLY | 50.4 |
| 4 | 1.2m | 10m | 1PLY | 68.4 |
| 5 | 1.2m | 10m | 2PLY | 86.4 |
| 6 | 1.2m | 10m | 3PLY | 104.4 |
| 7 | 1.2m | 10m | 4PLY | 122.4 |
| 8 | 1.2m | 10m | 5PLY | 140.4 |
| 10 | 1.2m | 10m | 8PLY | 180 |
| 12 | 1.2m | 10m | 10PLY | 216 |
| 15 | 1.2m | 10m | ≥10PLY | 270 |
| 20 | 1m | 2m | ≥10PLY | 60 |
| 25 | 1m | 2m | ≥10PLY | 75 |
| 30 | 1m | 2m | ≥10PLY |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Tianjin China Rubber Co.,Ltd supplies a precision-formulated electrically conductive rubber sheet composed of SBR blended with high-dispersion carbon black. This material offers stable electrical conductivity while maintaining elasticity, mechanical strength, and chemical resistance under normal operating conditions.
Designed for environments requiring electrostatic control, the electrically conductive rubber sheet is ideal for ESD-sensitive areas, cleanrooms, electronic component manufacturing zones, and EMI shielding applications. Its consistent resistance range supports static discharge control across large surfaces and mechanical contact points.
SBR matrix ensures durability and wear resistance, while the carbon black infusion provides uniform electrical pathways throughout the sheet. This electrically conductive rubber sheet can be die-cut or fabricated into pads, gaskets, liners, or grounding mats as needed. Applications benefit from its flexibility, tear resistance, and non-corrosive surface behavior—making it suitable for use in flooring, tabletop liners, and equipment bases where charge build-up must be neutralized efficiently.
