Product
Custom thickness 1.2m width coin pattern flooring
Polymer: Synthetic rubber
Color: Black
Thickness: 3mm - 10mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: one side is smooth, one sides with cloth
Customizable Shapes: Roll / Sheet

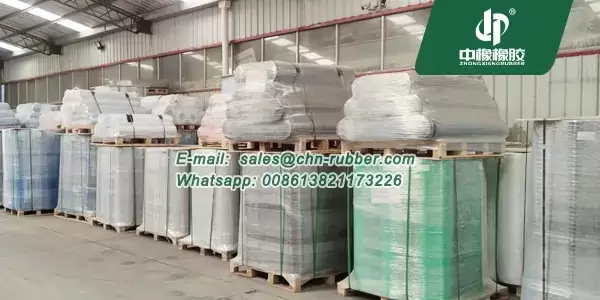

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Antislip Rubber Sheet Performance Parameters & Specification

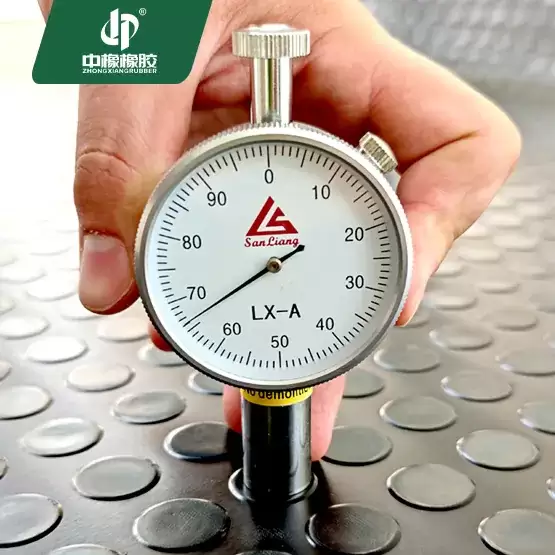

| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20114AC-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
| Thickness | Design | Width | Length/Roll | Weight |
| 3mm |
|
1.2m | 10m | 50.40kgs/m² |
| 3mm | 1.5m | 10m | 63.00kgs/m² | |
| 3mm | 1.6m | 10m | 67.20kgs/m² | |
| 3mm | 1.8m | 15m | 113.40kgs/m² | |
| 3mm | 2.0m | 15m | 126.00kgs/m² | |
| 5mm |
|
1.2m | 10m | 86.40kgs/m² |
| 5mm | 1.5m | 10m | 108.00kgs/m² | |
| 5mm | 1.6m | 15m | 172.80kgs/m² | |
| 5mm | 1.8m | 10m | 129.60kgs/m² | |
| 5mm | 2.0m | 20m | 288.00kgs/m² |
* Color/size can be produced according to needs. For more specifications, please contact us

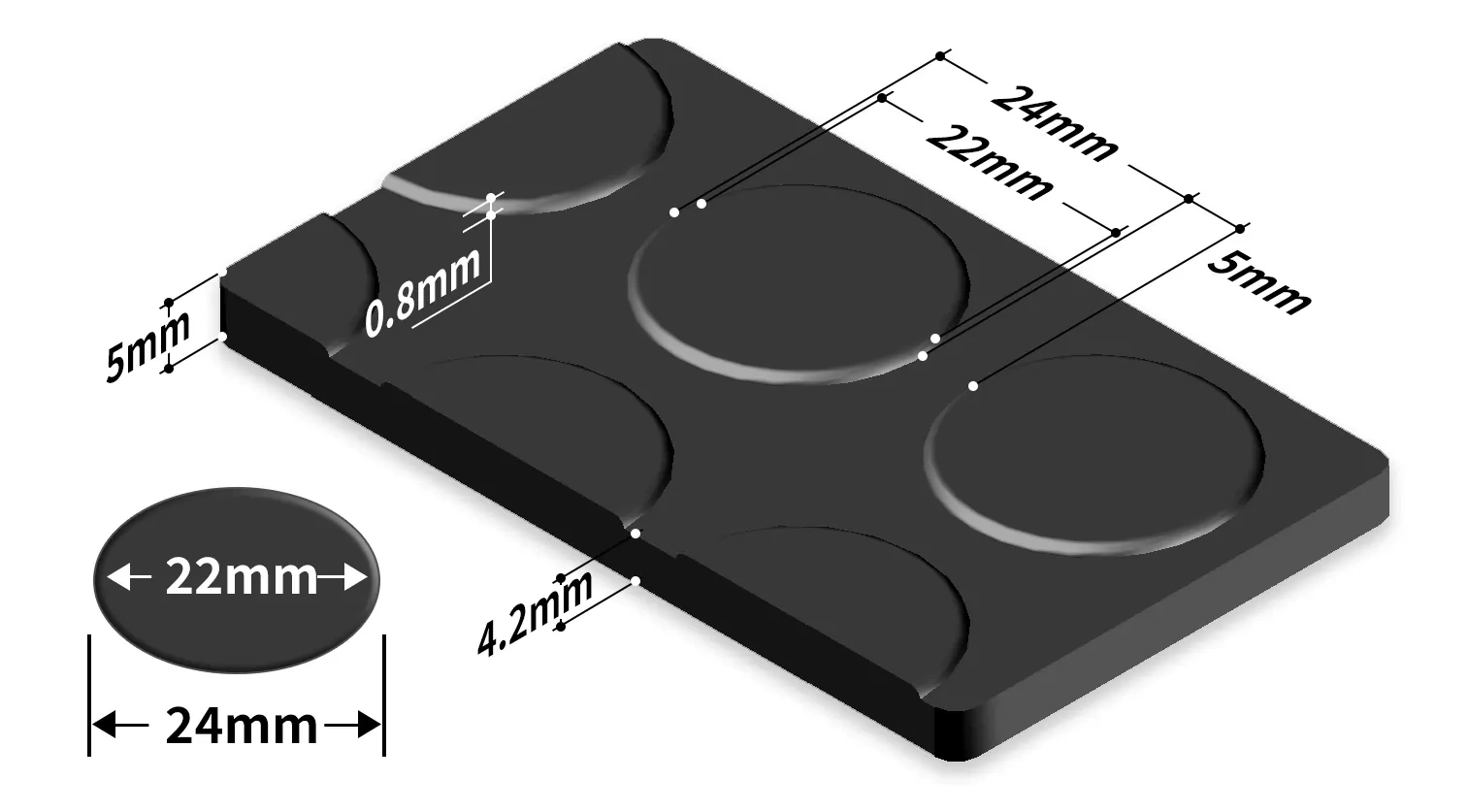

* Regarding the dimensions in the Design, please refer to the final production dimensions for reference only.
* There may be a slight difference between the weight of a single roll and the final delivery weight, which shall be subject to the final delivery purchase weight.

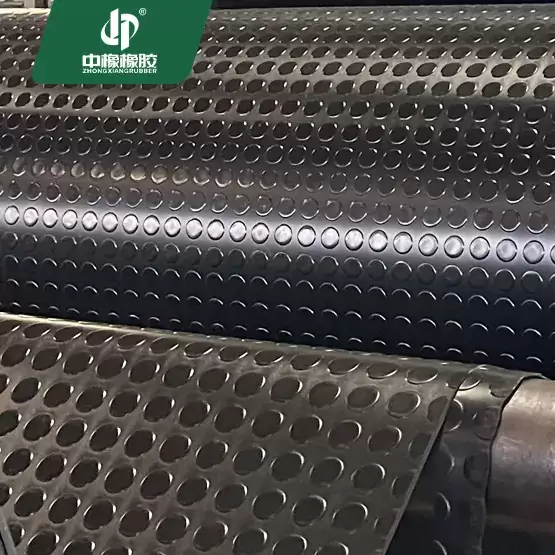

Coin pattern flooring offers a functional surface ideal for environments requiring improved traction and wear resistance. Its signature circular texture not only enhances grip but also contributes to a professional, organized look in industrial, automotive, and commercial interiors.
The structure of the rubber material provides effective resistance to abrasion, scuffing, and general mechanical stress. The coin pattern evenly distributes pressure from foot traffic, equipment, and trolleys, making it suitable for flooring renovation or protection in demanding workspaces.
Black coin pattern flooring also reduces maintenance time, as its surface resists dirt accumulation and moisture. Whether used in production areas, trailers, or walkways, the patterned design contributes to safety while maintaining consistent floor performance across varied applications.
