Product
Black broad rib mat 5mm 1.2m width 10m length
Polymer: Synthetic rubber
Color: Black
Thickness: 3mm - 10mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: one side is smooth, one sides with cloth
Customizable Shapes: Roll / Sheet
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Antislip Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20114AG-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
| Thickness | Design | Width | Length/Roll | Weight |
| 3mm |
|
1.2m | 10m | 50.40kgs/m² |
| 3mm | 1.5m | 10m | 63.00kgs/m² | |
| 3mm | 1.6m | 10m | 67.20kgs/m² | |
| 3mm | 1.8m | 15m | 113.40kgs/m² | |
| 3mm | 2.0m | 15m | 126.00kgs/m² | |
| 5mm |
|
1.2m | 10m | 86.40kgs/m² |
| 5mm | 1.5m | 10m | 108.00kgs/m² | |
| 5mm | 1.6m | 15m | 172.80kgs/m² | |
| 5mm | 1.8m | 10m | 129.60kgs/m² | |
| 5mm | 2.0m | 20m | 288.00kgs/m² |
* Color/size can be produced according to needs. For more specifications, please contact us
* Regarding the dimensions in the Design, please refer to the final production dimensions for reference only.
* There may be a slight difference between the weight of a single roll and the final delivery weight, which shall be subject to the final delivery purchase weight.

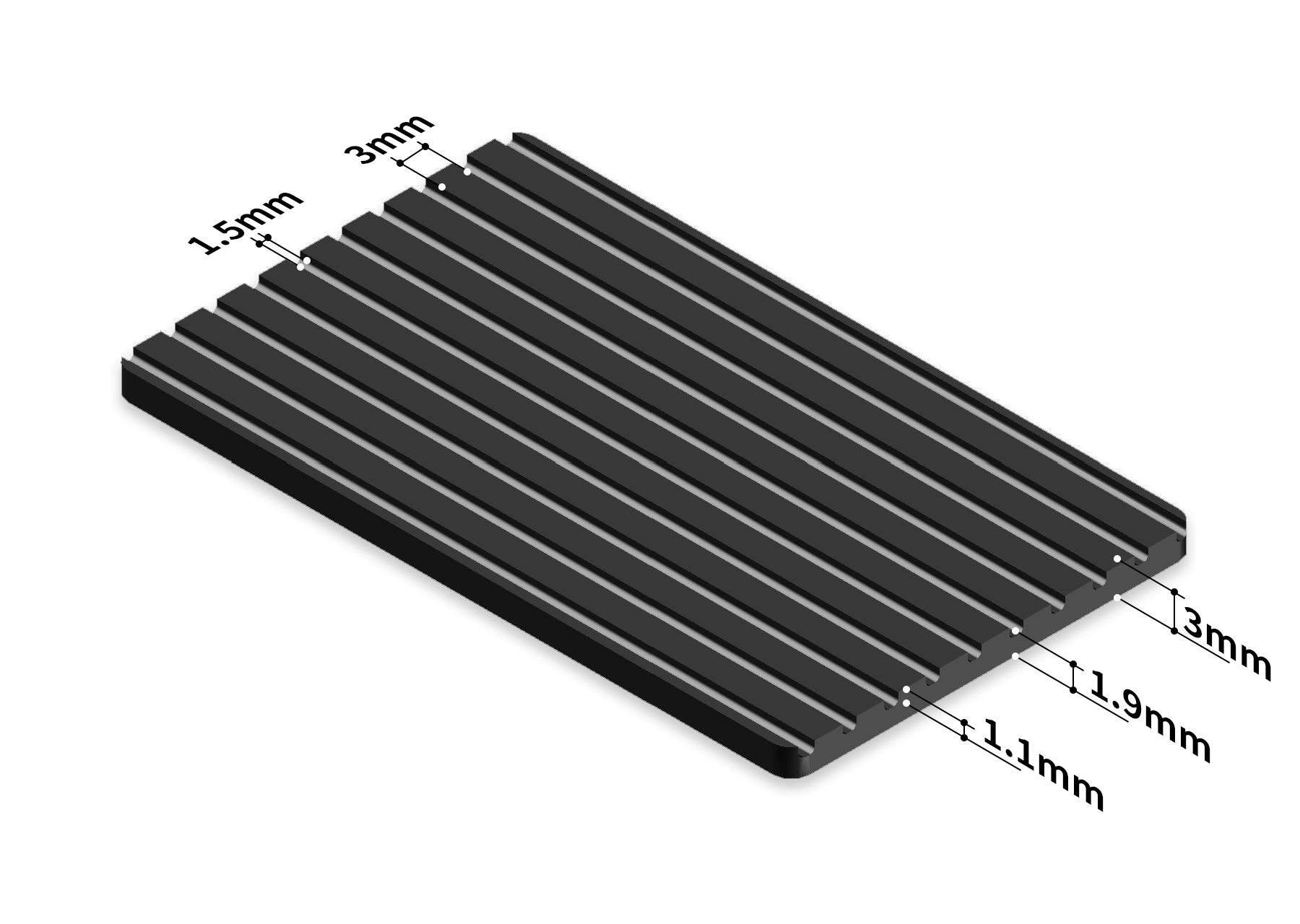

The broad rib mat features pronounced, evenly spaced ribs that run longitudinally along the surface, offering enhanced grip and traction in high-traffic areas. Its structured rubber surface is engineered to help prevent slips while allowing debris and moisture to channel through the grooves, reducing maintenance and improving workplace safety.
Broad rib mat products are widely applied in factories, corridors, machine rooms, trailers, and other commercial environments requiring heavy-duty flooring. The increased rib width offers a balance of grip and comfort underfoot, while the dense rubber construction resists abrasion and basic chemicals.
Easy to install and cut to fit specific layouts, each broad rib mat roll comes in customizable dimensions, catering to both narrow and large flooring areas. Whether used as permanent flooring or as temporary protection, it provides long-term surface resilience.
