Product

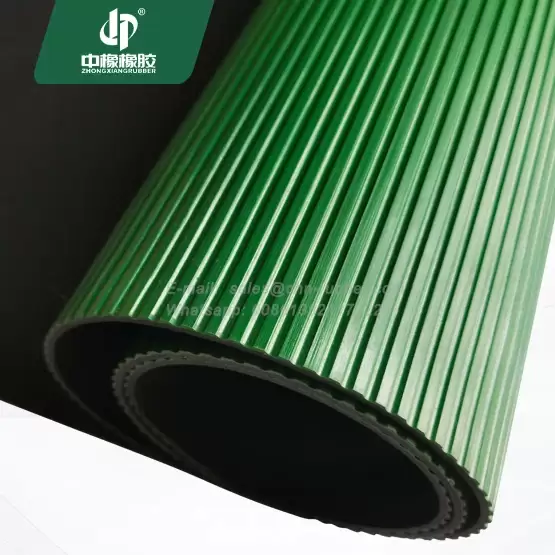

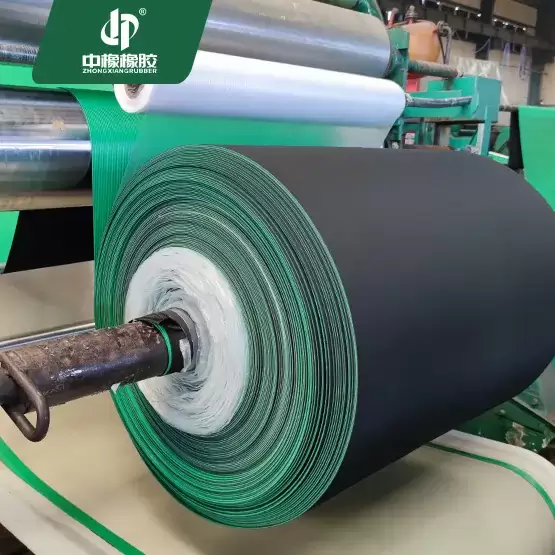

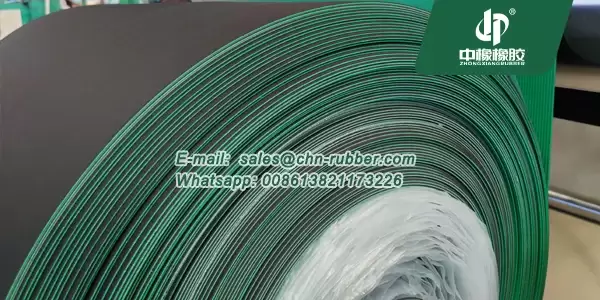

Board wide rib grooved rubber mat roll
Polymer: Synthetic rubber
Color: Green
Thickness: 3mm - 10mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

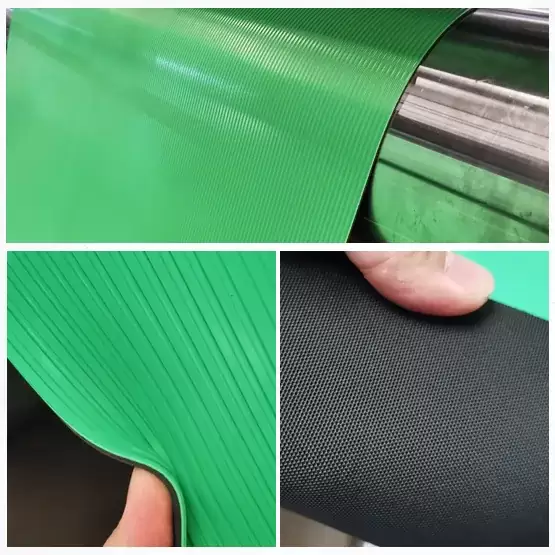

Surface: one side is smooth, one sides with cloth
Customizable Shapes: Roll / Sheet
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Antislip Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20114AG-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

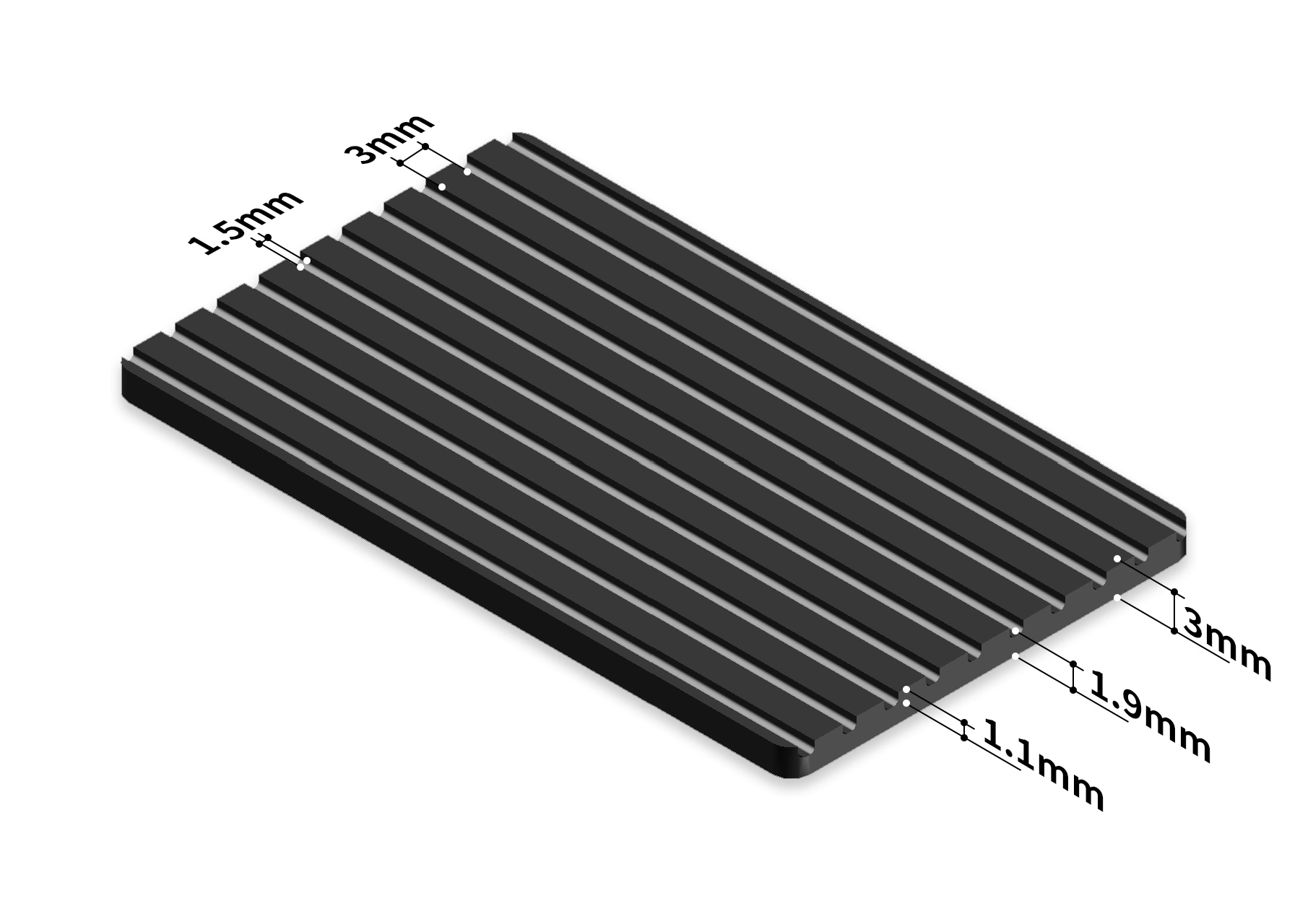

| Thickness | Design | Width | Length/Roll | Weight |
| 3mm |
|
1.2m | 10m | 50.40kgs/m² |
| 3mm | 1.5m | 10m | 63.00kgs/m² | |
| 3mm | 1.6m | 10m | 67.20kgs/m² | |
| 3mm | 1.8m | 15m | 113.40kgs/m² | |
| 3mm | 2.0m | 15m | 126.00kgs/m² | |
| 5mm |
|
1.2m | 10m | 86.40kgs/m² |
| 5mm | 1.5m | 10m | 108.00kgs/m² | |
| 5mm | 1.6m | 15m | 172.80kgs/m² | |
| 5mm | 1.8m | 10m | 129.60kgs/m² | |
| 5mm | 2.0m | 20m | 288.00kgs/m² |
* Color/size can be produced according to needs. For more specifications, please contact us
* Regarding the dimensions in the Design, please refer to the final production dimensions for reference only.
* There may be a slight difference between the weight of a single roll and the final delivery weight, which shall be subject to the final delivery purchase weight.
Grooved rubber mat with board wide ribs is crafted for environments where both grip and surface drainage are essential. Its medium-width rib profile strikes a balance between traction and ease of cleaning, making it a preferred solution across warehouses, workshops, service stations, and production areas. The layout of grooves allows water, oil, and debris to move away from the walking surface, reducing slip risks without retaining dirt.
Board wide rib rubber mats are manufactured using resilient rubber compounds that tolerate foot traffic, carts, and basic chemical contact. Their semi-rigid structure offers stability on a range of floor types while maintaining flexibility for easy installation or trimming. These grooved rubber mats help extend the life of concrete and tile surfaces by providing a cushioning barrier. Available in rolls with optional lengths and standard widths, they meet diverse installation needs—from wall-to-wall coverage to narrow aisle protection. The design also suits automotive use, providing slip-resistant flooring for vans, trucks, and trailers.
Key Features
Medium-width ribs for optimal grip and drainage
Grooved surface channels fluids and dust away from footpath
Suitable for both stationary and mobile applications
Heavy-duty rubber construction with customizable size options
Compatible with commercial and transport flooring
