Industrial Rubber Sheet Factory – Tianjin China Rubber Co., Ltd.
Your premier B2B direct manufacturing partner for heavy-duty industrial rubber sheets, anti-slip matting, switchgear insulating mats, and engineered rubber products. Operating a 68,000m² facility with 56 continuous Rotocure lines and 30,000+ tons annual output.
Factory At A Glance
- Facility Area: 68,000 m² Owned Workshop
- Vulcanization Lines: 56 Continuous Rotocure Units
- Thickness Range: 1,0mm – 50mm Precision Output
- Max Roll Width: Up to 2,000mm Continuous
- Global Exports: 50+ Countries (EU, US, Middle East, LatAm)
Why Source Directly From Our Rubber Sheet Manufacturing Facility?
Bypass middleman markups and technical communication barriers. Tianjin China Rubber Co., Ltd. delivers
consistent material formulas, guaranteed tensile properties, and certification certificate.

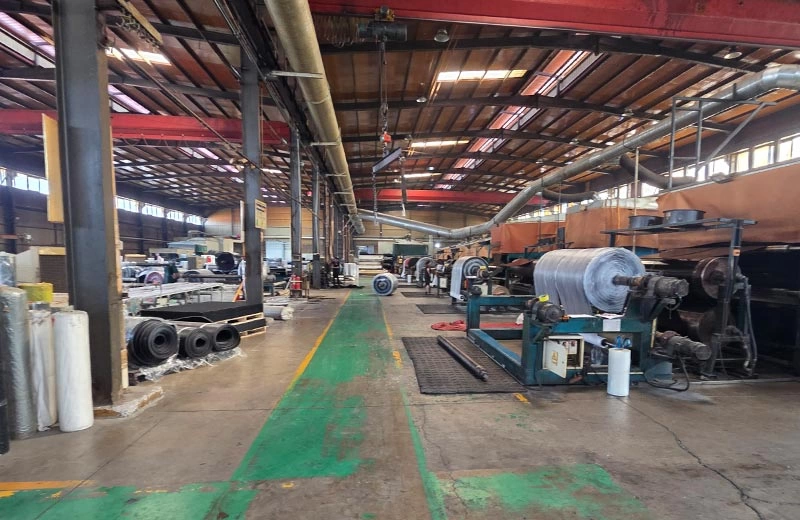

68,000m² Scale Facility
Equipped with internal Banbury compounding mixers, 56 Rotocure lines, and automated hydraulic presses, enabling reliable large-volume monthly shipments with stable 15-day delivery cycles.
Full Elastomer Portfolio
Formulating commercial & premium grades for SBR, NBR (Oil Resistant), EPDM (Weather Resistant), Silicone (Food Grade / High Temp), Viton/FKM, and specialized rubber sheet profile stock.
Batch-Level Lab Verification
In-house testing for tensile strength, hardness, and thermal aging performance is conducted. Third-party inspections can also be arranged.
Custom Fabrication Services
Providing 1-ply / 2-ply fabric insertions (nylon, polyester, cotton), anti-slip checker/diamond surface patterns, self-adhesive backing (3M tape), and precision CNC die-cut gaskets.
Comprehensive Rubber Sheet Specification & Technical Data Matrix
All physical properties are verified in accordance with ASTM international test methods:
| Polymer Grade | Hardness ASTM D2240 |
Tensile Strength ASTM D412 |
Elongation ASTM D412 |
Working Temp | Primary Industrial Resistance | Action |
|---|---|---|---|---|---|---|
| Commercial SBR Sheet | 65 ± 5 Shore A | 3.0 – 4.0 MPa | ≥ 200% | -40°C to +70°C | General purpose flange sealing, impact pads | Inquire > |
| Oil Resistant NBR (Nitrile) | 65 ± 5 Shore A | 3.0 MPa | ≥ 200% | -35°C to +100°C | Fuel, hydraulic oil, lubricant & grease resistant | Inquire > |
| Weatherproof EPDM Sheet | 65 ± 5 Shore A | 2.0/2.5 MPa | ≥ 230% | -40°C to +70°C | Ozone, UV weathering, hot water & steam | Inquire > |
| Chemical Viton / FKM Sheet | 70 ± 5 Shore A | 7.0 – 8.0 MPa | ≥ 300% | -20°C to +250°C | Strong acids, aggressive solvents, high heat | Inquire > |
Engineered Applications Across Global Industries
Our rubber sheet and PTFE sealing products are deployed in harsh operating environments worldwide:
1. Pipeline & Flange Gaskets
Custom cut NBR and EPDM flange gaskets used in oil pipelines, chemical processing plants, and water treatment systems to prevent fluid leakage under pressure.
2. Power Switchgear Insulation
Dielectric rubber matting tested to IEC 61111 standards, protecting electrical engineers in high-voltage substations and transformer rooms.
3. Heavy Machinery Buffering
High-tensile SBR and fabric-reinforced rubber sheets serving as anti-vibration mounting pads and conveyor belt skirting in mining and construction machinery.
Quality Assurance & Export Packaging Protocol
We enforce rigorous export packing and testing protocols to guarantee
goods arrive in prime condition across ocean transport.
1. Laboratory Inspection
Rheometer cure testing, tensile/elongation pulling, Shore A durometer checks, and oil swelling immersion for every batch.
2. Export Grade Wrapping
Rolls are wrapped in waterproof craft paper and PE film, secured onto sturdy wooden pallets with steel strapping to prevent transport damage.
3. Customs Compliance
Complete documentation suite including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Origin (Form E/CO).
